9.2 Serial Connector
The serial connector (9-pin D-SUB male connector) is laid out on the host interface side of the FP5.

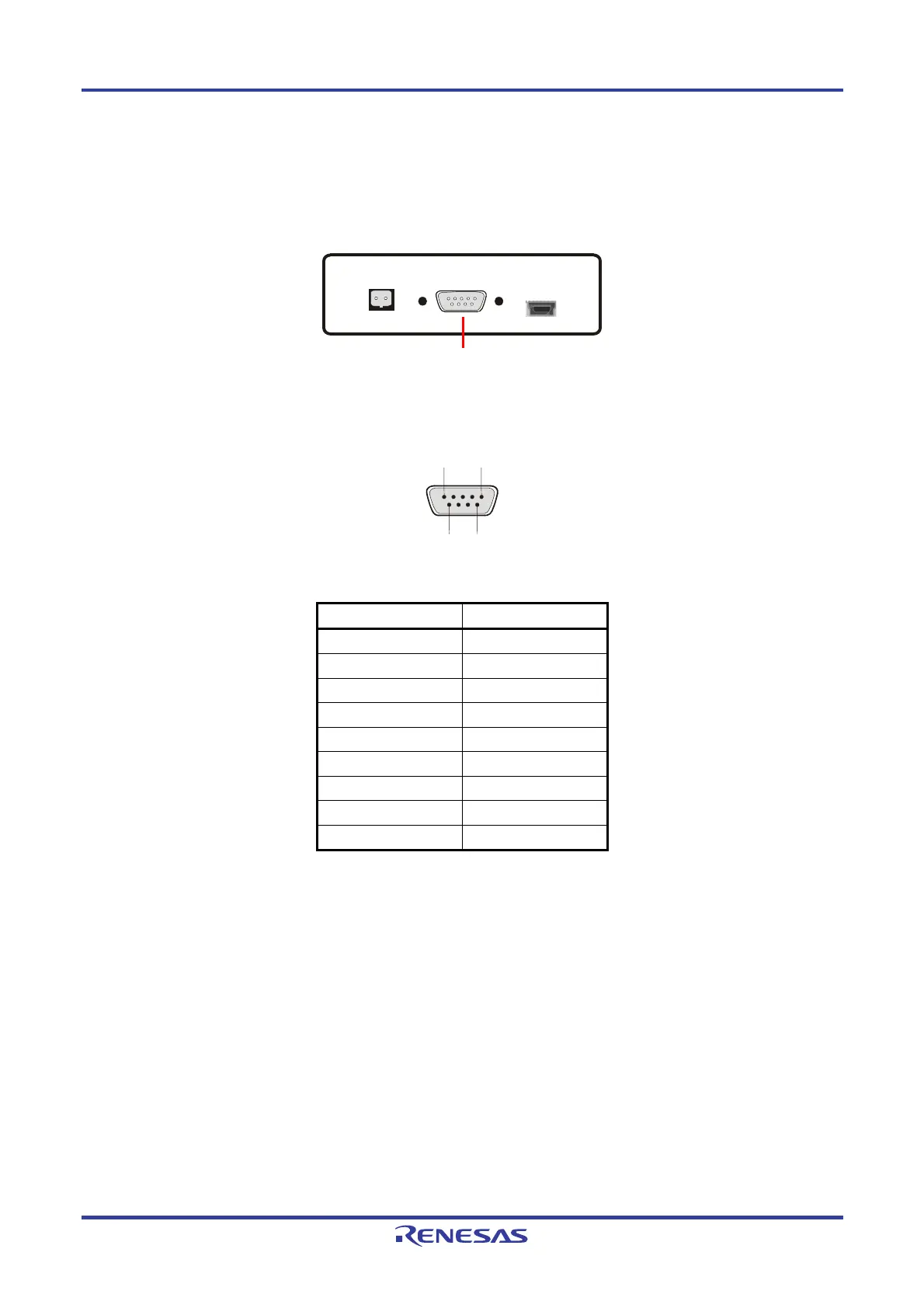

Figure 9-3. Serial Connector <FP5 Host Interface Side>
Figure 9-4. Serial Connector Pin Assignment
15
96
Table 9-1. Serial Connector Pin Configuration
Serial Connector Signal Name
1 NC
2 RxD
3 TxD
4 NC
5 V
SS
6 NC
7 RTS
8 CTS
9 NC
Part number of serial connector (9-pin D-SUB male connector): 070430MB009G200ZU (Suyin Connector Corp.)
Serial connector
