PG-FP5 CHAPTER 9 CONNECTORS AND CABLES
R20UT0008EJ0400 Rev. 4.00 Page 186 of 240
Jul 15, 2010
9.2.1 Serial cable
The host cable is a standard shielded serial cable (crossed) approximately 3 meters long. The connectors on both
sides are 9-pin D-SUB female connectors. The following shows the connection.

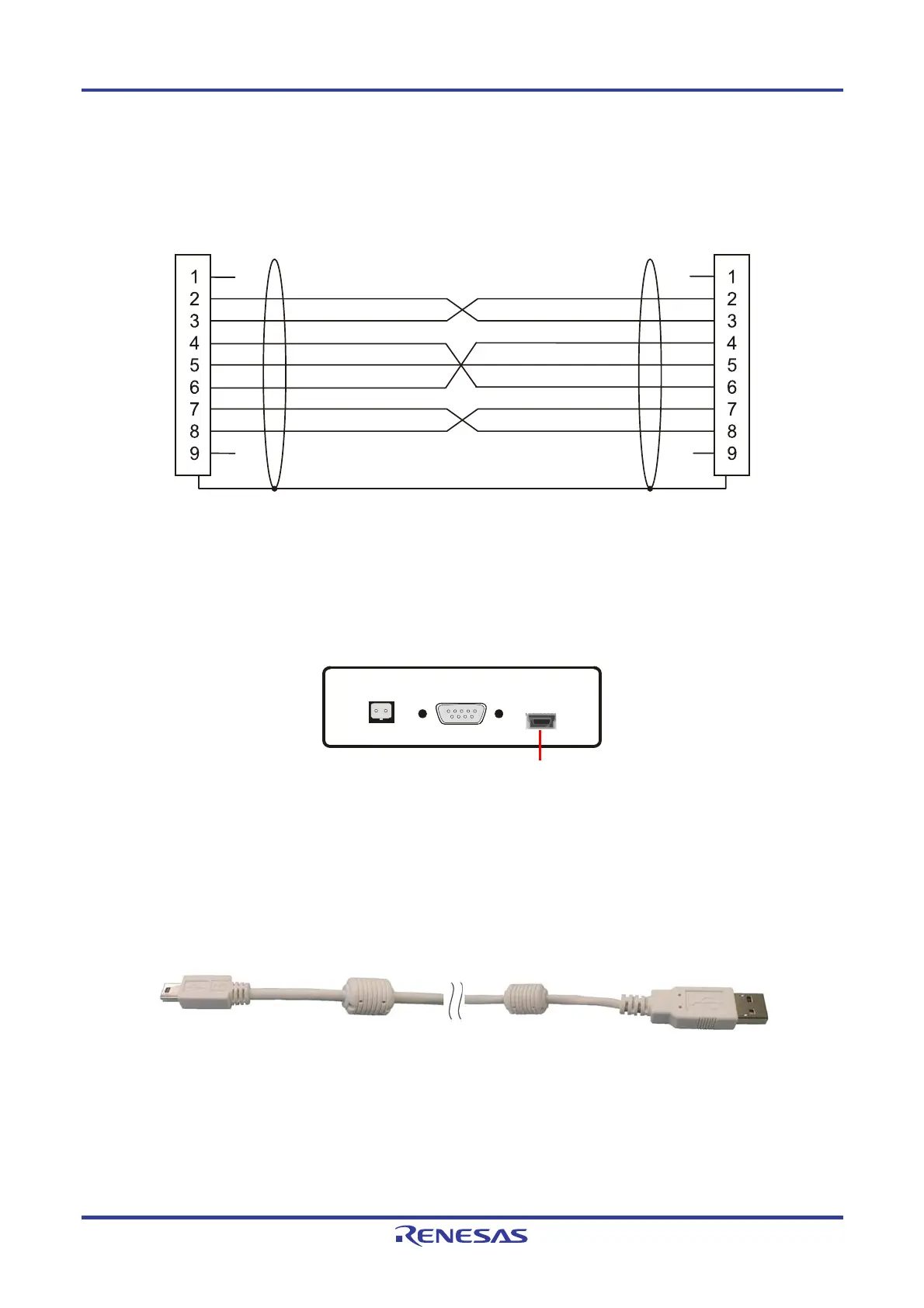

Figure 9-5. Serial Cable Connection
9.3 USB Connector
The mini-B type USB connector is laid out on the host interface side of the FP5.
Figure 9-6. USB Connector <FP5 Host Interface Side>
Part number of mini-B USB connector: UX60A-MB-5ST (made by Hirose Electric Co., Ltd.)
9.3.1 USB cable
The USB cable is approximately 2 meters long. The cable is equipped with a USB mini-B type connector and USB type
A connector.
Figure 9-7. GND Cable External View
USB connector
USB mini-B type
USB type A
