PG-FP5 CHAPTER 9 CONNECTORS AND CABLES
R20UT0008EJ0400 Rev. 4.00 Page 189 of 240
Jul 15, 2010
Remark The following are the recommended connectors to be connected to 16-pin 2.54 mm pitch multipurpose female
connectors.
• HIF3FC-16PA-2.54DS (made by Hirose Electric Co., Ltd., right angle type)
• HIF3FC-16PA-2.54DSA (made by Hirose Electric Co., Ltd., straight type)
• 7616-5002PL (Sumitomo 3M Limited, right angle type)
• 7616-6002PL (Sumitomo 3M Limited, straight type)
When using a self-made cable because the supplied cable cannot be used due to the target system specifications, the
cable characteristics should be equivalent or higher than those of the supplied cable.
Note that communication may be performed at high speed depending on the communication settings. Consequently,
communication errors may occur and causing abnormal operation.
9.5 GND Connector
The banana jack GND connector is laid out on the target connector side of the FP5.

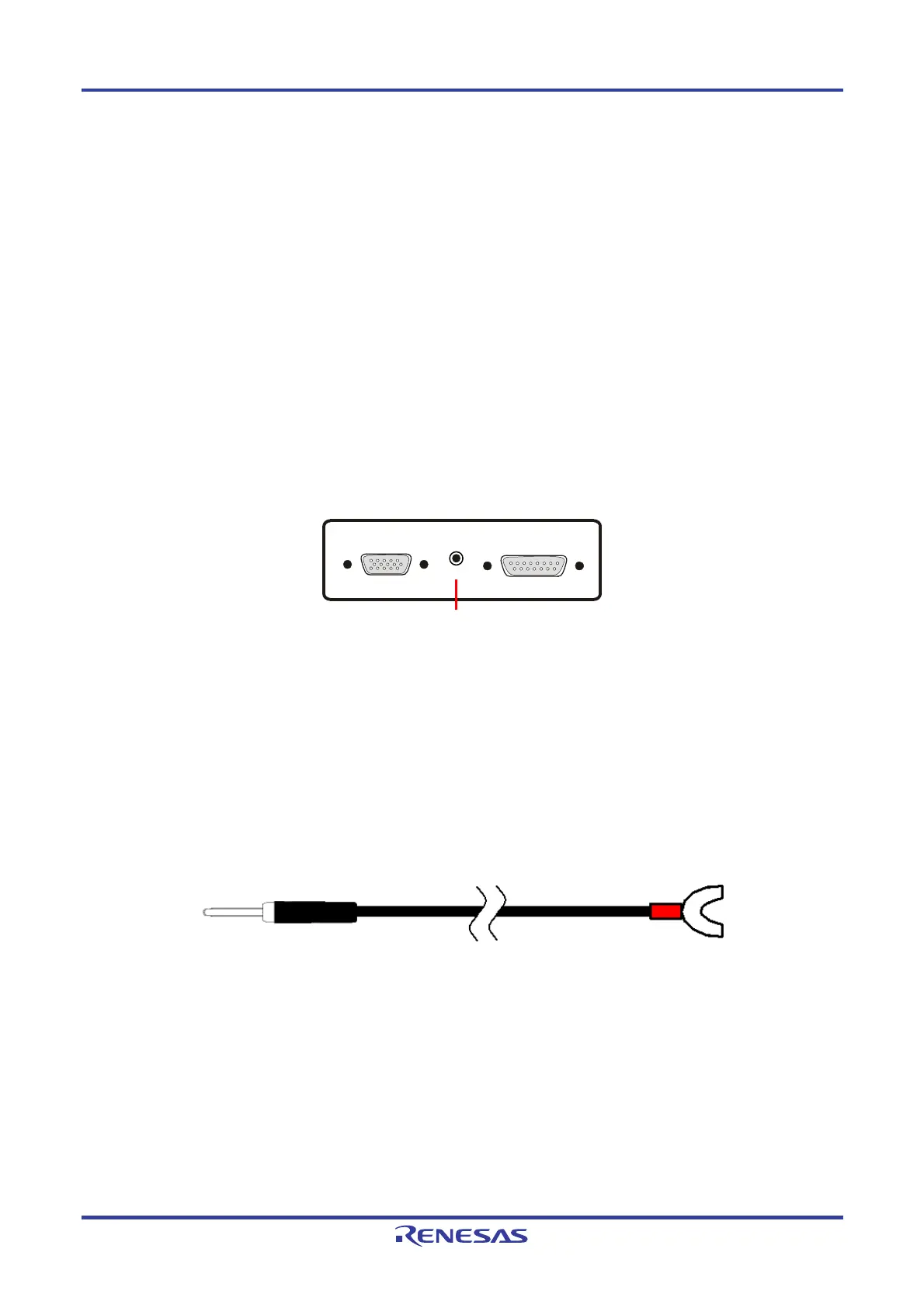

Figure 9-13. GND Connector <FP5 Target Connector Side>
Remark Part number of GND connector (banana jack): PB4 (HIRSCHMANN)
9.5.1 GND cable
The host cable is a standard shielded GND cable approximately 1 meter long. The GND cable is equipped with a
banana jack and a spade terminal.
Caution The FP5 and target system may be damaged if the voltage between the FP5 GND and the target
system GND is different. Use the GND cable to match the voltage before connecting the target cable.
Figure 9-14. GND Cable Outline
Remark Part number of banana jack: TJ-2167 (made by Sato Parts Co., Ltd.)
Part number of spade terminal: BPF1.25-3 (red) (Daido Solderless Terminals Mfg. Co., Ltd.)
GND connector
Banana Jack Spade terminal
