Renesas PG-FP5 User Manual

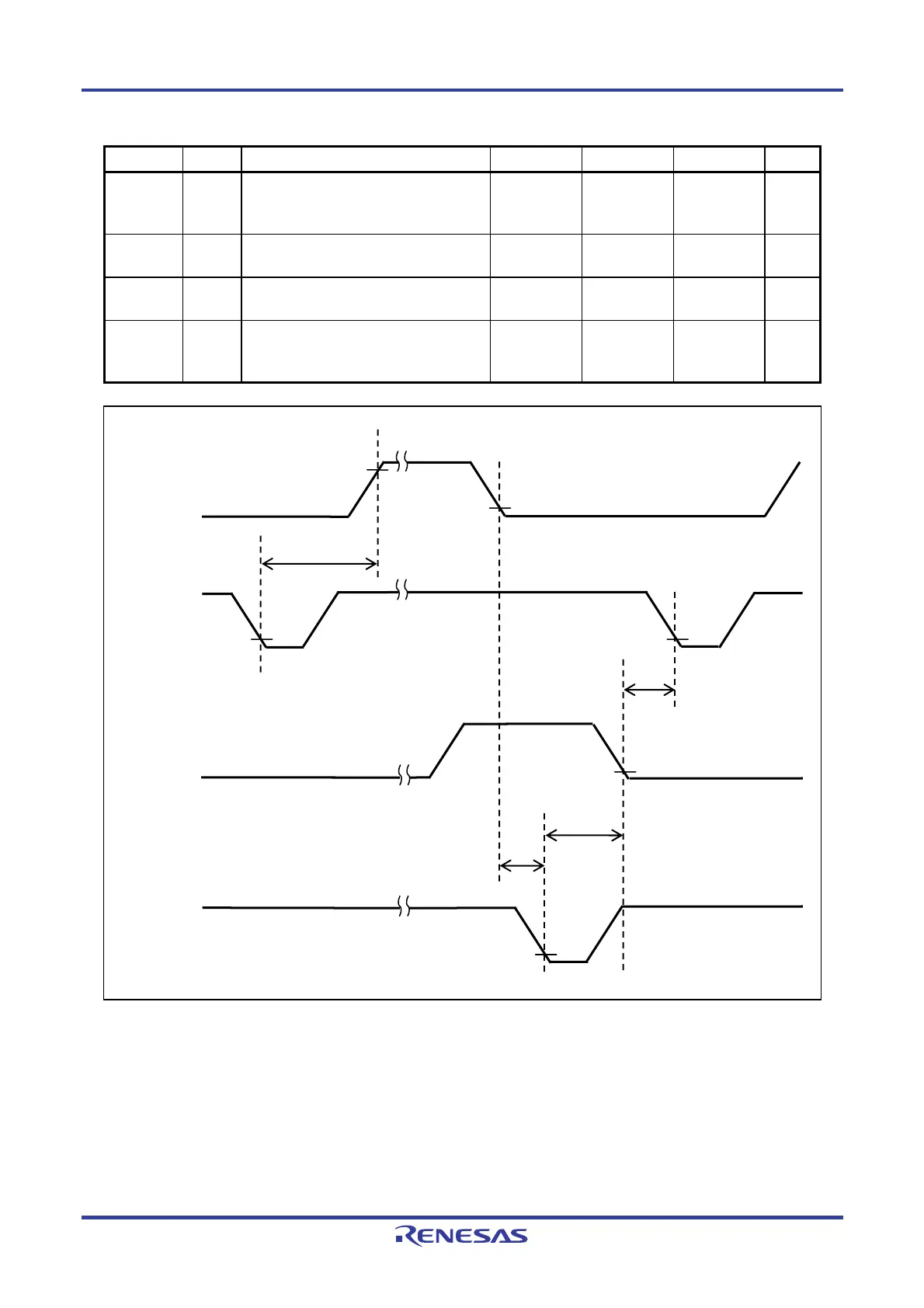

PG-FP5 APPENDIX D ELECTRICAL SPECIFICATIONS OF REMOTE INTERFACE
R20UT0008EJ0400 Rev. 4.00 Page 227 of 240
Jul 15, 2010
(2/2)
Pin name Symbol Parameter or Conditions MIN. TYP. MAX. Unit
tPINBU
Time from the fall of the VRF, START, or
ENTER signal until the rise of the BUSY
signal
50 ms
tPBUIN
Time from the fall of the BUSY signal until
the CLEAR signal can be input
1 ms
tPCLPE
Time from the fall of the CLEAR signal until
the fall of the PASS or ERROR signal
50 ms
tPPEIN
Time from the fall of the PASS or ERROR
signal until the VRF, START, or ENTER
signal can be input
1 ms
BUS
Y
t PBUIN
t PCLPE
t PINBU
PASS
ERROR
ENTER
START
VRF
t PPEIN
CLEAR
