PG-FP5 CHAPTER 4 PROGRAMMING GUI USAGE
R20UT0008EJ0400 Rev. 4.00 Page 48 of 240
Jul 15, 2010

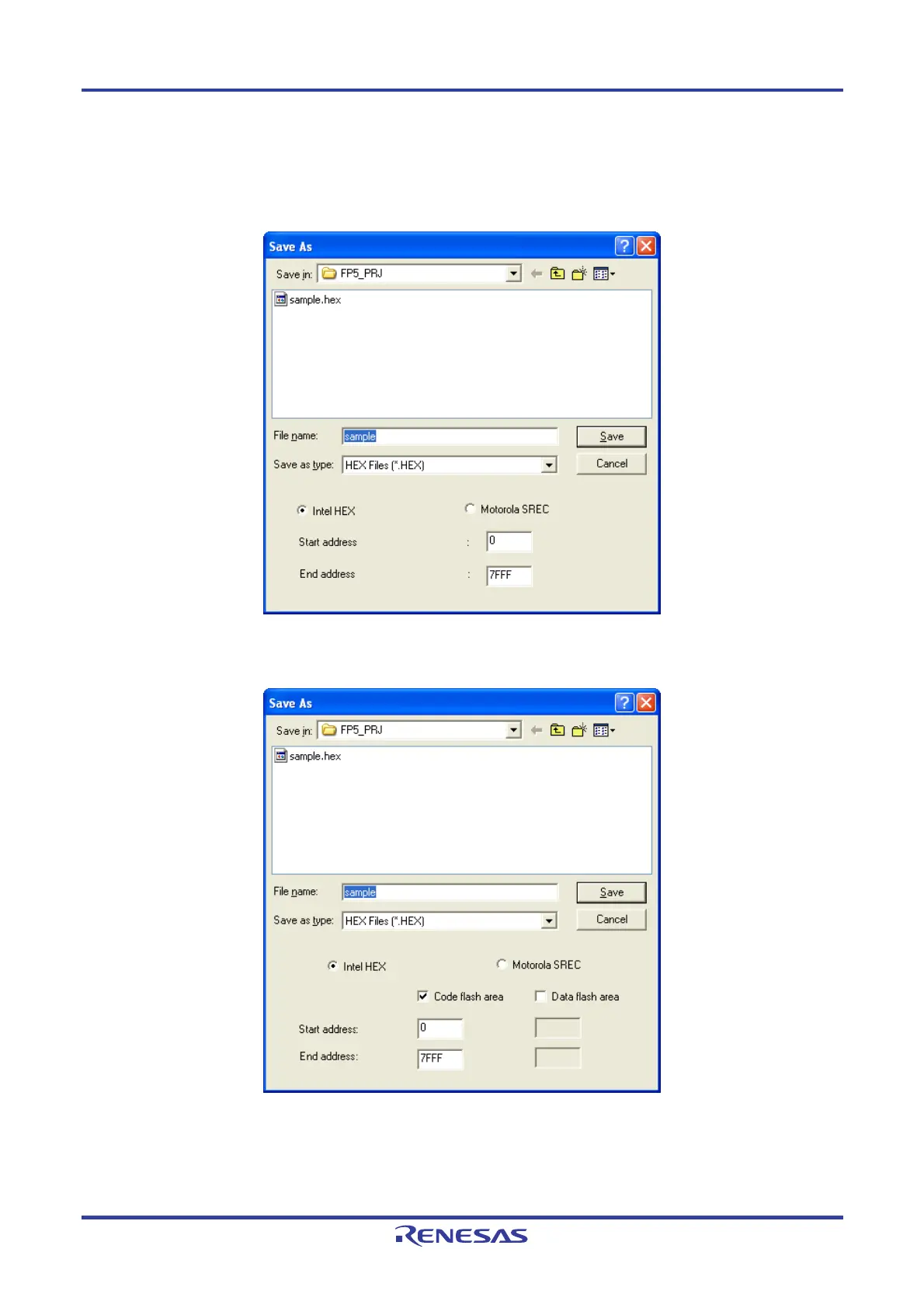

Figure 4-8. [Save As] Dialog Box of HEX Editor
(a) The downloaded PR5 file is for a target device that does not support data
flash
(b) The downloaded PR5 file is for a target device that supports data flash
Besides the file name and folder location, a start address and an end address for the new file can be selected in the
[Save As] dialog box. The original start address and end address are displayed by default. Select the file radio button for
the format in which to save the data. Select the same format as that of the loaded file. Use of the saved file with other tool
products is not supported.
