PG-FP5
CHAPTER 4
PROGRAMMING GUI USAGE
R20UT0008EJ040
0 Rev. 4.00
Page 63 of 240
Jul 15, 2010

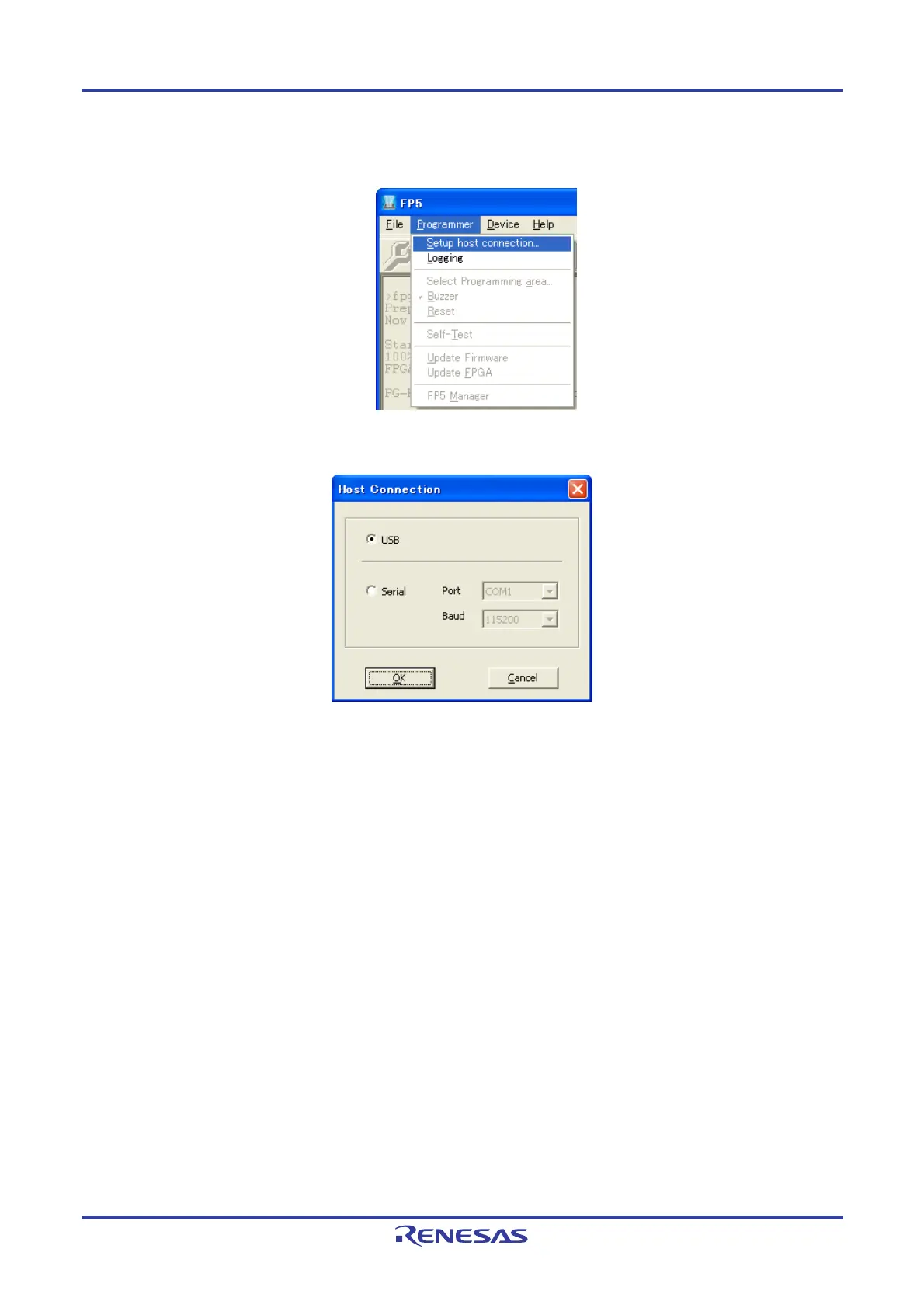

Figure 4-28. [Se
tup host connection] Command
Figure 4-29. [Host Conn
ection] Dialog Box
The main window is opened. “Board H/W V1, F
PGA
Vx” is
displaye
d in the action log windo
w; thus, the version
can be checked.
