PG-FP5 CHAPTER 4 PROGRAMMING GUI USAGE
R20UT0008EJ0400 Rev. 4.00 Page 77 of 240
Jul 15, 2010
When the OK button (button common to [Target], [Standard] and [Advanced] tabs) is clicked, program areas are
cleared and PR5 files, ESF files and program files are downloaded for the FP5. After that, the settings made on the
[Target], [Standard] and [Advanced] tabs are saved into an ESF file. These settings are reflected to the programming
parameter window. If there are settings which have not been updated, the files related to the settings are not downloaded.
When a program file is downloaded, the date and checksum (An empty area will be supplemented by FFh when it is
downloaded to FP5.) of that file are displayed in the action log window. The checksum is calculated as shown below. For
details of the arithmetic specifications, refer to Figure B-2 32-bit CRC Calculation Specifications.
Method: 32-bit CRC
Range: From the start to end addresses in the program file
When the Cancel button (button common to [Target], [Standard] and [Advanced] tabs) is clicked, the dialog box is
closed without saving changed settings on the [Target], [Standard] and [Advanced] tabs into an ESF file.

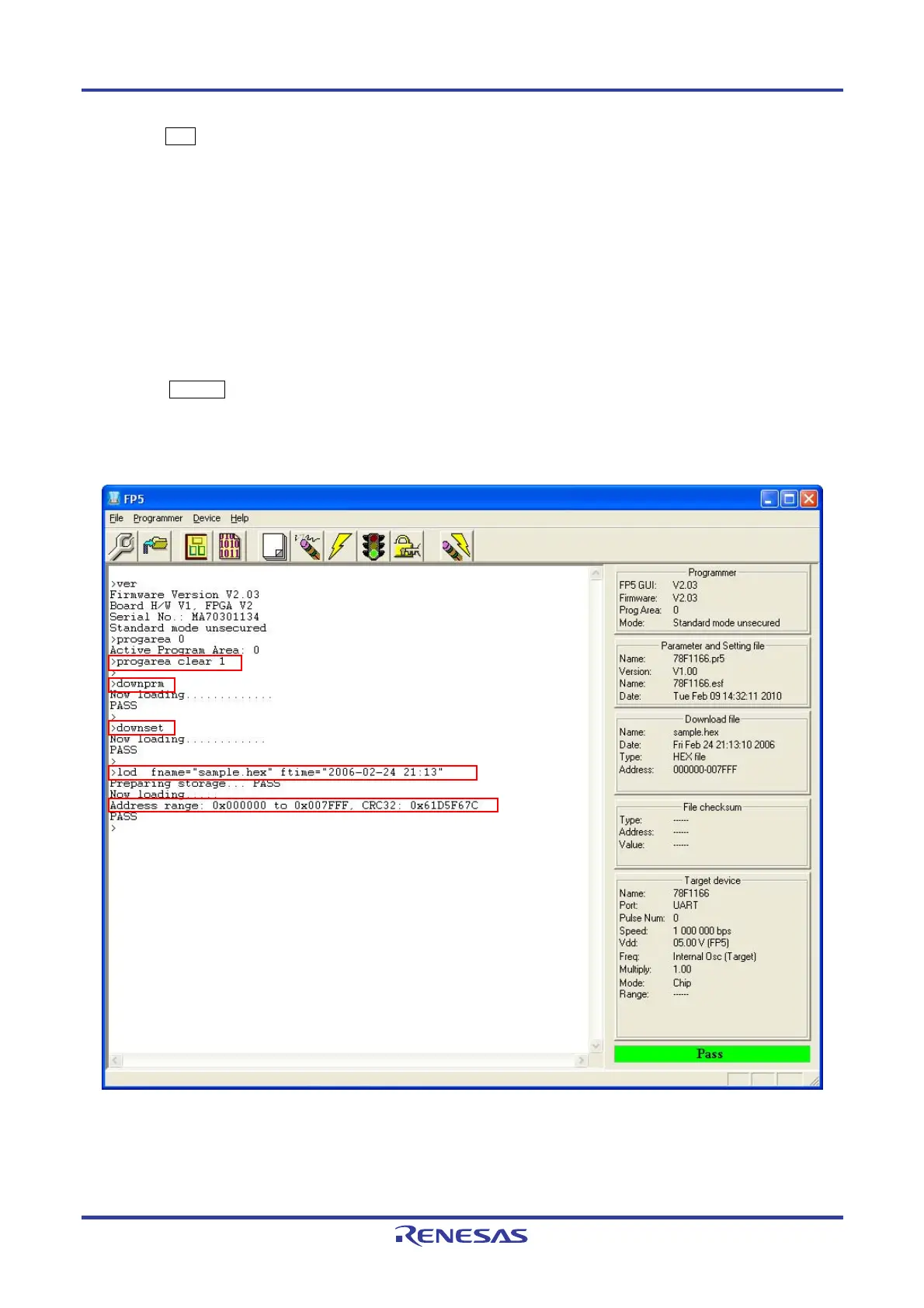

Figure 4-47. Clearing of Programming Area, PR5 Files and ESF Files, and Download of Program File
To Next Page
