PG-FP5 CHAPTER 4 PROGRAMMING GUI USAGE
R20UT0008EJ0400 Rev. 4.00 Page 79 of 240
Jul 15, 2010
<1> [Programming Area Setting] area
The FP5 has a 16 MB flash memory area for saving program files. This memory area can be used as four 4 MB
programming areas (Area 0 to Area 3) or eight independent 2 MB programming areas (Area 0 to Area 7).
Program files can be downloaded to each programming area, and which file, PR5 or ESF, is to be saved is
selectable in programming area units. That is, files can be individually downloaded in each programming area,
and the area used can also be selected individually.
In this area, the factor for dividing the programming area can be selected from 4 (4 MB per area) or 8 (2 per area).
If the division factor is changed, data on the programming area map is cleared. In addition, the valid
programming area can be selected. If the valid programming area is changed, the focused area in the
[Programming area map] area is also changed. By default, the division factor is set to 4 and programming area 0
is selected.

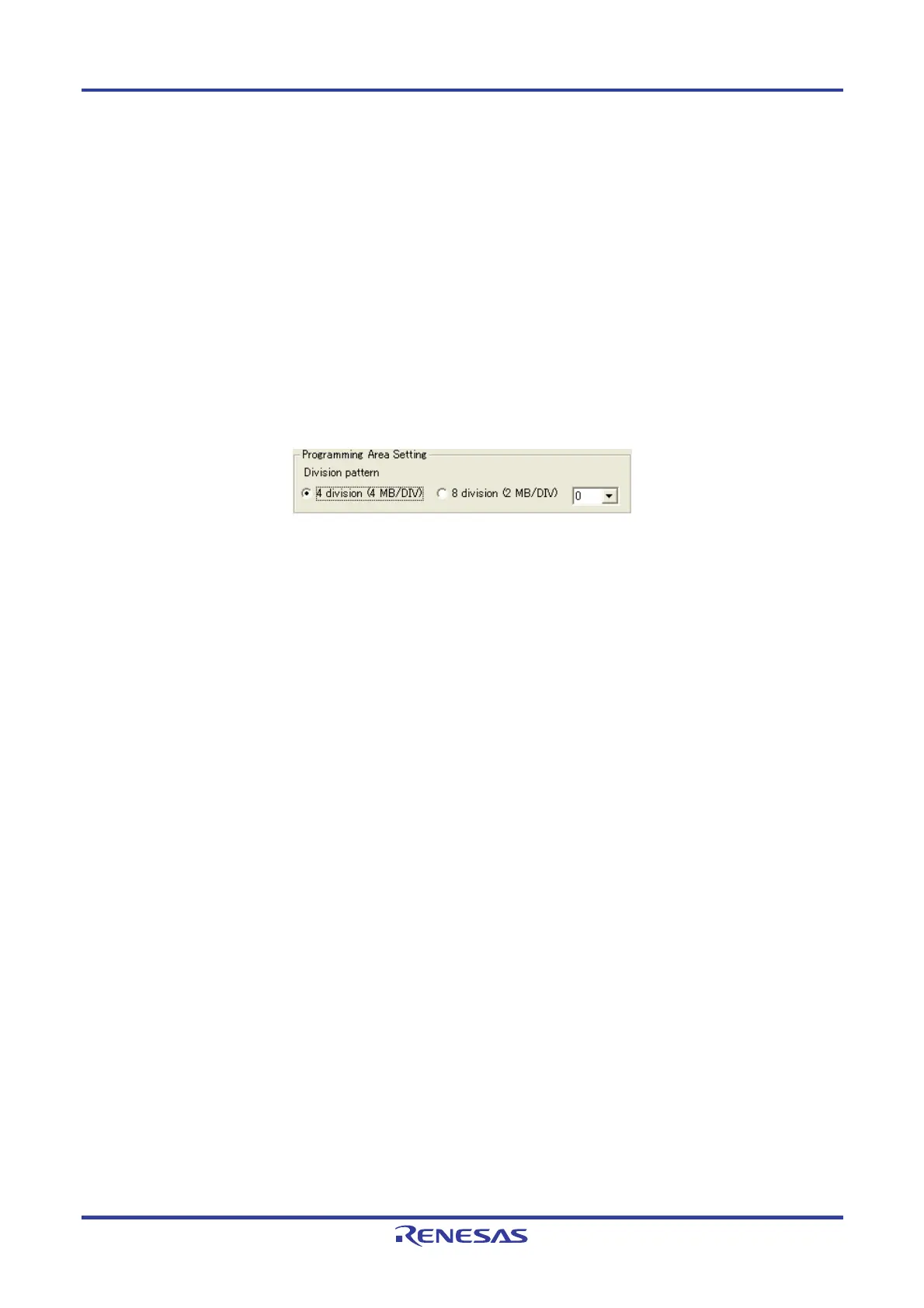

Figure 4-49. [Programming Area Setting] Area
[Division pattern] radio buttons
4 division (4 MB/DIV): The division factor is set to 4 (4 MB per area).
8 division (2 MB/DIV): The division factor is set to 8 (2 MB per area).
[Programming Area Setting] list
If “4 division (4 MB/DIV)” is selected, the valid programming area is selected from areas 0 to 3.
If “8 division (2 MB/DIV)” is selected, the valid programming area is selected from areas 0 to 7.
