Renesas PG-FP5 User Manual

PG-FP5 CHAPTER 4 PROGRAMMING GUI USAGE
R20UT0008EJ0400 Rev. 4.00 Page 97 of 240
Jul 15, 2010
voltage] area is selected. If selected, the written program can be automatically executed after each command is
finished.
[Enable target Reset] check box
When this box is checked, the RESET
¯¯¯¯¯¯
terminal will change to the input mode (Hi-Z). Immediately after execution
of the various commands, FP5 will detect the leading edge of the signal entering the RESET
¯¯¯¯¯¯
terminal. Until a
signal is detected, "Waiting for RESET..." will be displayed in the action log window, and the transition to the flash
memory programming mode will be put on hold. When the signal is detected, the transition will be resumed. And
right before each commands are completed, FP5 will detect the leading edge of the signal entering the RESET
¯¯¯¯¯¯
terminal. Until a signal is detected, "Waiting for RESET" will be displayed in the action log window, and the
termination of the flash memory programming mode will be put on hold. When the signal is detected, the flash
programming mode is ended.

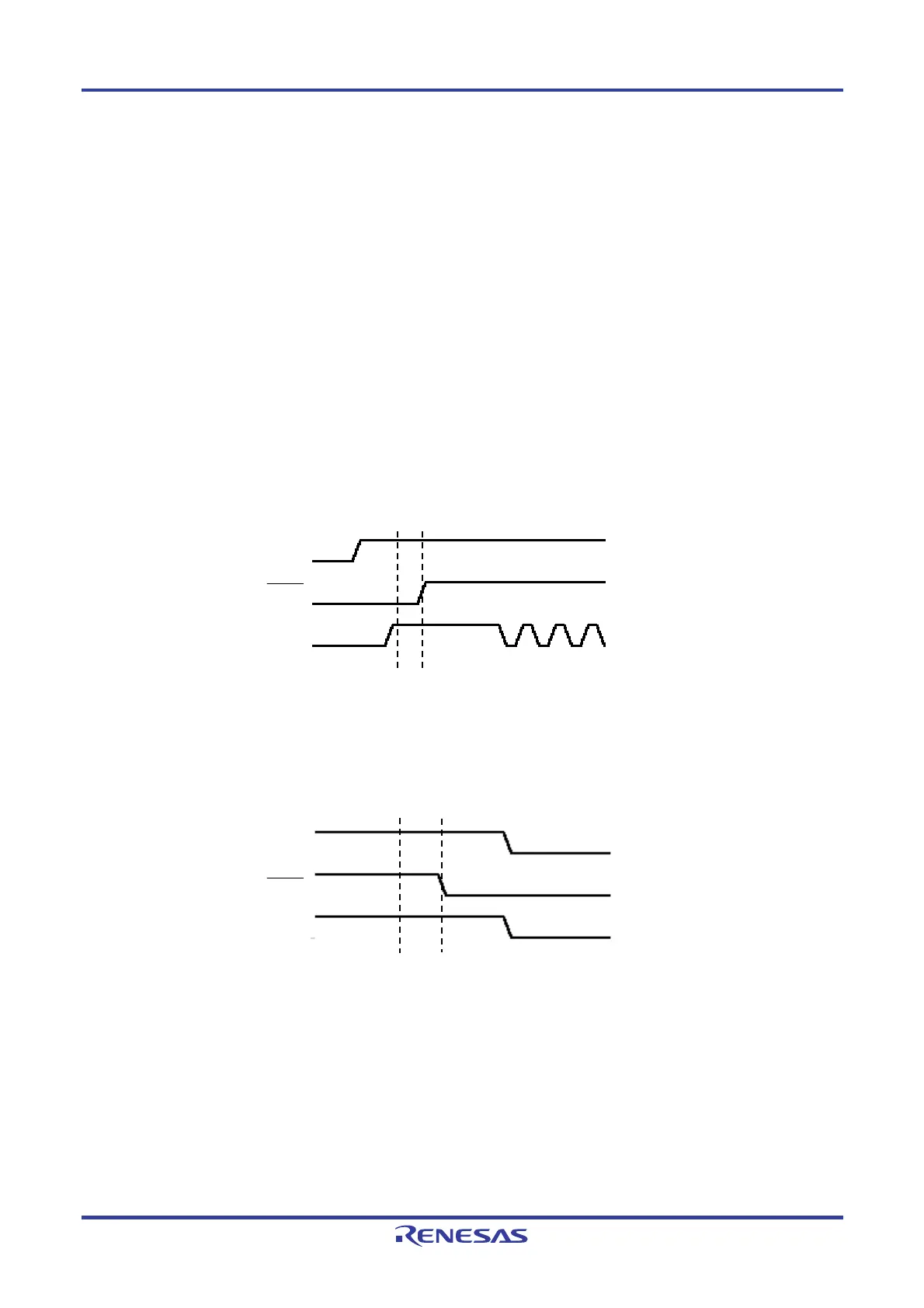

Figure 4-67 Detection Timing of Target Reset
(a) Transition to the flash memory programming mode
(1): Put the transition to the flash memory programming mode on hold.
(2): Detect the rising edge of the signal entering the RESET
¯¯¯¯¯¯
pin.
(b) Ending the flash memory programming mode
(1): Put the ending of the flash memory programming mode on hold.
(2): Detect the falling edge of the signal entering the RESET
¯¯¯¯¯¯
pin.
RESET
V
DD
FLMD0 or
V
PP
(1) (2)
RESET
V
DD
FLMD0 or
V
PP
(1) (2)
