6-14 Electrical Data Rexroth IndraDrive C
DOK-INDRV*-HCS02.1****-PR02-EN-P
The current-depending power dissipation of the power sections illustrated
in the following diagrams is composed of
• the losses of the mains-supply rectifier
• the switching losses of the inverter
HCS02.1E-W0012
y-axis: Power dissipation [W]
x-axis: Current (rms value) [A]

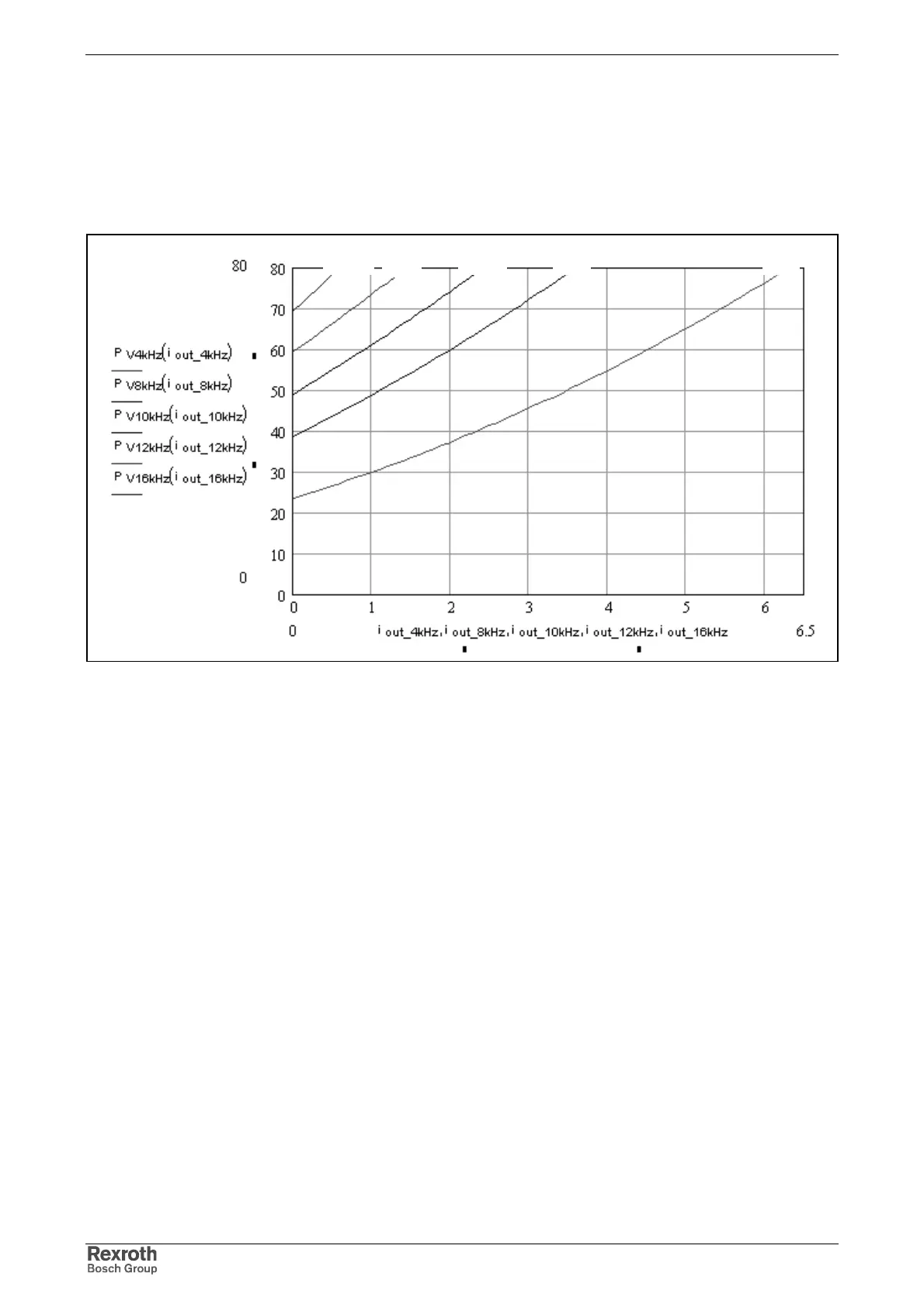

Fig. 6-14: Power dissipation power section HCS02.1E-W0012
16 kHz
12 kHz
8 kHz 4 kHz
10 kHz

REXROTH IndraDrive C Series Specifications

General

Protection Class	IP20
Communication Interfaces	EtherCAT, PROFIBUS, PROFINET, CANopen
Feedback Systems	Incremental Encoders, Absolute Encoders, Resolver
Ambient Temperature	0°C to 45°C
Cooling Method	Natural convection or forced air
Relative Humidity	5% to 85% (non-condensing)
Control Modes	Torque, position
