2.1.2 Connecting a Display
Connect a 4K/UHD or 2K/HD display to the HDMI Output port.
2.1.3 Connecting Audio Equipment
Optional: The QuadView UHDx provides HDMI, optical, and 2-channel analog audio output.

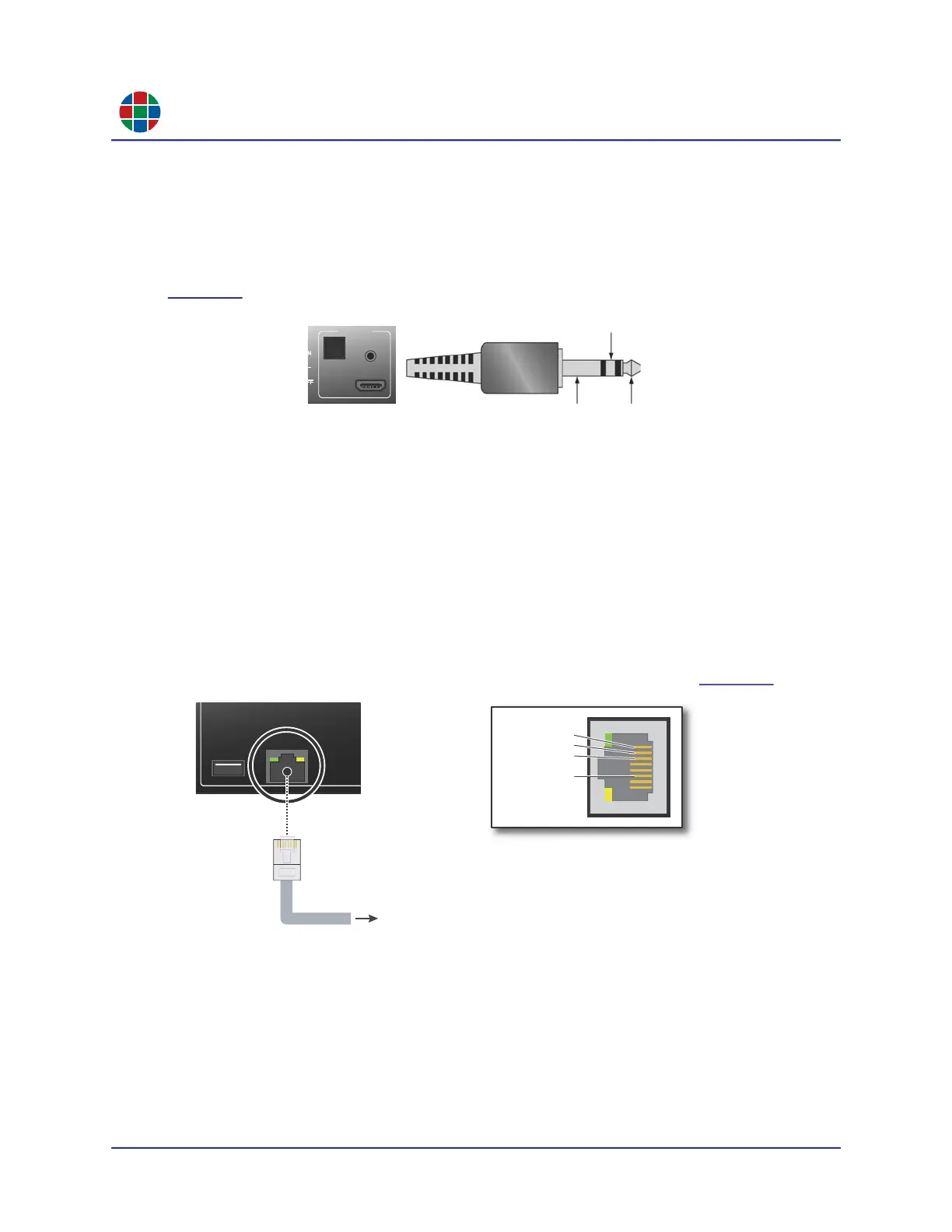

Figure 2-1 shows the analog output connector pinouts (Tip = left; Ring = right).
Figure 2-1 Audio Outputs
Either:
Connect an optical cable from the OPTICAL output on the QuadView UHDx to the optical
audio input of an audio/video (A/V) receiver or other audio processing equipment.
Use a cable with 3.5-mm stereo plugs at one end to connect the audio output jack to powered
speakers, the audio inputs of an A/V receiver, or other audio processing equipment.
2.1.4 Connecting to a Network
Use a standard Cat 5 or Cat 6 network cable with an RJ-45 plug to connect a control PC, network
hub, router, or gateway to the ETHERNET port on the QuadView UHDx. See Figure 2-2.
Figure 2-2 Connecting to a Network
OUTPUTS
L/R
HDMI
OPTICAL
R
LGND
PROG LAN
1
8
1 Transmit Data +
2 Transmit Data -
3 Receive Data +
6 Receive Data -
To control PC, Ethernet hub, router, or gateway
