350-12245-01 – updated December, 2019 QuadView UHDx/UHDx KVM User Guide 13
C H A P T E R 2
I n s t a l l a t i o n
2.1.5 Connecting a Control PC or Control System
Optional: Use a straight-through 9-pin RS-232 cable to connect a PC or control/automation
system (if present) to the RS-232 port on the QuadView UHDx. See Figure 2-3.

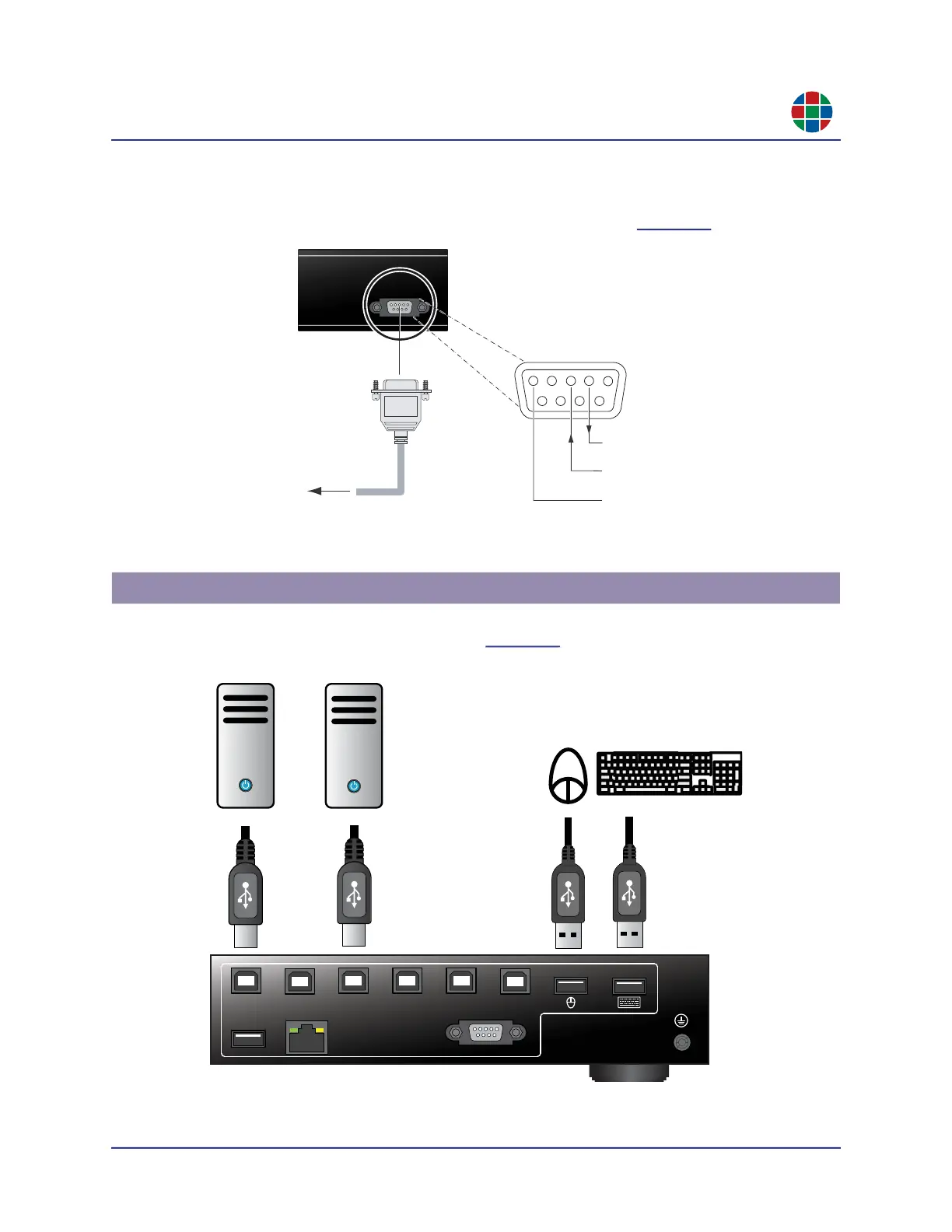

Figure 2-3 RS-232 Controller Connection
If you are using a QuadView UHDx KVM (see Figure 1-3), then you can use a keyboard and
mouse to control up to six (6) PC or laptop computers.
Figure 2-4 KVM Connections
2.2 KVM Connections (QuadView UHDx KVM Only)
RS232
1
2
345
7
89
6
Receive Data (TO control system)
Transmit Data (FROM control system)
(No other pins are used.)
To Control system, PC, etc.
PROG
LAN
RS232
123456
USB Type B
cable to PC(s)
and/or laptop(s)
being controlled
USB Type A cable
to mouse
USB Type A cable
to keyboard
To Next Page
