To select a layout using the front panel, press a LAYOUT button to load the screen layout
assigned to that button.
 The front panel LAYOUT button lights to indicate your selection.
 The WINDOW 1~4 buttons light to indicate the number of windows in the layout you just
selected.
When powered up for the first time, the QuadView UHDx loads Screen Layout #4 and displays
HDMI inputs 1 through 4 in the four windows, as shown in
Figure 3-2.

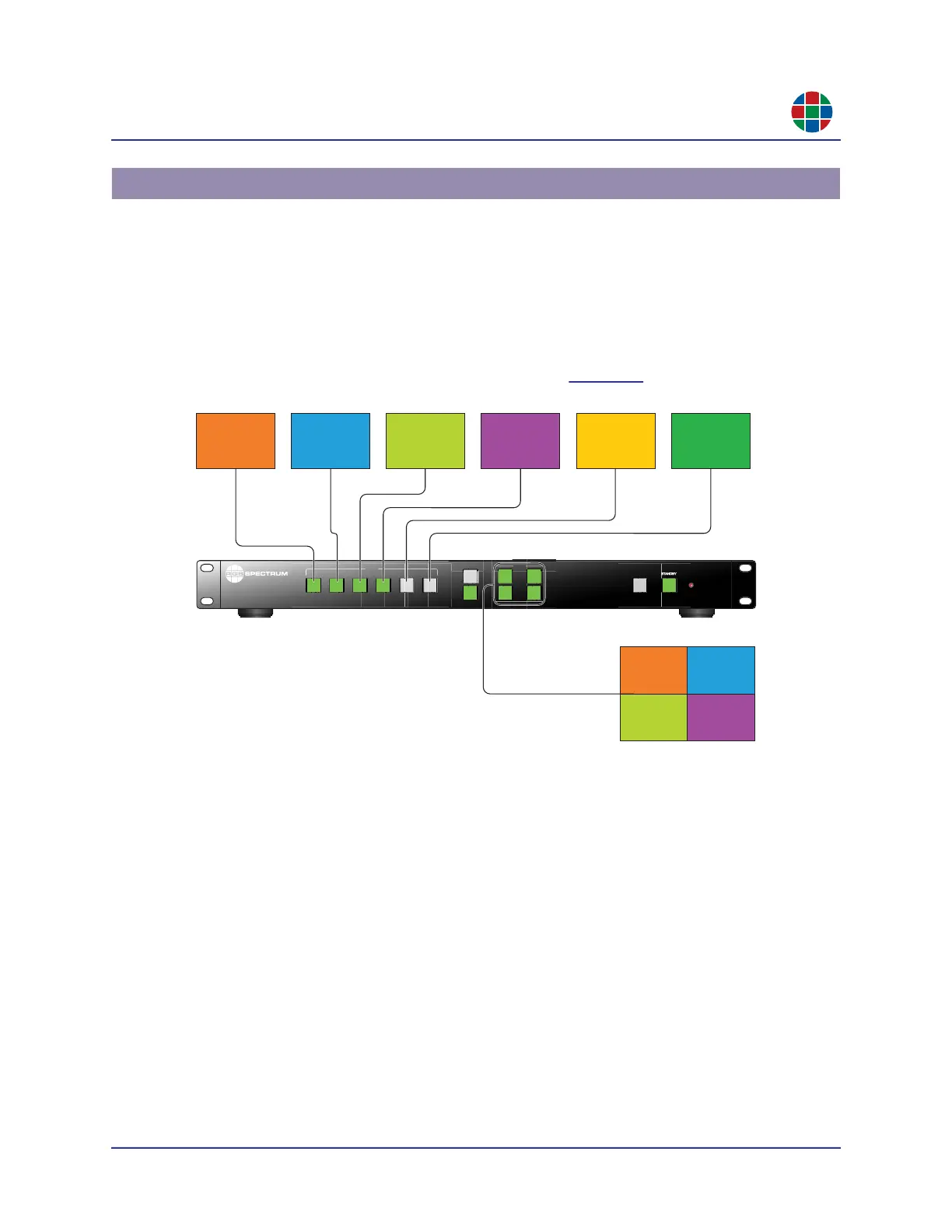

Figure 3-2 Default Source-to-Window Routing
To route a source to a window using the front panel, either:
 Select a source followed by a window.
 Select a window followed by a source.
See the following sections for instructions.
3.3.1 Single-Window Mode
To use the QuadView UHDx in single-window mode, either:
 Press the LAYOUT button, and then press the INPUT 1 button.
 Press the INPUT 1 button, and then press the LAYOUT button.
3.3 Front Panel Controls
VIDEO
2
4
PWR
123456
INPUTS
AUDIO
LAYOUT
1
3
QuadView UHDx
LOCK
HDMI 1
A
HDMI 2
B
HDMI 3
C
HDMI 4
D
DisplayPort 5
E
DisplayPort 6
F
A B
C D
HDMI Output
