C H A P T E R 3
O p e r a t i on
16 QuadView UHDx/UHDx KVM User Guide 350-12245-01 – updated December, 2019
The QuadView UHDx includes physical connections for up to six (6) sources and can display up to
four of those sources at a time in one of up to 32 layouts.
Layouts #1 through #16 are predefined. See Figure
3-1.
You may create up to 16 custom screen layouts. Each layout may include up to four windows
of any size in any position.

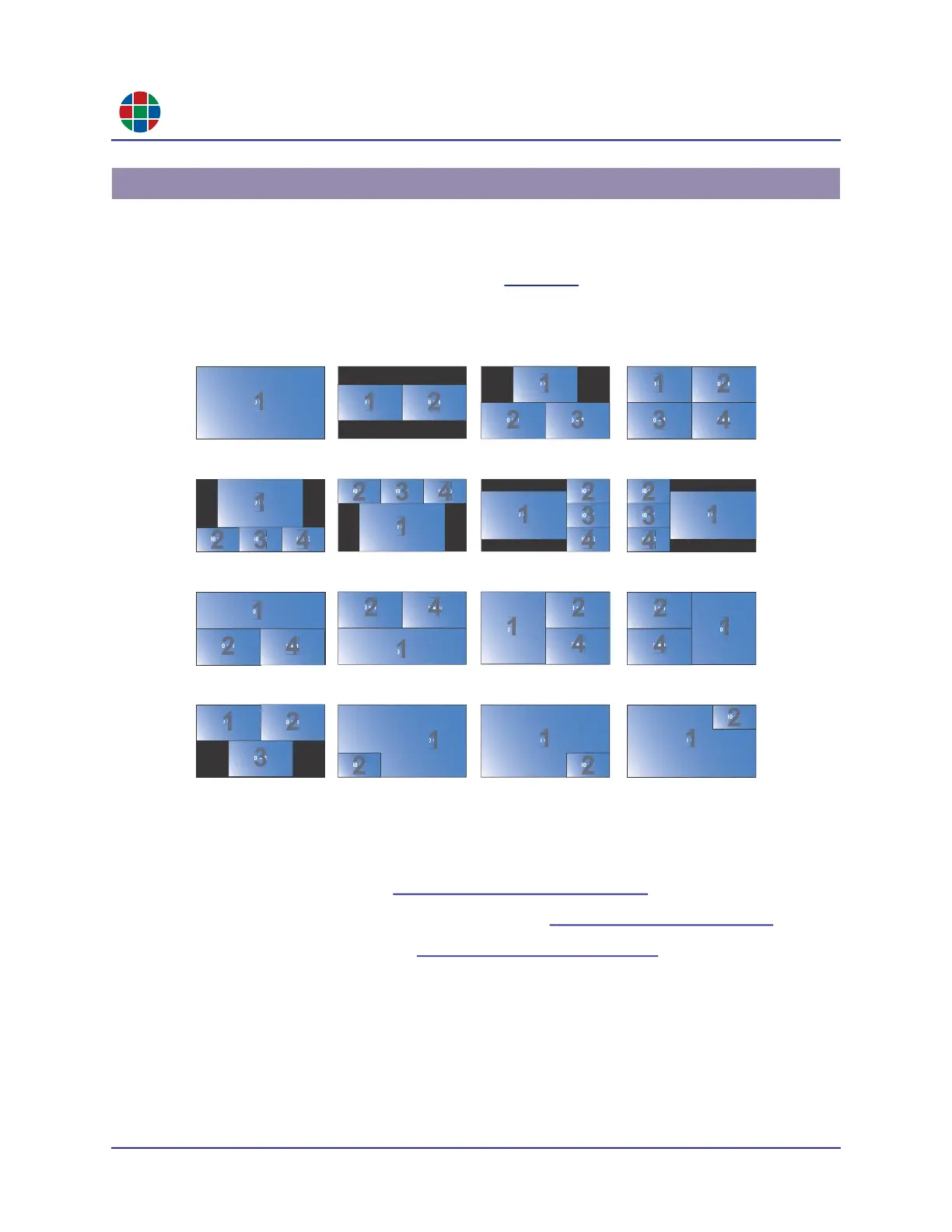

Figure 3-1 Predefined Screen Layouts
You may select a layout by either:
Using the front panel: See “Front Panel Controls” on page 17.
Using the QuadView UHDx Web Controller: See “The Layouts Tab” on page 26.
Using the command line: See “Layout Commands” on page 48.
3.2 Screen Layouts
9 10
1920 × 1080
1920 × 1080
11 12
13 14 15 16
3840 × 2160
