C H A P T E R 3
O p e r a t i on
22 QuadView UHDx/UHDx KVM User Guide 350-12245-01 – updated December, 2019
5. Click Login.
The General tab of the QuadView UHDx Web Controller appears. See Figure 3-6.
The General tab of the QuadView UHDx Web Controller allows you to perform the following basic
configuration:
Video: See “Video Settings” on page 22 and Figure 3-6.
Cropping: See “Crop Input Settings” on page 24 and Figure 3-7.
Audio: See “Audio Settings” on page
25 and Figure
3-8.
3.8.1 Video Settings

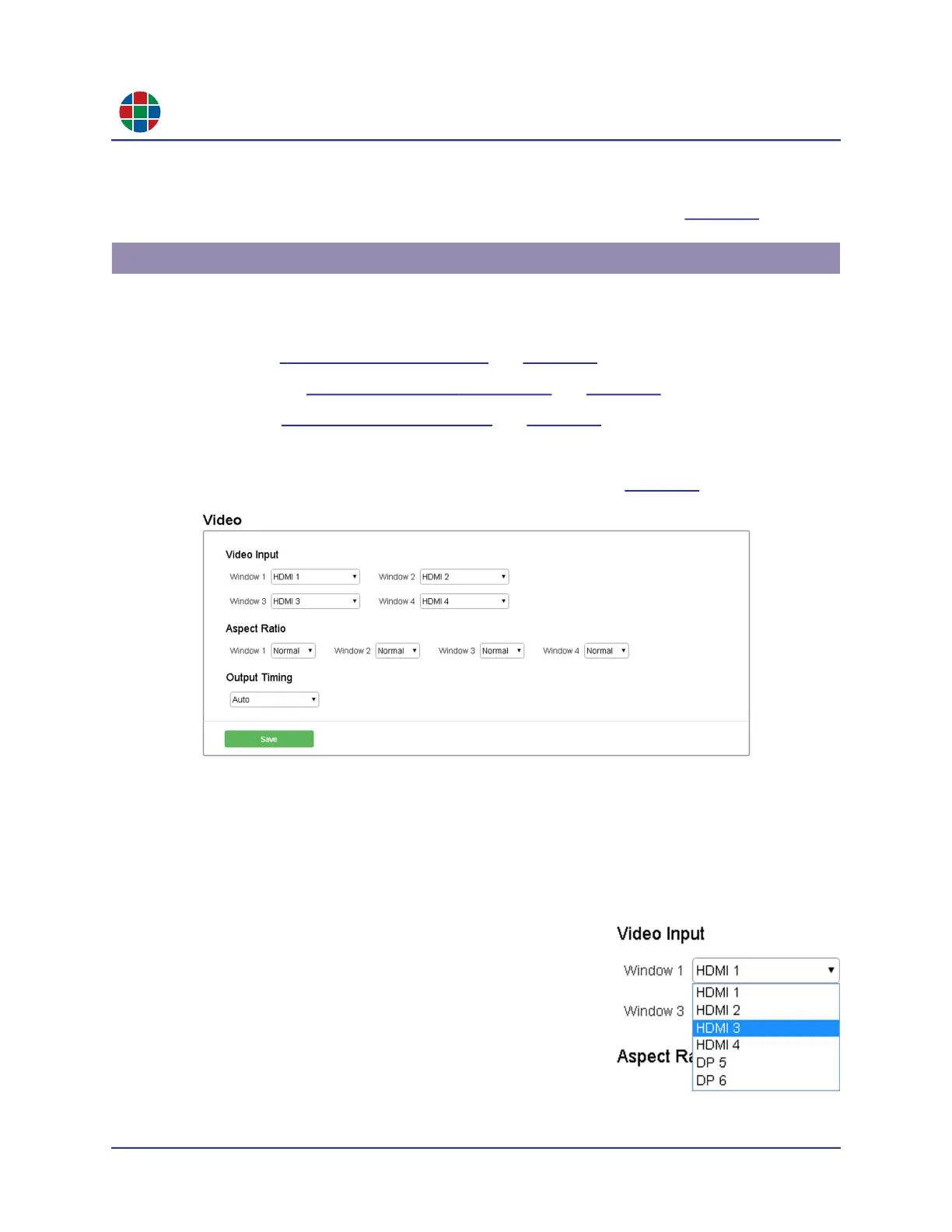

The Video Settings area of the General tab appears as shown in Figure 3-6.
Figure 3-6 General > Video Settings
This tab contains the following functions:
Input Name: You may assign a descriptive name to a video input by entering the name in the
text box for that input. The name can be up to 12 characters long and can include letters,
numbers, spaces, and some special characters.
Video Input: Route a video input to a window by selecting it
from the pull-down menu for the desired window.
Aspect Ratio: The following aspect ratio settings are
available for each window:
Normal: Display the source image at its original, native
aspect ratio.
Full: Scale the source image to fill the entire window.
16:9: Scale the source image to a 16:9 aspect ratio.
3.8 The General Tab
