C H A P T E R 3
O p e r a t i on
38 QuadView UHDx/UHDx KVM User Guide 350-12245-01 – updated December, 2019

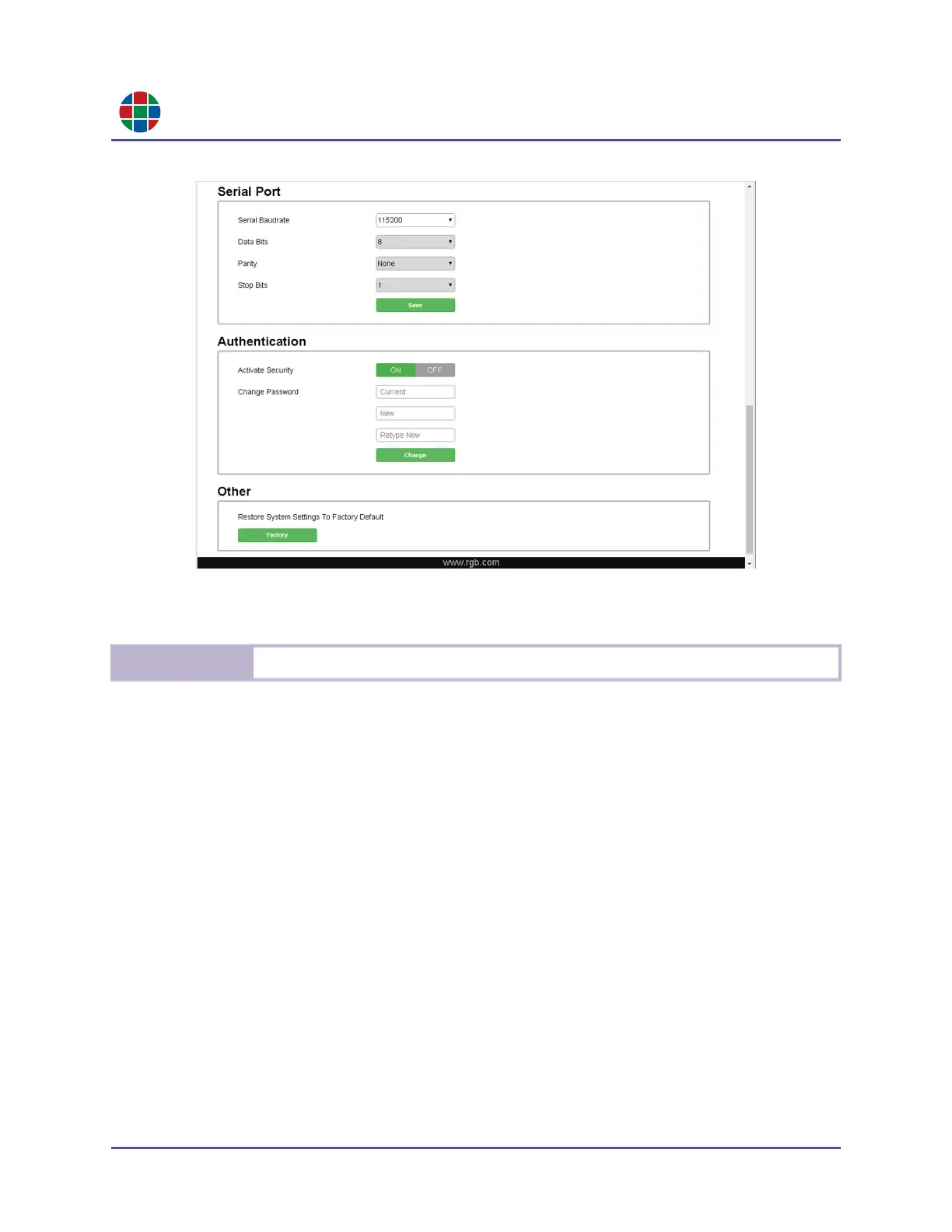

Figure 3-17 Advanced Tab – Lower Half
3.12.6 Serial Port Settings
The serial port settings specified in this section must match those of the device connected to the
RS-232 port. The following serial port settings are available:
Serial Baudrate: This pull-down menu sets the data transfer rate of the QuadView UHDx RS-
232 port. This is set to 115200 by default.
Data Bits: Number of bits of data to be sent in each character.
Parity: Error detection method. Select None, Odd, or Even, as appropriate.
Stop Bits: Sent to allow detection of the end of a character and facilitate synchronization.
Click Save when you have finished making changes.
N o t e
Color settings apply to all input labels.
