350-12245-01 – updated December, 2019 QuadView UHDx/UHDx KVM User Guide 27
C H A P T E R 3
O p e r a t i o n
This tab contains the following functions for each window:
Enable/Disable: You can enable or disable individual windows.
Enable: To enable a window, check the Enable box for that window.
Disable: To disable a window, clear the Enable check box for that window.
Priority: To change the front to-back position of Windows 1 and 3, enter either 1 or 2 in the
Priority field. The QuadView UHDx automatically adjusts this setting for Windows 2 and 4.
When you set it to 1, that window pair will appear behind the other.

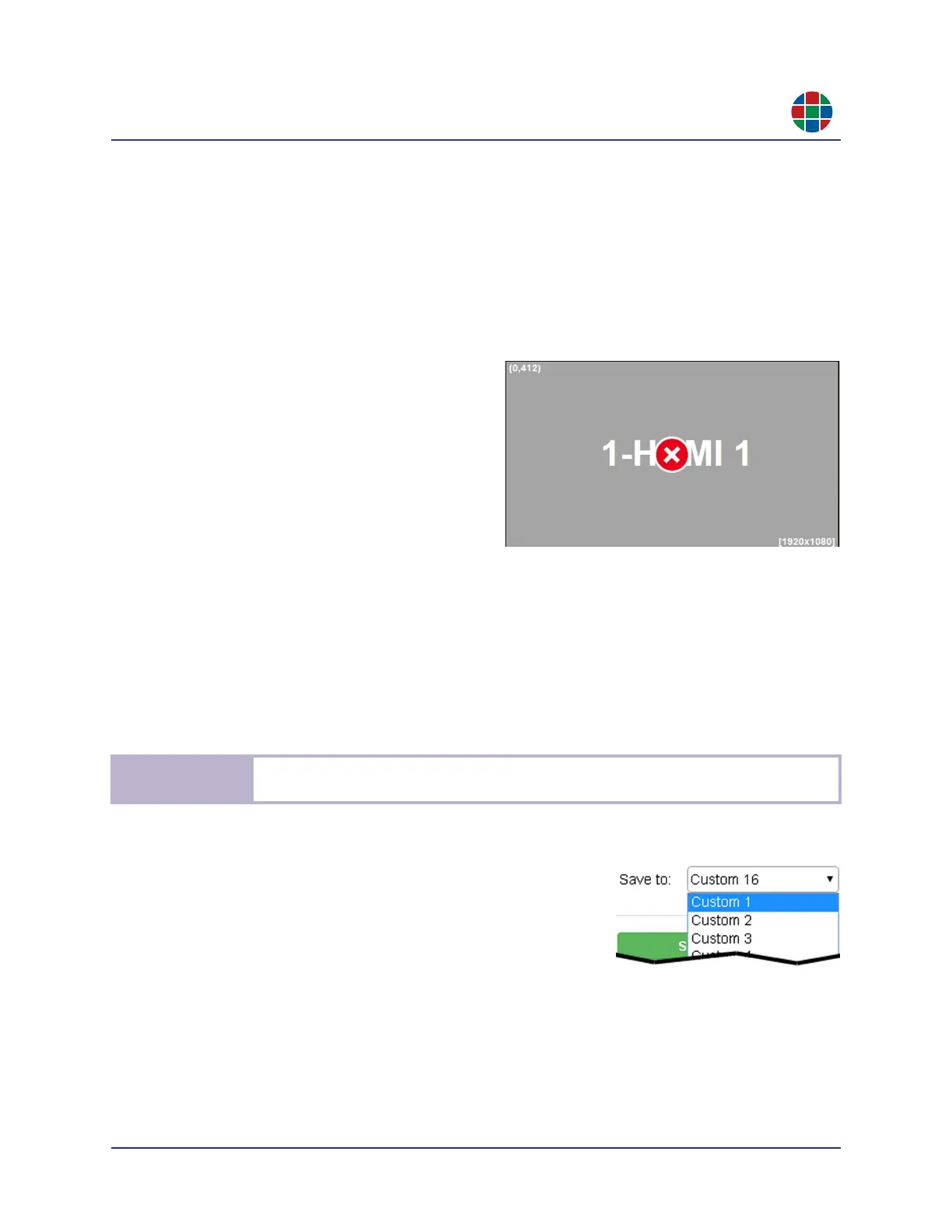

Position: Position the mouse pointer over
the window, and then click and drag that
window to the desired location.
You cannot position Window 1 and Window
3 such that they overlap, nor can you do
this with Window 2 and Window 4. If you
attempt this, the QuadView UHDx Web
Controller will change the window color to
gray to indicate that this window placement
is invalid.
Size: To size a window, either:
Position the mouse pointer over a window edge.
When positioned over the left or right edge, the cursor changes to horizontal arrows.
When positioned over the top or bottom edge the cursor changes to vertical arrows. When
positioned over a corner, the cursor changes to diagonal arrows.
Click and drag the window edge or corner to change the width and height.
Enter pixel values for the X origin, Y origin, Width, and Height by either typing values
directly or using the spin controls in the appropriate fields.
When you have finished customizing the layout:
1. Use the Save to: pull-down menu to specify where you
want to save the layout.
2. Click Save.
You can update a custom layout at any time. To do this:
1. Load the layout you want to change.
2. Make the desired changes.
3. Save your changes to the same location. This overwrites the previous layout settings.
T i p
You may use the [UP ARROW] and [DN ARROW] keys to change the X/Y, width, and height
values in small increments. The increment size depends on the output resolution.
