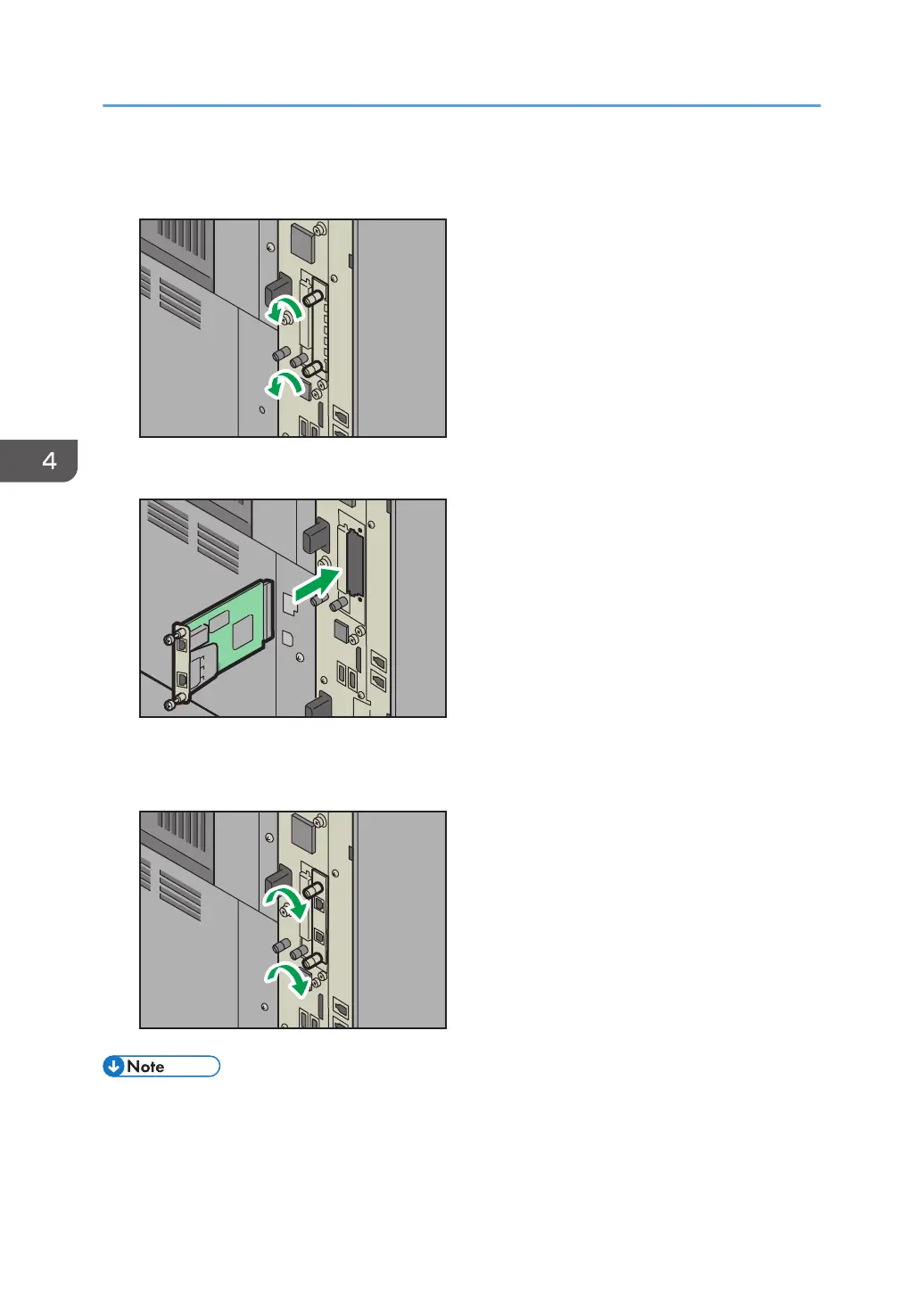

4. Loosen two screws and remove the cover of the slot in which the Gigabit Ethernet board is
installed.
5. Fully insert the Gigabit Ethernet board.
6. Tighten two screws to secure the Gigabit Ethernet board.
Check the Gigabit Ethernet board is connected firmly to the board slot.
• Confirm that the Gigabit Ethernet board was correctly installed by printing the configuration page.
If it is correctly installed, “Gigabit Ethernet Board” will appear for “Device Connection” on the
configuration page. For details about printing the configuration page, see “Interface Settings”,
Network and System Settings Reference.
4. Installing Options
110
