Connecting the Machine
This section explains how to connect the machine to the network or the telephone lines.
Connecting to the Ethernet Interface (mainly Europe and Asia)
This section describes how to connect an Ethernet cable to the Ethernet interface.
Caution:
A network interface cable with a ferrite core must be used for RF interference suppression.
• If the main power switch is on, turn it off.
• Use the following Ethernet cables.
• Unshielded Twisted Pair Cable (UTP) or Shielded Twisted Pair Cable (STP) and Category type
5 or more

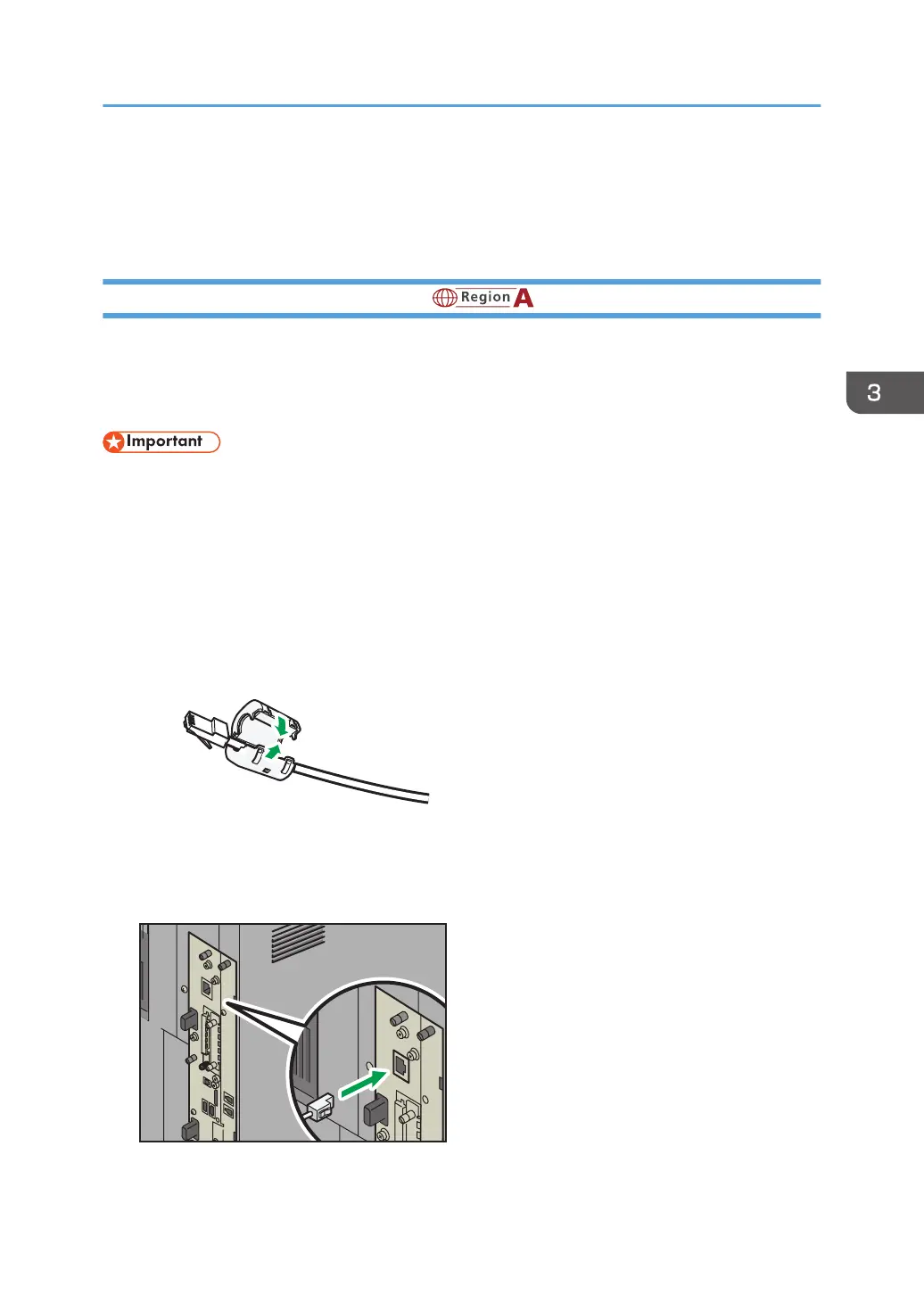

1. A ferrite core for the Ethernet interface cable is supplied with this machine. Attach the
ferrite core at the machine end of the Ethernet cable.
2. Make sure the main power is switched off.
3. Connect the Ethernet interface cable to the 10BASE-T/100BASE-TX port.
