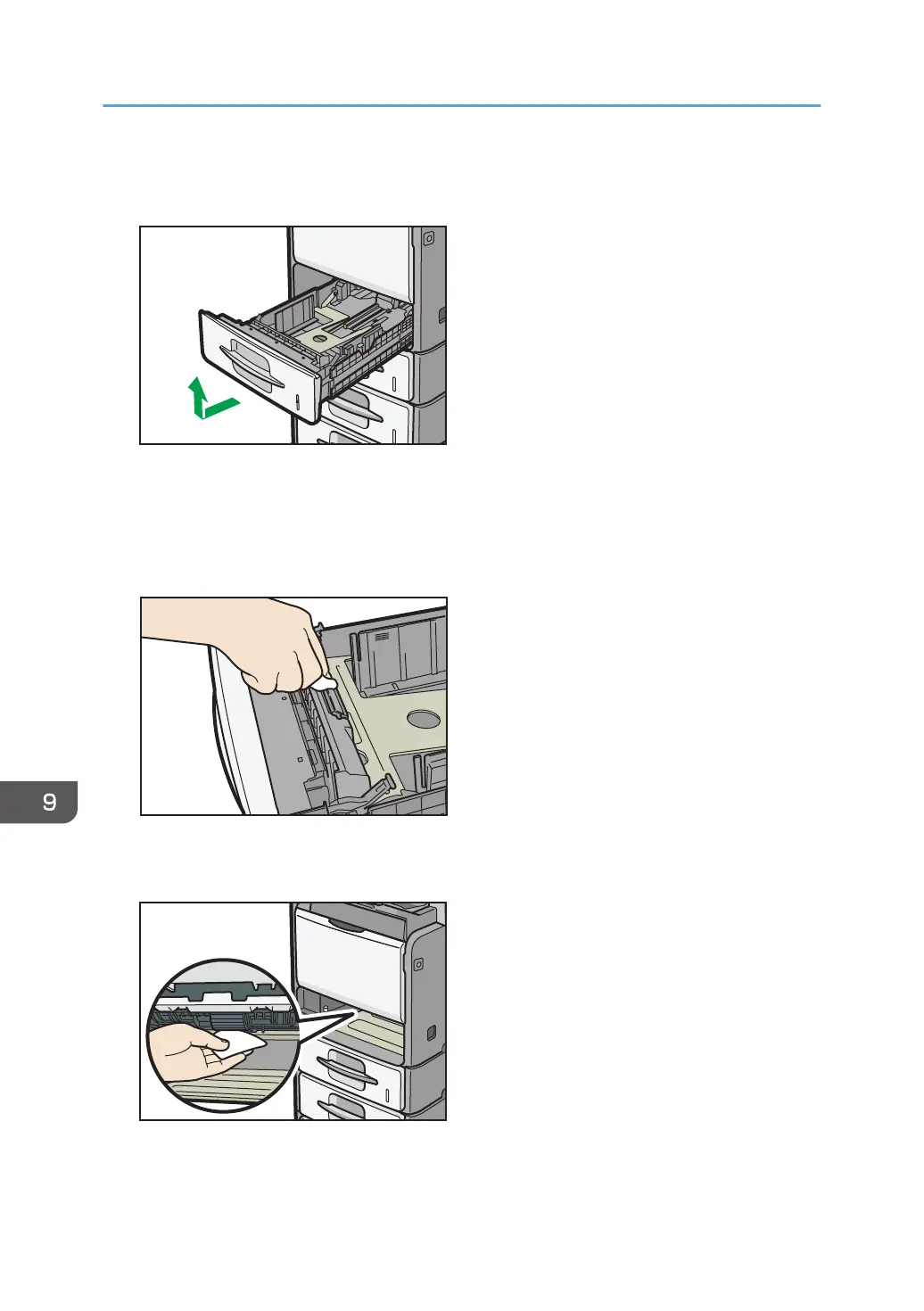

2. Remove all the cables from the machine.
3. Lift and pull tray 1 carefully, and then pull it out with both hands.
CFF032
Place the tray on a flat surface.
4. Remove paper if loaded.
5. Wipe the friction pads with a soft damp cloth. After that, wipe it with a dry cloth to
remove the moisture.
CEC041
6. Wipe the rubber part of the roller with a soft damp cloth. After that, wipe it with a dry
cloth to remove the moisture.
CFE051
7. Reload the removed paper into the tray.
9. Remarks
172
