13.

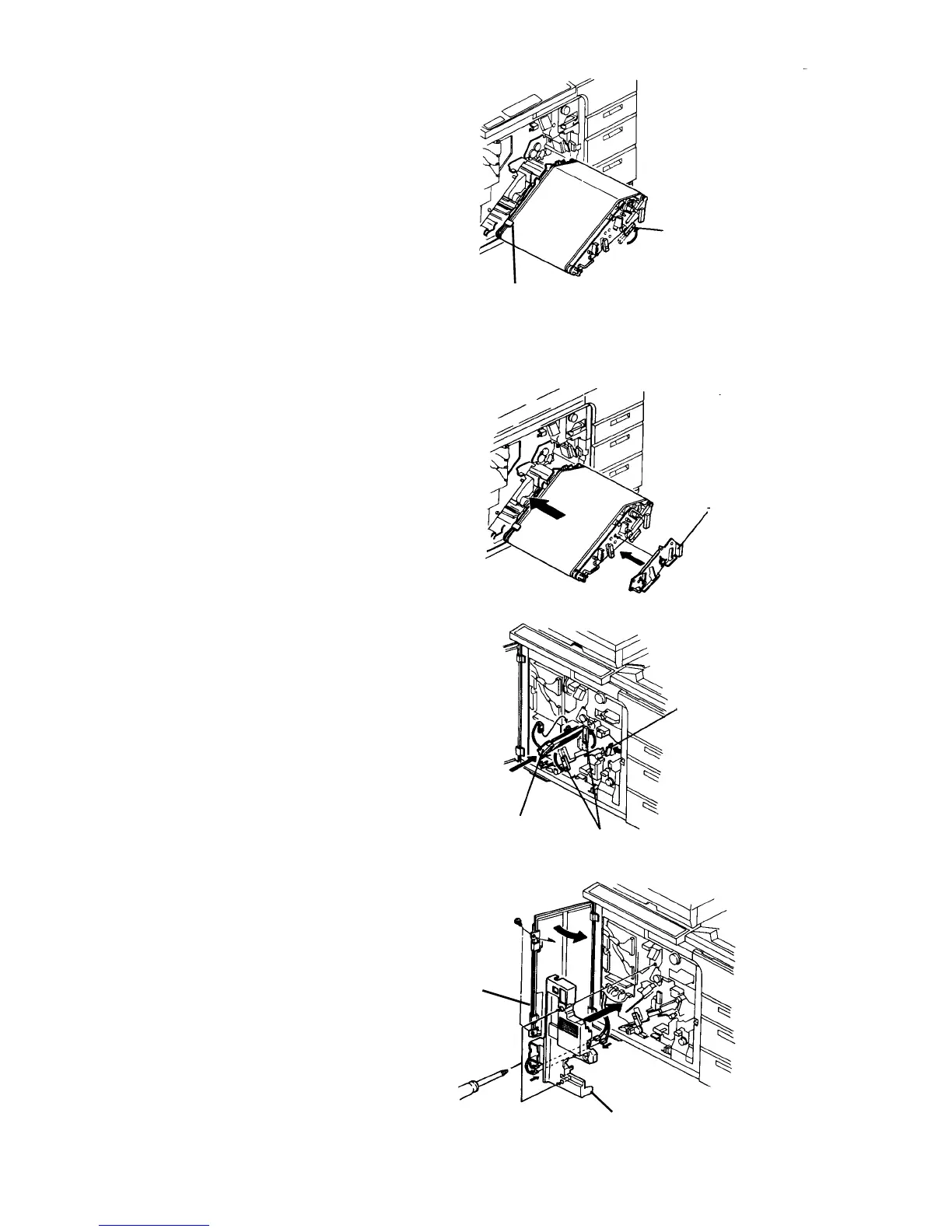

Set the OPC belt in the center of the unit and
restore tension to the belt with the pressure
release lever.
14.
Set the OPC unit in the main body and install the
OPC unit stay.
15.
Set two backup levers, and position the charge
corona unit, its connector, and transport unit.
16.
Install the inner cover (2 screws and a connector)
and left door (2 screws).
OPC unit stay
Transport unit
Charge corona unit
Backup levers
Inner cover
Left door
Pressure release lever
OPC sensor
Copier Installation 1 July 1994
1-10
