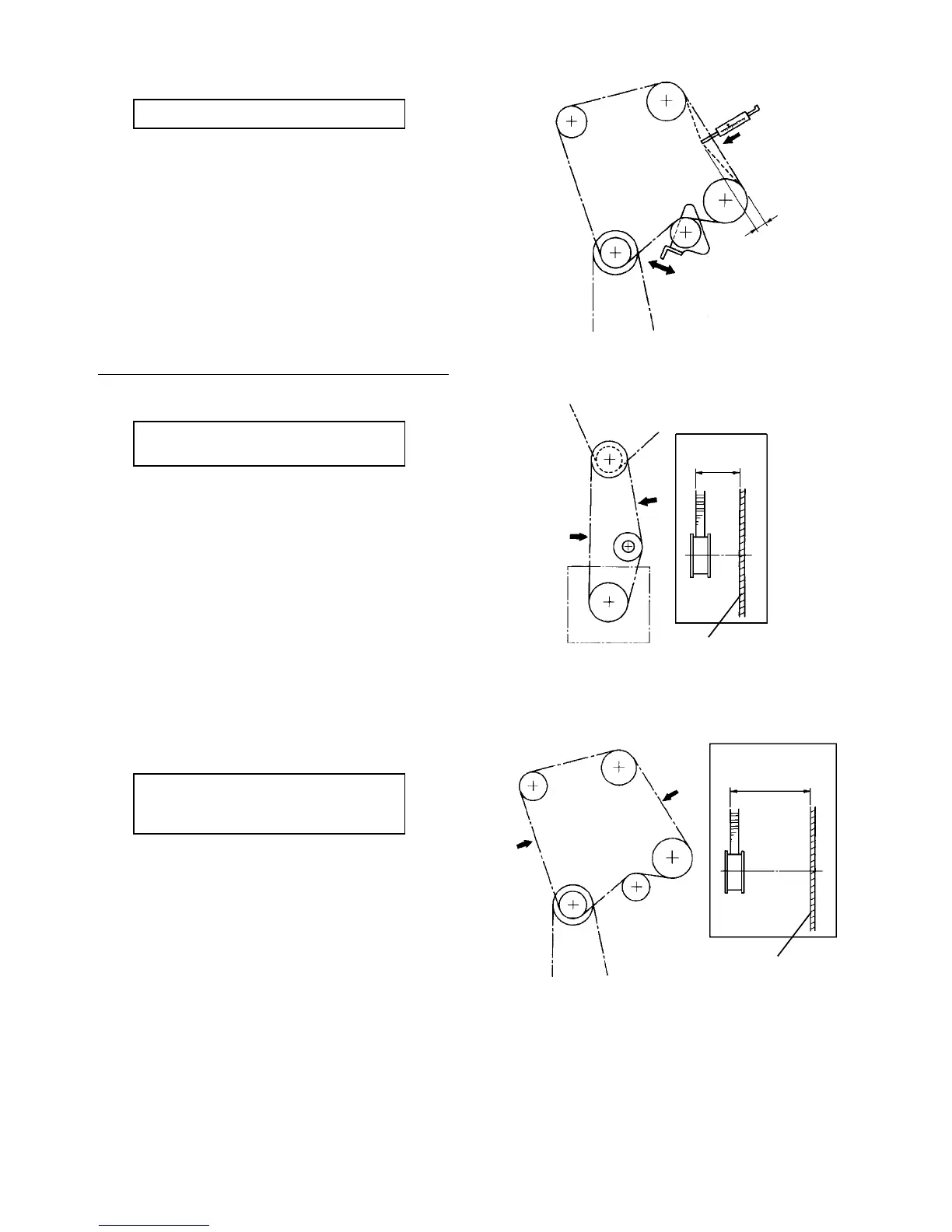

• Main drive belt
7 mm deflection at 1.2 ± 0.25 kg pressure.
Belt alignment standards
• Main motor belt
41.5 ± 1.2 mm from the copier rear frame
at the two locations shown.
• Main drive belt
Between 83.7 and 81.1 mm from the
copier rear frame at the two locations
shown.
1.2 ± 0.25 kg
7 mm
41.5 ± 1.2 mm
Copier rear frame
Copier rear frame
83.7 ∼ 81.1 mm
