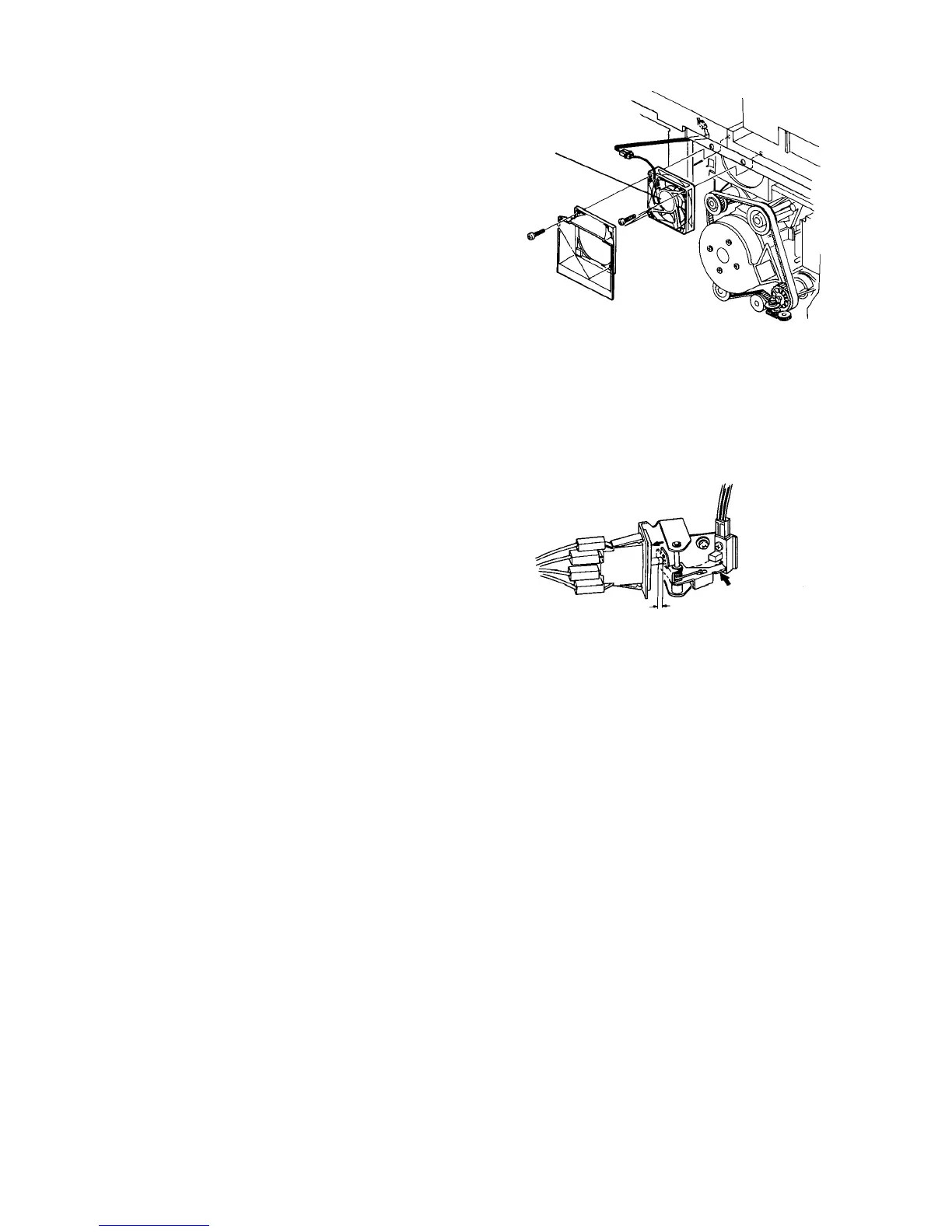

2.13.4 Replacing the fusing cooling exhaust fan
1. Turn off the main switch and remove the rear left
cover (2 screws).
2. Remove the outside duct of the fusing cooling
exhaust fan (2 screws).
3. Disconnect the connector of the fan.
4. Remove the fan (2 screws) and replace it.
5. Reassemble in the reverse order.
2.13.5 Replacing the front and upper right door switches
1. Turn off the main switch.
2. Open the front or upper right door and remove the
applicable inner cover.
3. Mark off the switch bracket position.
4. Remove the switch or sensor from the bracket and
replace it.
5. Reassemble in the reverse order.
CAUTION
Fix the door switches in the marked off position.
If you can not do this, tighten the switch bracket
fixing screws when the center of the oval holes
of the bracket meet the screw holes. Check that
the switch turns on prior to the sensor
activation. When the door is closed, the sensor
actuator should be pushed more than 6.5 mm
by the switch as shown.
Fusing cooling
exhaust fan
6.5 mm or more
