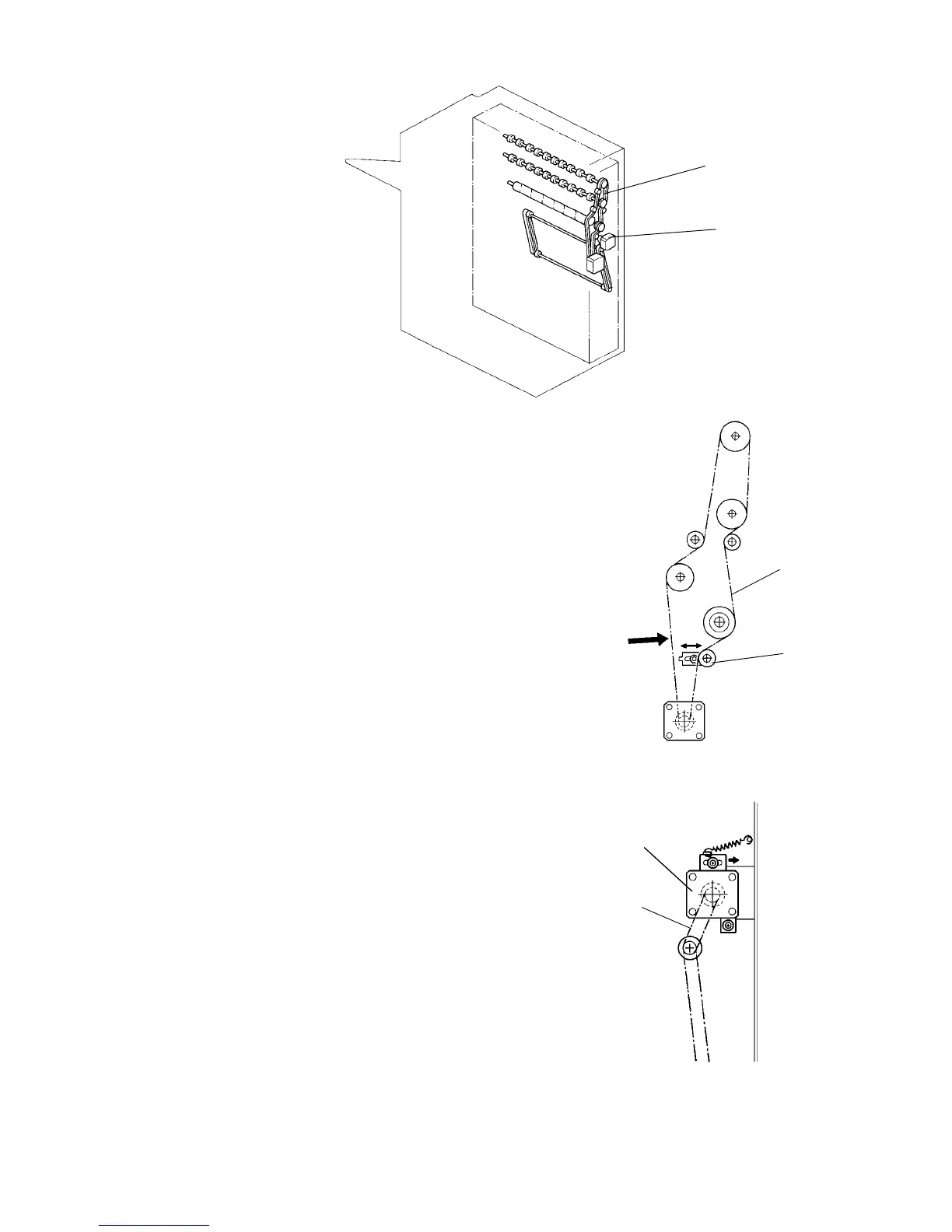

6. Remove the inverter rear cover and adjust the belt
[J] tension with the tightener [j].
Standard: 6 mm deflection at 100 ± 30 g pressure.
NOTE:
Do not move tighteners other than tightener [j].
7. Remove the inverter rear cover. Loosen the 2
screws fixing the motor [k], then retighten the
screws. The belt [K] tension is automatically
adjusted by the spring tension.
[J]
[K]
[J]
[j]
[k]
[K]
1 July 1994 Finisher
2-131
