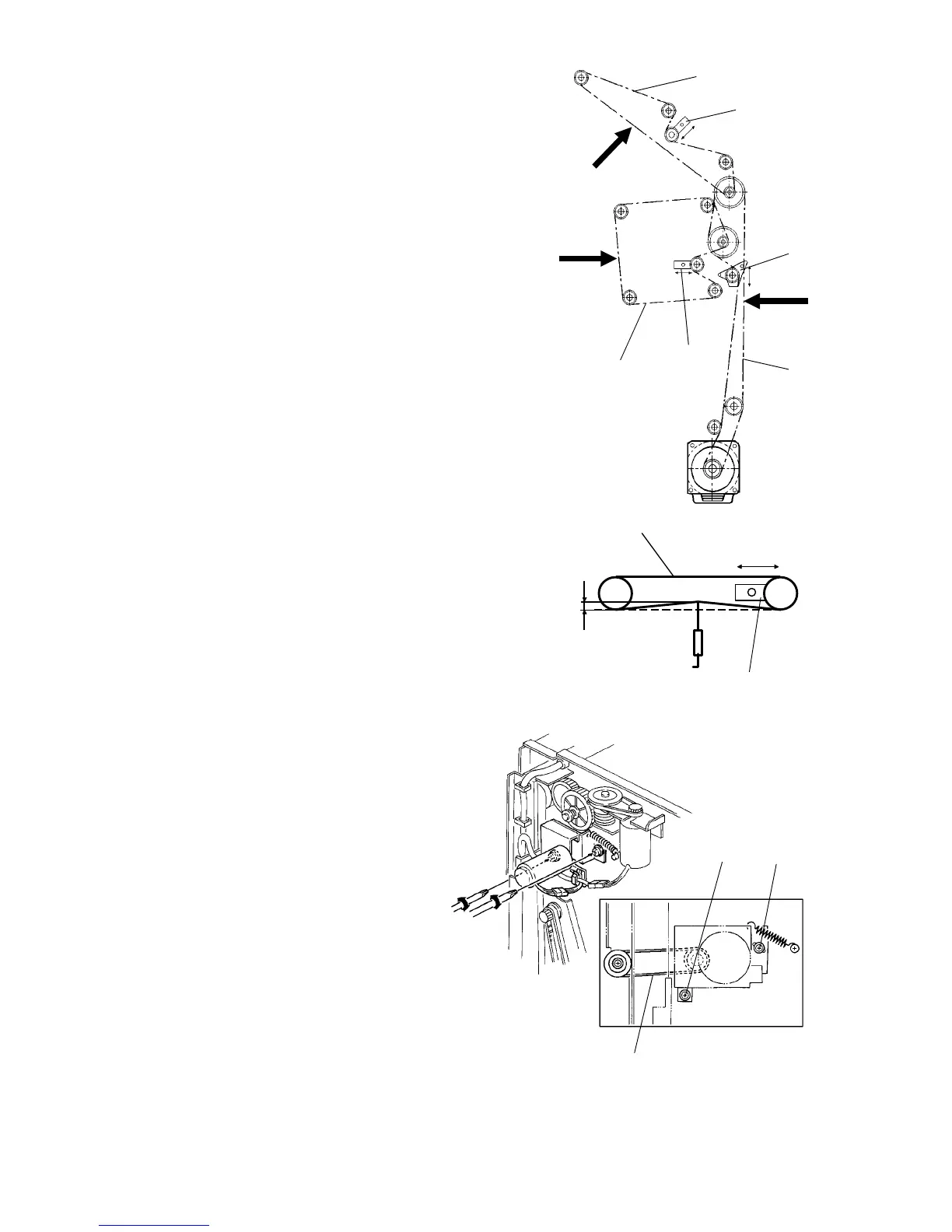

3. Remove the rear cover and adjust the belt [D] [E]
[F] tension with the tightener [d] [e] [f].
<Standard>
[D]: 6 mm deflection at 60 ± 20 g pressure
[E]: 6 mm deflection at 170 ± 30 g pressure
[F]: 6 mm deflection at 100 ± 30 g pressure
4. Open the front door and slide out the jogger unit.
Adjust the belt [G] tension with the tightener [g].
Standard:10 mm deflection at 65 ± 20 g pressure
5. Remove the rear cover. Loosen the 2 screws [h]
and [i]. Retighten the screw [h] and then retighten
[i]. The belt [H] tension is automatically adjusted by
the spring tension.
[g]
[G]
[D]
[d]
[f]
[F]
[e]
[E]
[i]
[h]
[H]
Finisher 1 July 1994
2-130
