Item Description Setting Method
5-04
5. Lamp/Sol

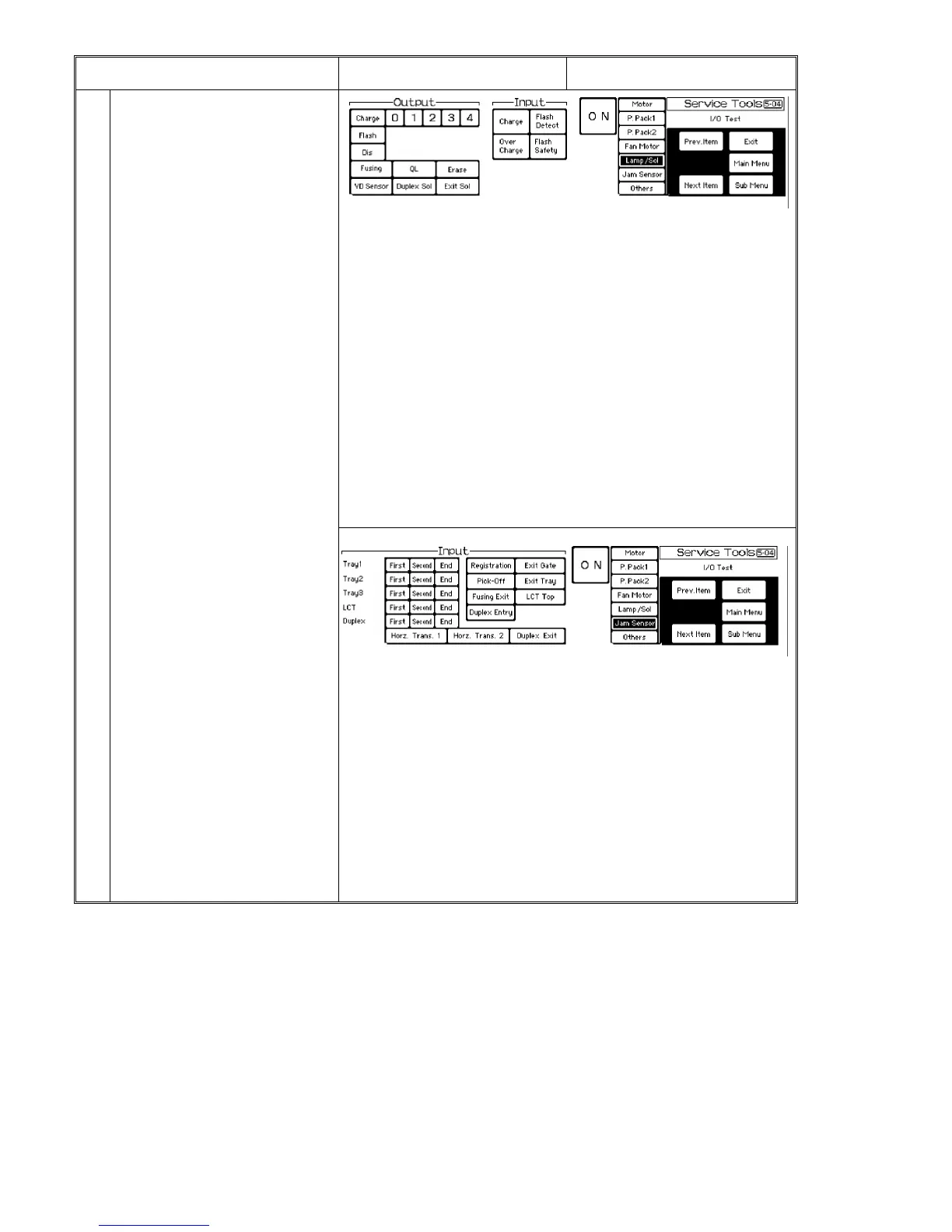

* Output test items
Charge Flash charge. Select output level using keys [0] to [4], then press
[Charge] key.
Flash Flash ON. Charge using [Charge] key before use of this key.
DIS Flash discharging. Effective only when [Charge] key is OFF.
Fusing Fusing lamp ON
QL Quenching lamp ON
Erase All eraser LEDs ON
VD Sensor "A" sensor of potential sensor ON (channel selection for A and
B sensors)
Duplex Sol Duplex entrance junction solenoid ON
Exit Sol Eject junction solenoid ON
* Input test items
Charge Flash charge completion detection
Flash Detect Flash ON detection
Over Charge Flash over charge (charge error) detection
Flash safety Flash safety switch OFF (flash cover is removed)
6. Jam Sensor
* Input test items
First 1st paper feed sensor
Second 2nd paper feed sensor
End Paper end sensor (Tray 1), or paper set sensor (Tray 2, 3, and 4)
Horz. Trans. 1 Horizontal transport entrance sensor
Horz. Trans. 2 Horizontal transport exit sensor
Duplex Exit Duplex exit sensor
Registration Registration sensor
Pick-off Separation sensor
Fusing Exit Fusing exit sensor
Duplex Entry Duplex entrance junction sensor
Exit Gate Eject junction sensor
Exit Tray Eject tray sensor
LCT Top LCT transport sensor
