Ricoh FT9101 - Page 290

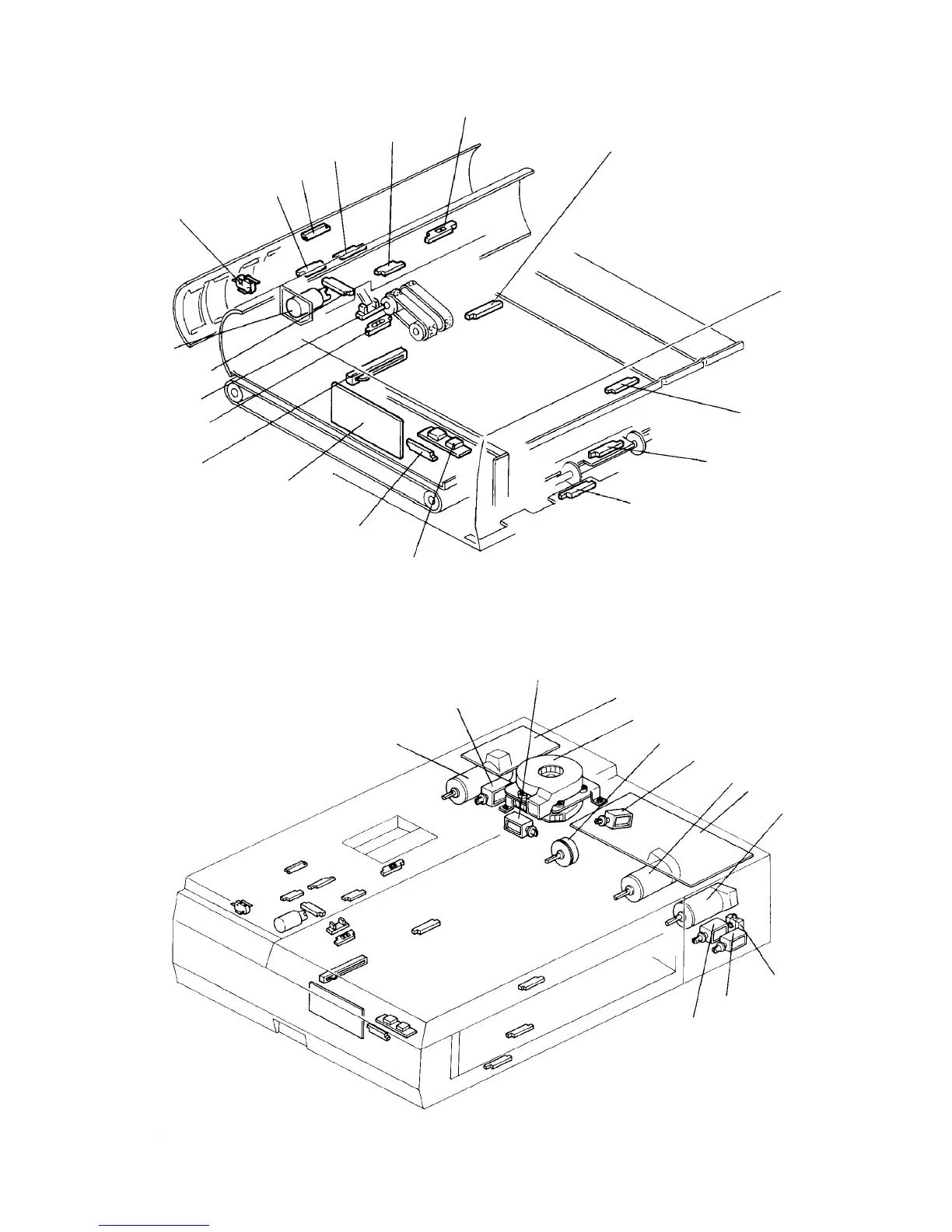

RDH front view
RDH rear view
Exit sensor
SADF exit sensor
Entrance sensor
2nd reverse sensor
Inverter cover switch
1st reverse sensor
Recycle arm
solenoid
Recycle arm
height sensor
Recycle arm sensor
Original set sensor
Original
size sensor
Harness
relay board
Length sensor
Display board
SADF set sensor
Registration sensor
2nd transport
sensor
1st transport sensor
Reverse motor
SADF exit gate solenoid
Reverse junction solenoid
Blower control board
ADF blower
Original feed magnetic clutch
Shutter solenoid
Original feed motor
ADF control board
Transport
motor
Lift switch
SADF
registration
gate solenoid
SADF entrance
gate solenoid
1 July 1994 Electrical Component Layout Diagram
1-23
