1.6.2 LCT
Tray lowering switch
Paper feed sensor board
Horizontal transport
exit sensor
Horizontal transport
entrance sensor
LCT control board
Paper volume sensor
Upper limit
overrun switch
Back fence home
position sensor
Overrun control board
Power transformer
Dehumidification heater
Lower limit sensor
LCT size sensors [5]
Paper end sensor
Tray motor
Pick-up solenoid
Transport motor
Upper cover safety switch
Paper feed motor
Paper feed magnetic clutch
Back fence motor
LCT transport
sensor
Back fence set sensor
Upper limit sensor
Lower limit
overrun switch

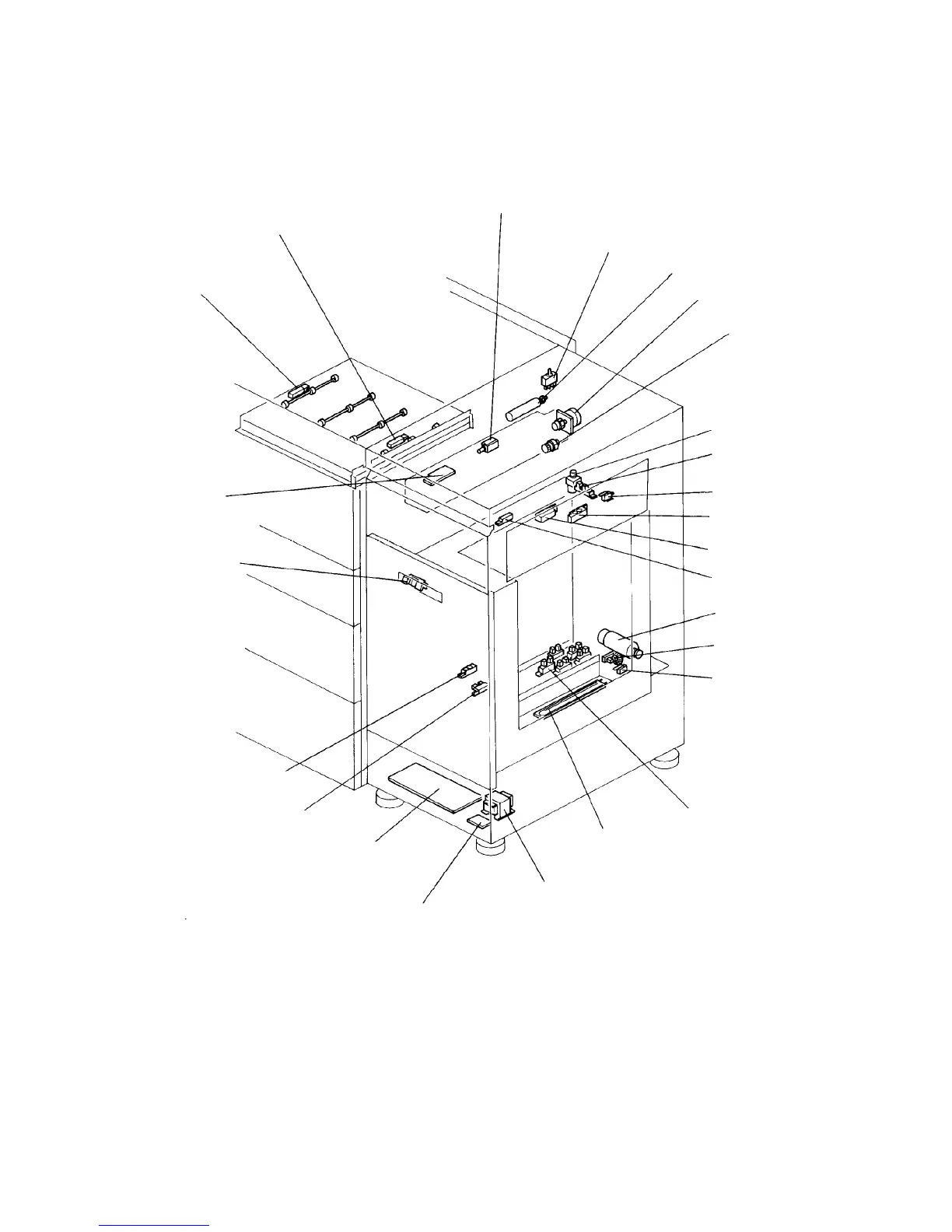

Electrical Component Layout Diagram 1 July 1994
