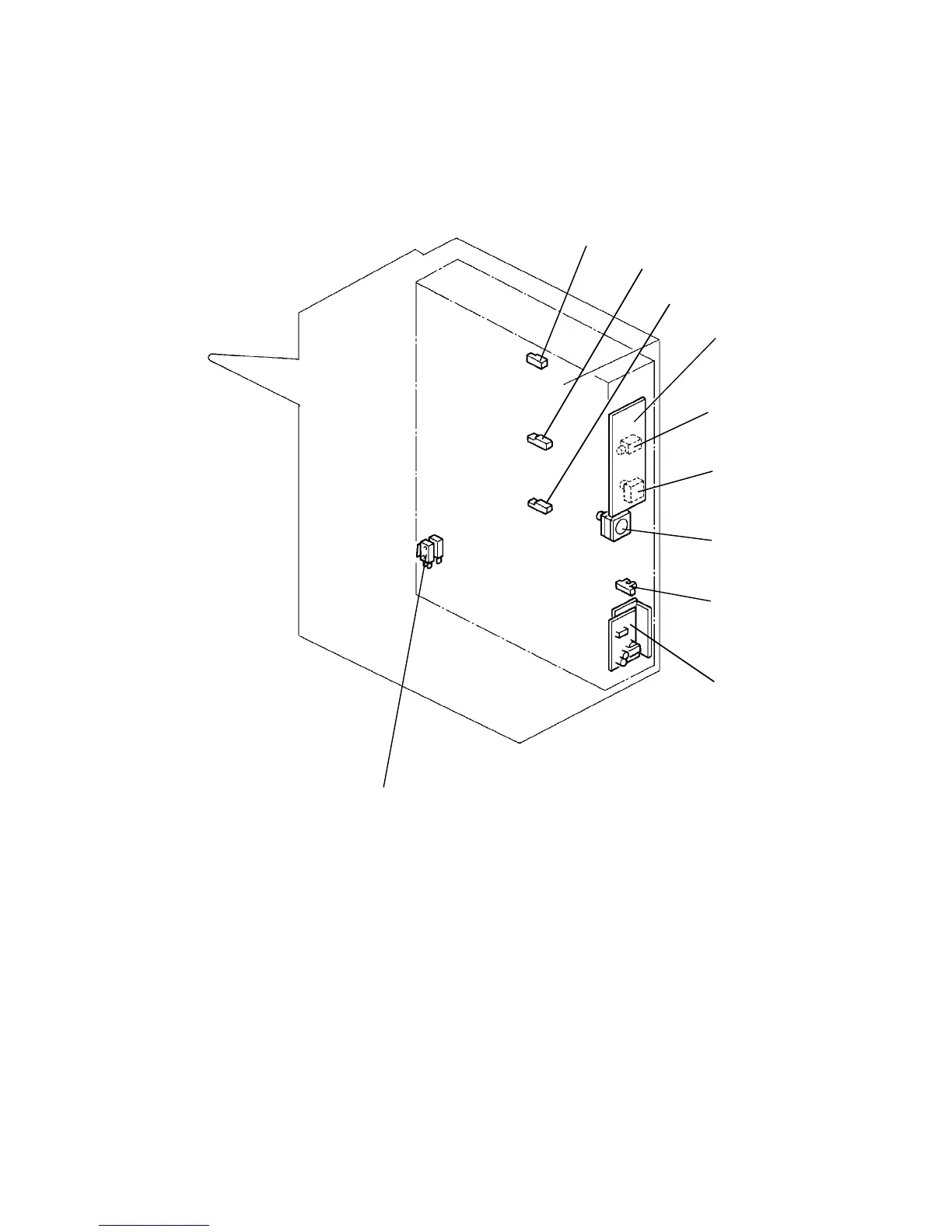

1.6.3 Finisher
Inverter section
DC power
supply PCB
Inverter front door safety switches
Stopper HP
sensor
Inverter
transport motor
Stopper drive
motor
Inverter junction gate
solenoid
Inverter control
PCB
Inverter 3rd sensor
Inverter 2nd sensor
Inverter entrance sensor
1 July 1994 Electrical Component Layout Diagram
1-25
