Ricoh FT9101 - Page 293

Finisher section
Jogger unit paper sensor
Stack feed-out belt sensor
Finisher control PCB
Shift tray lower
limit sensor
Transport drive
motor control PCB
Jogger HP
sensor
Exit unit HP
sensor
Exit unit half turn
sensor
Stack heigfht 2 sensor
Stack height
1 sensor
Exit sensor
Finisher front
door safety
switches
Stapler unit HP
sensor
Shift motor
Shift tray half turn
sensor
Exit unit HP
sensor
Staple motor
Finisher
transport Motor
Jogger Motor
Stapler drive motor
Positioning roller
solenoid
Stack feed-out
motor
Finisher junction gate
solenoid
Jogger unit entrance
sensor
Exit drive motor
Shift tray lift
motor
Finisher entrance
sensor
Shift tray upper limit
switch
Exit unit lift Motor

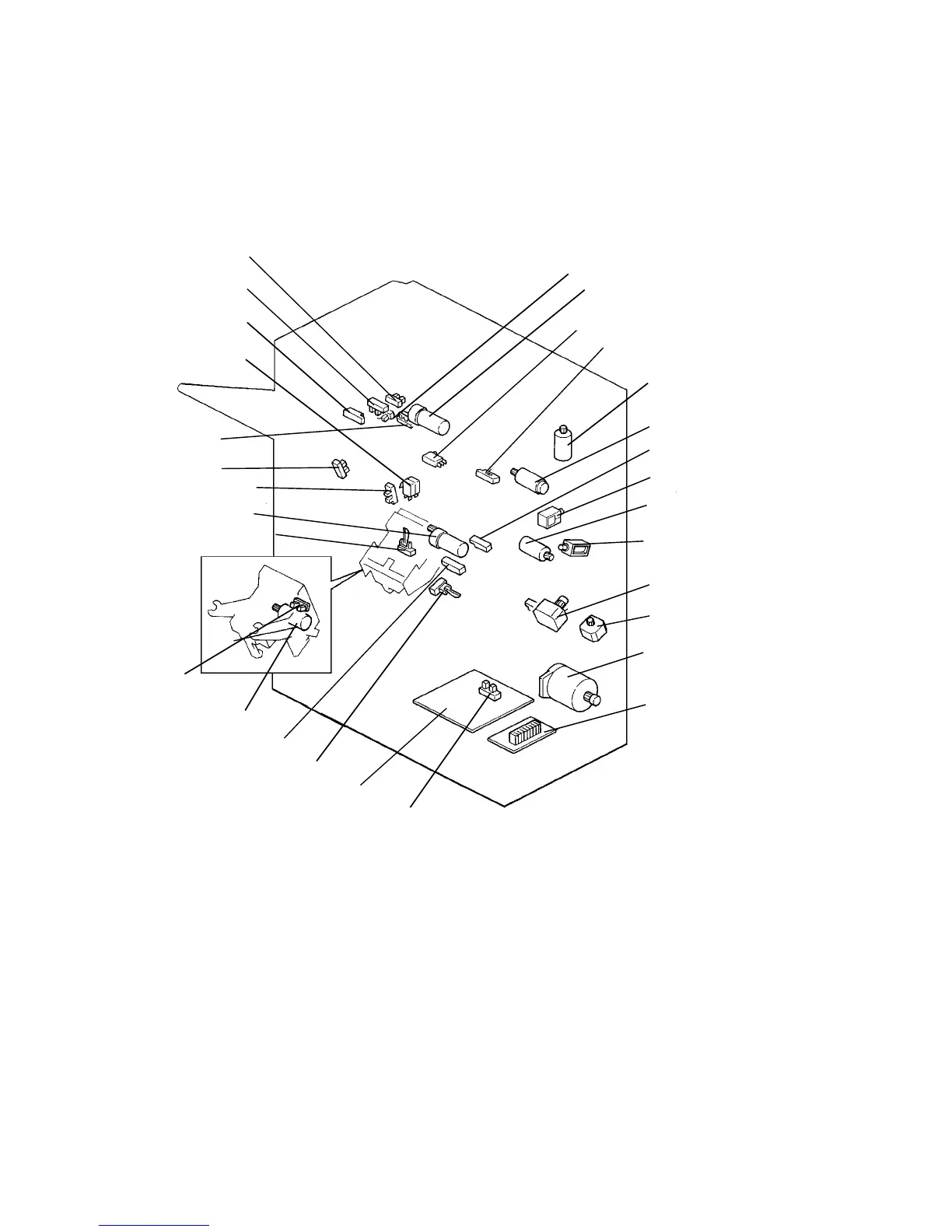

Electrical Component Layout Diagram 1 July 1994
