Ricoh FT9101 - Page 403

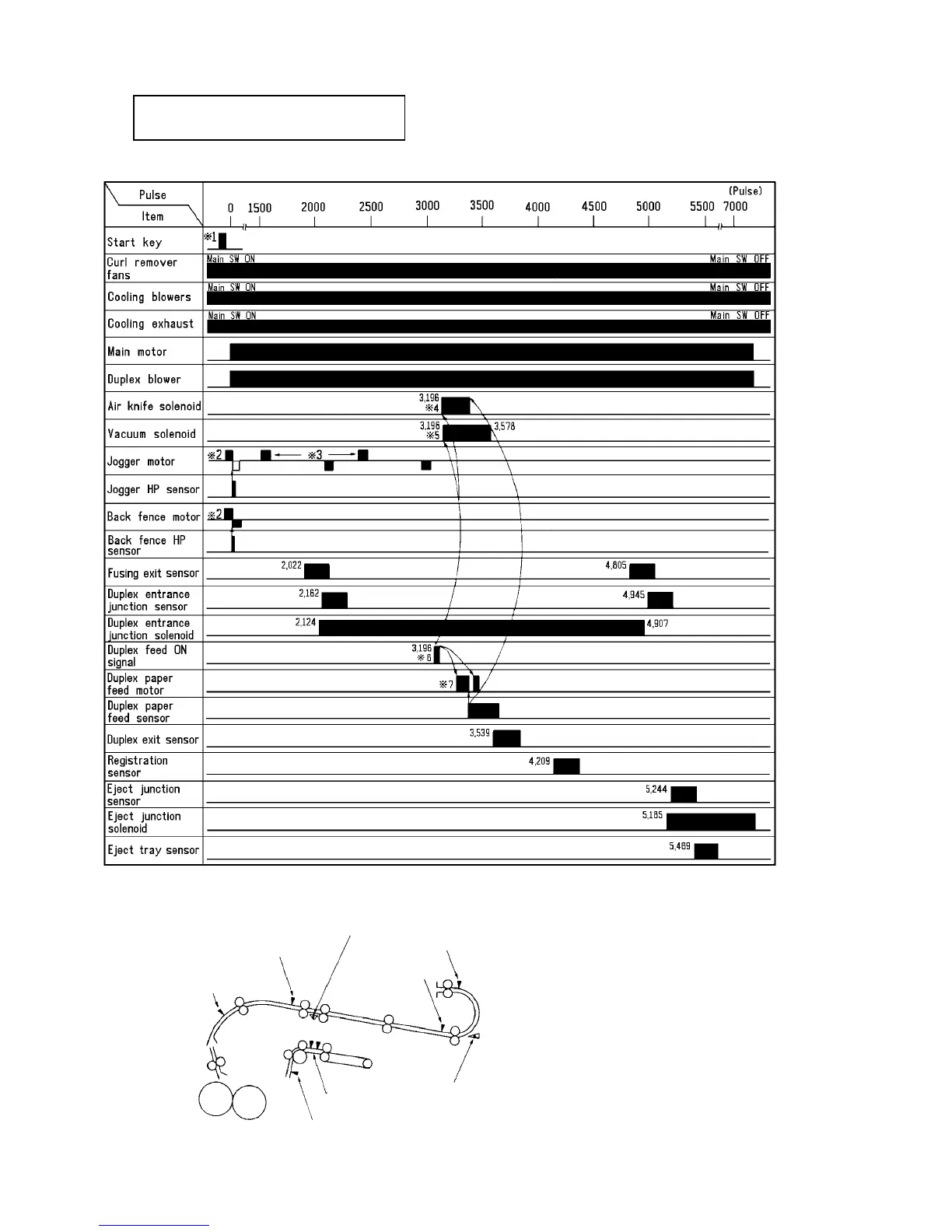

2.13.10 Timing chart
Condition: One duplex copy is made in
the ADF mode
Duplex entrance junction sensor
Eject junction gate
Duplex entrance
junction gate
Eject tray sensor
Eject junction
sensor
Fusing exit sensor
Duplex exit sensor
Duplex paper
feed sensor
1 pulse ≈ 1 mm (transport distance) = 2.34 ms
1 July 1994
Duplex and Paper Exit
2-103
