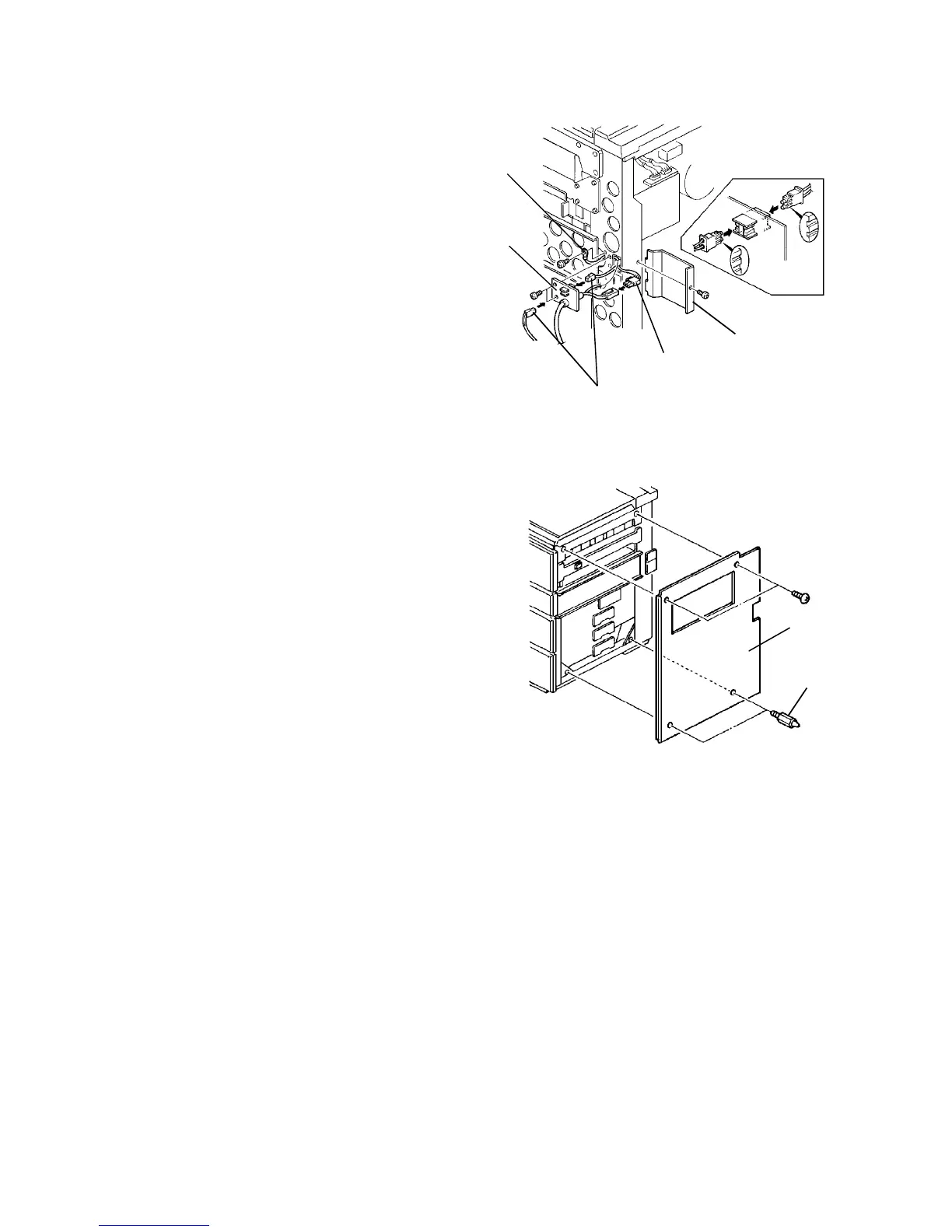

4. Install the harness bracket of the power cord
(accessory) with the two M4 x 6 pan head screws
(accessories).
5. Take the grounding wire, feed it through hole
provided as shown. Secure it with the M4 x 8
grounding screw (accessory). The grounding
screw must be firmly secured in place with a force
10 to 15 kgfcm torque.
6. Set the optical fiber cable connectors from the
copier and finisher in the sockets of the harness
bracket. Also, connect 3P connector to the power
cord.
CAUTION
The connectors (male) and sockets (female)
must be set as shown.
7. Reinstall the connector cover and rear right cover.
8. Install the copier right cover. If the LCT is not used,
install the two docking pins (accessories).
Connector
cover
Optical
fiber cable
connectors
3P connector
Grounding
wire
Harness
bracket
Right
cover
Docking
pins
To Next Page
