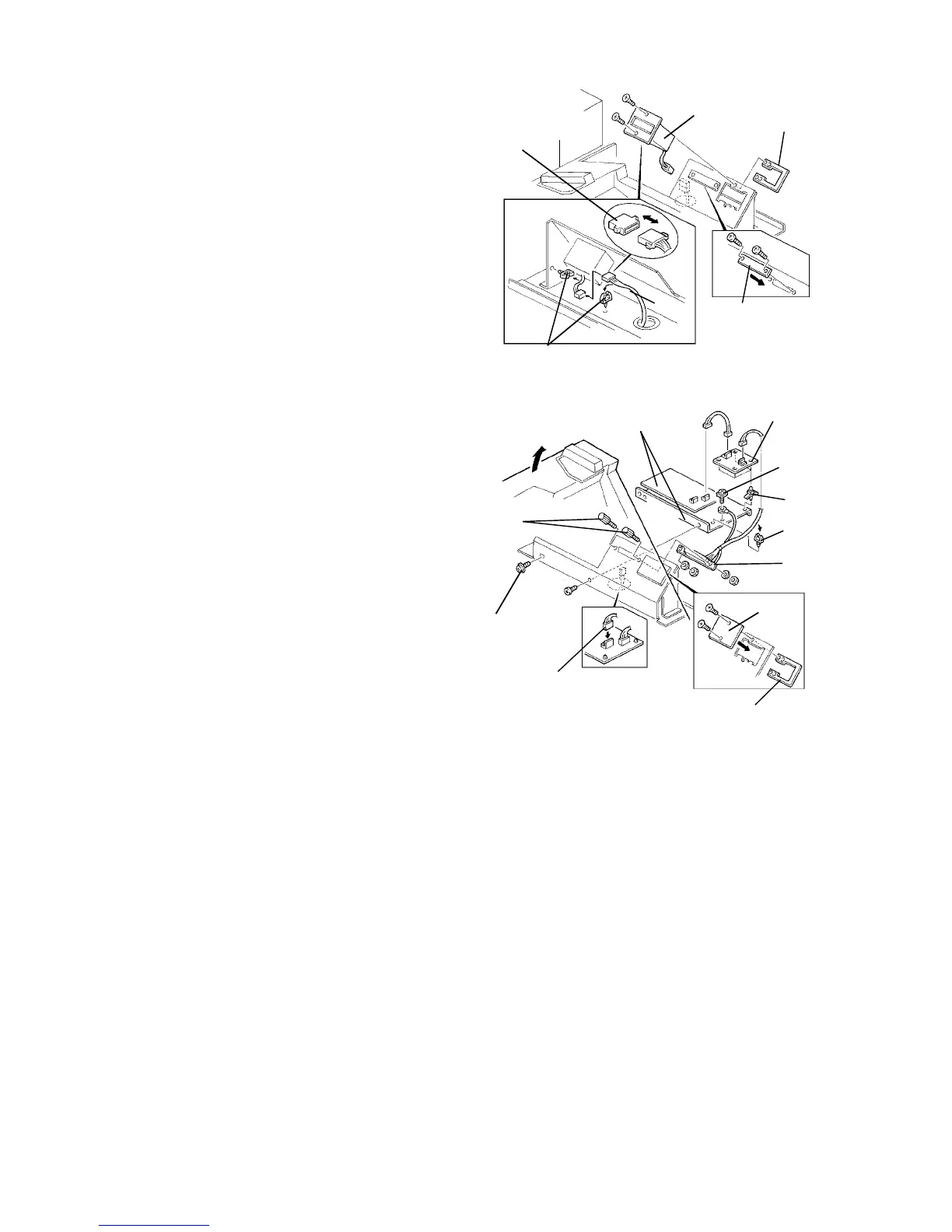

6. If an optional key counter is installed, install the
key counter receptacle with the two M3x8 philips
sunken head screws and key counter fixing plate
(accessories).
NOTE
The key counter must be one of the following:
- Hengstler (For the European version machine only)
- Hecon
- Veeder Root
7. Remove the shorting connector, then connect the
connectors from the key counter and copier.
8. Install the two wire clamps (accessories) and
clamp the harness as shown.
9. If the optional printer connector unit is not
installed, install the printer connector hole blind
cover with the two M3x6 philips plated screws (all
are accessories).
10. If the optional printer connector unit is
installed, install it with the grounding screw and
M4x8 philips plated screw (accessories).
11. Connect the connector of the harness form the
copier to the PCB on the printer connector unit.
12. Install the 4 nylon studs, then the printer interface
board. Connect the connector of the harness from
the printer connector unit to the interface board.
13. Install the printer harness with the two connector
joint studs.
NOTE
The printer interface board (P/N A112 5060), printer
harness (P/N A531 5420), 2 connector joint studs
(2 x P/N 1102 4039), and 4 nylon studs (4 x P/N
1105 0193), which are copier accessories, are
required for the printer connector unit installation.
14. Connect the other end of the printer harness to the
connector on the printer interface board.
15. Fix the grounding wire with the grounding screw
(accessory). Then, install the wire clamp
(accessory) then clamp the printer harness with
the clamp as shown.
16. 1If an optional key counter is not installed, install
the key counter hole blind cover with the two M3x8
philips sunken head screws and key counter fixing
plate (accessories).
Grounding
screw
Optional printer
connector unit
Grounding
screw
Nylon
studs
Wire
clamp
Blind cover
Fixing
plate
Connector
Printer
harness
Connector
joint studs
Printer interface
board
Key
counter
receptacle
Key counter
fixing plate
[E]
Wire clamp
Blind cover
Shorting
connector
To Next Page
