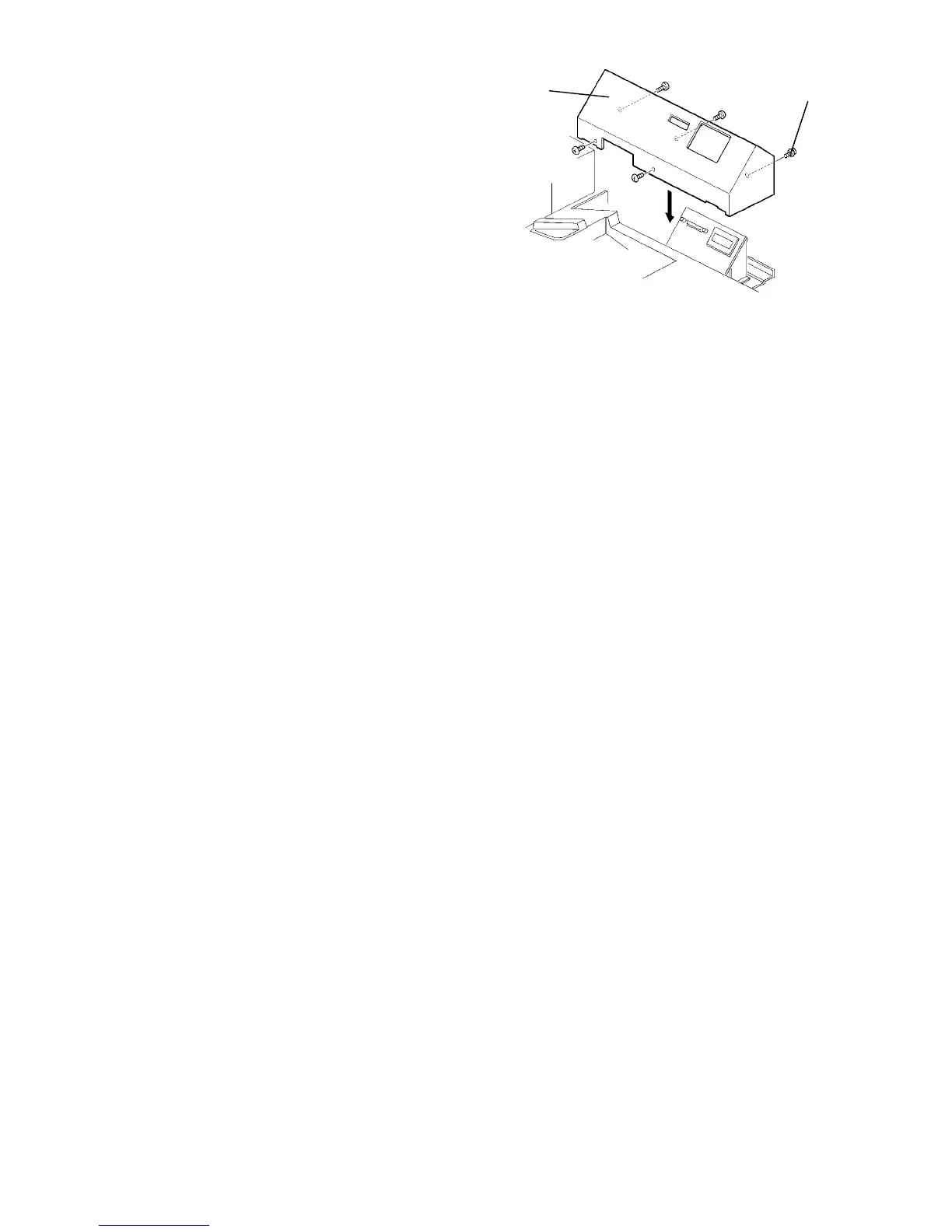

17. Install the key counter/printer connector bracket
cover [A] with the grounding screw [B] and the 4
M4x8 philips plated screws (accessories).
NOTE
If the optional printer connector is installed, a printer
with a standard RS232C interface is required. Use
a printer with the following functions:
Mode: Asynchronous
Data format: Start/Stop/Data: 1 bit each
Data bit length: 8 bits
Parity permission: With
Parity setting: Even parity
Baud rate setting: 1,200 bps
Connector: 25 pins, D-connector
Bracket
cover
Grounding
screw
To Next Page
