Ricoh IM C2000 Series User Manual

DZW137

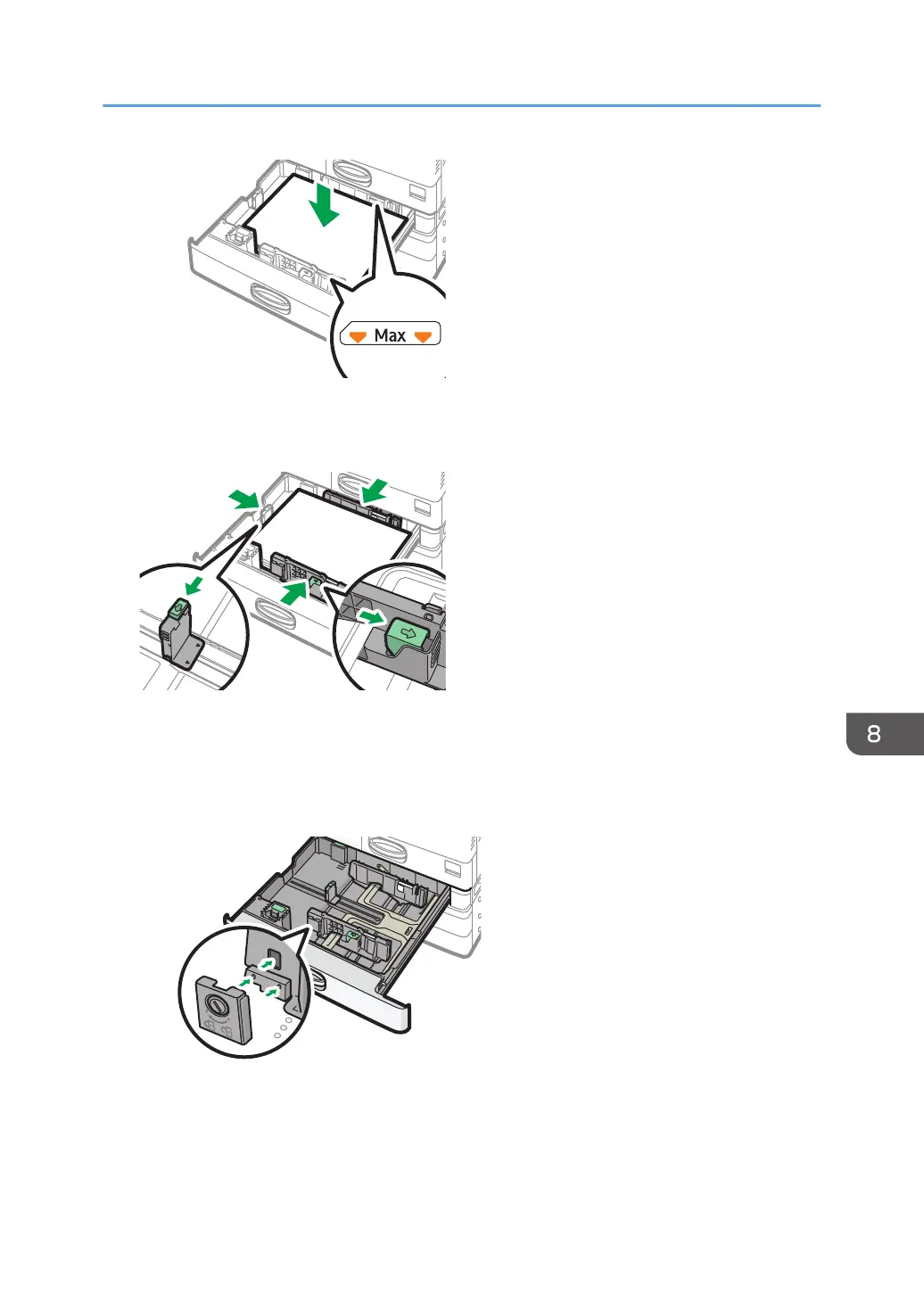

6. While pressing the release lever, adjust the side and end fences to the paper size.
Do not leave spaces between the paper and fences.
DZW138
To fix the end fence, engage the two projections of the stopper with the holes on the end fence,
and then tighten the fixing screw by rotating it 90 degrees clockwise with a coin or similar object.
• If you will not fix the end fence, put the stopper in the position as shown in the illustration, and
then rotate the fixing screw 90 degrees clockwise with a coin or similar object.
DZW184
7. Push the tray in the original position carefully.
To return the completely pulled out tray to the original position, push the tray straight in. If the paper
tray is damaged, it may cause a paper jam. Also, if you push the tray forcibly, the side fence of the
tray may be moved.
Loading Paper into the Paper Tray
183

Ricoh IM C2000 Series Specifications

General

Print Resolution	1200 x 1200 dpi
Maximum Paper Capacity	2, 300 sheets
Duplex Printing	Yes
Standard Memory	2 GB
Power Consumption (Maximum)	1.3 kW
Copy Speed (Color)	20 cpm
Copy Speed (Mono)	20 cpm
Copy Resolution	600 x 600 dpi
Print Speed	20 ppm
Scan Resolution	600 dpi
Connectivity	USB, Ethernet, Wi-Fi
First Print Time (Color)	7.5 seconds or less
Supported Paper Sizes	A3, A4, A5, B4, B5
Paper Weight	52 - 300 gsm
Hard Disk Drive	320 GB
Power Source	50/60Hz
Fax Resolution	200 x 200 dpi
