Ricoh M065 - Laser Unit Fan; When Installing the Laser Unit Fan

Laser Optics
M065/M066 4-18 SM
 First do SP2-111-003.
 Then do SP2-111-001.
 To check if SP 2-111-001 was successful, watch the screen during the process. A
message is displayed at the end. Also, you can check the result with SP 2-194-010
to -012.
8. Exit the SP mode.
4.4.3 LASER UNIT FAN
 If the optional tray heater is installed in the machine, the HVPS: CB bracket may
be still hot. Wait until the HVPS: CB bracket cools before doing this procedure.
1. Rear cover (
p.4-5)
2. Right cover (
p.4-4)
3. Controller box (
p.4-143)
4. HVPS: CB bracket (
p.4-148 "HVPS: CB Board")

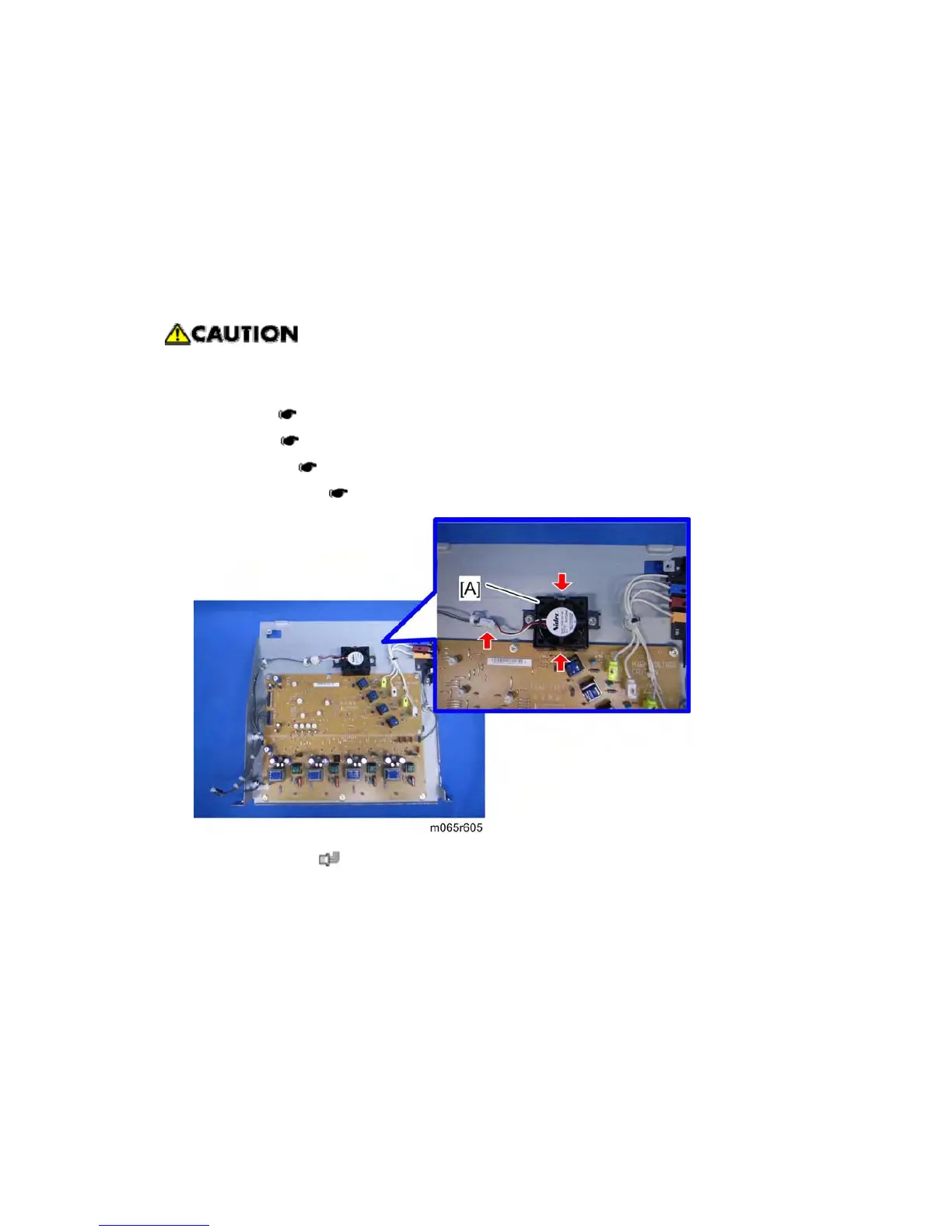

5. Laser unit fan [A] (
x 1, hooks)
When installing the laser unit fan
Make sure that the laser unit fan is installed with its decal facing upward.
