Image Creation
M065/M066 4-20 SM
4.5 IMAGE CREATION
4.5.1 PCDU (PHOTO CONDUCTOR AND DEVELOPMENT UNIT)
 Do not touch the OPC drum. Do not let metal objects touch the development
sleeve.

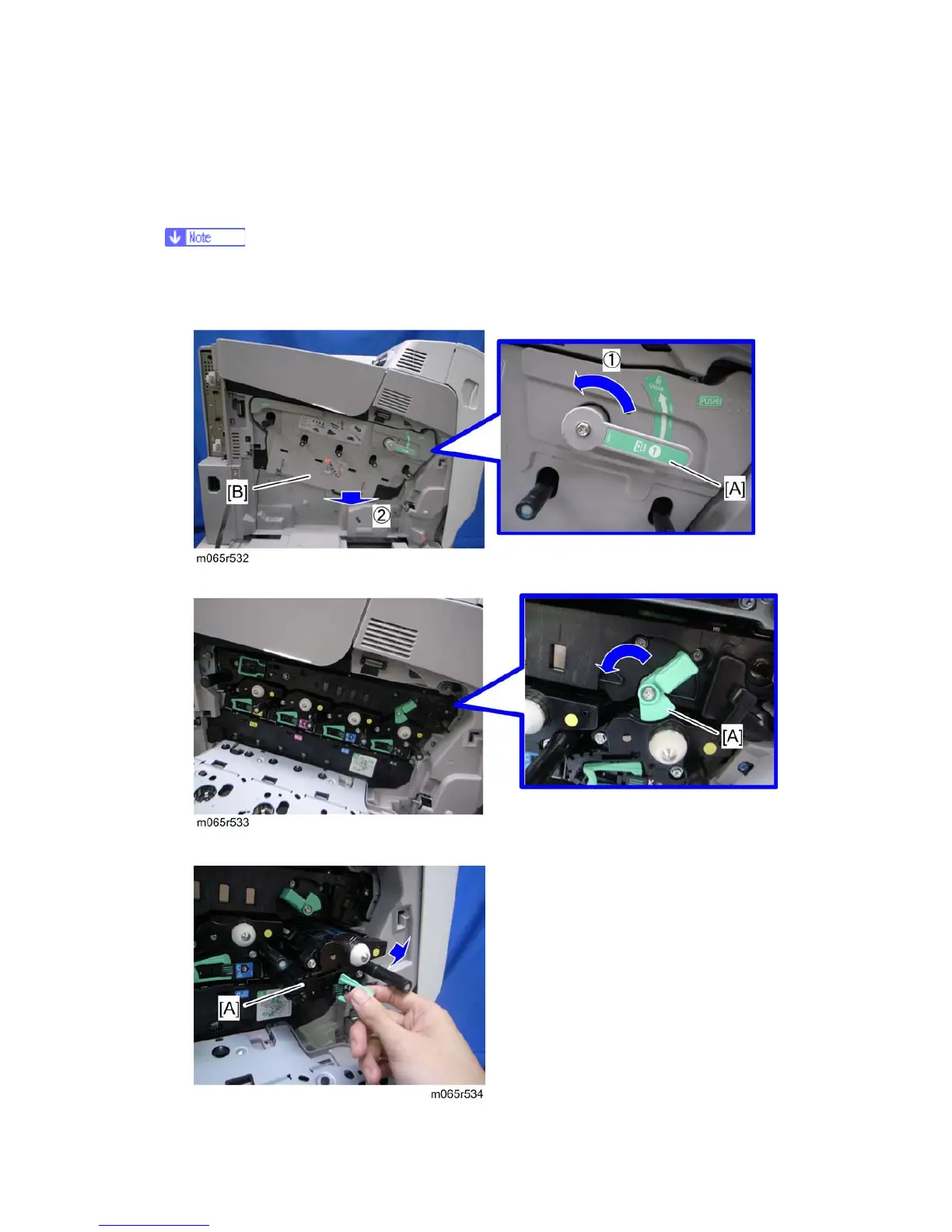

1. Open the left cover.
2. Turn the lock lever [A] counterclockwise, and then open the drum securing plate [B].
3. Turn the ITB lock lever [A] counterclockwise (this step is only needed if you remove the
PCDU: K).
4. PCDU [A]
