Fusing
M065/M066 4-84 SM

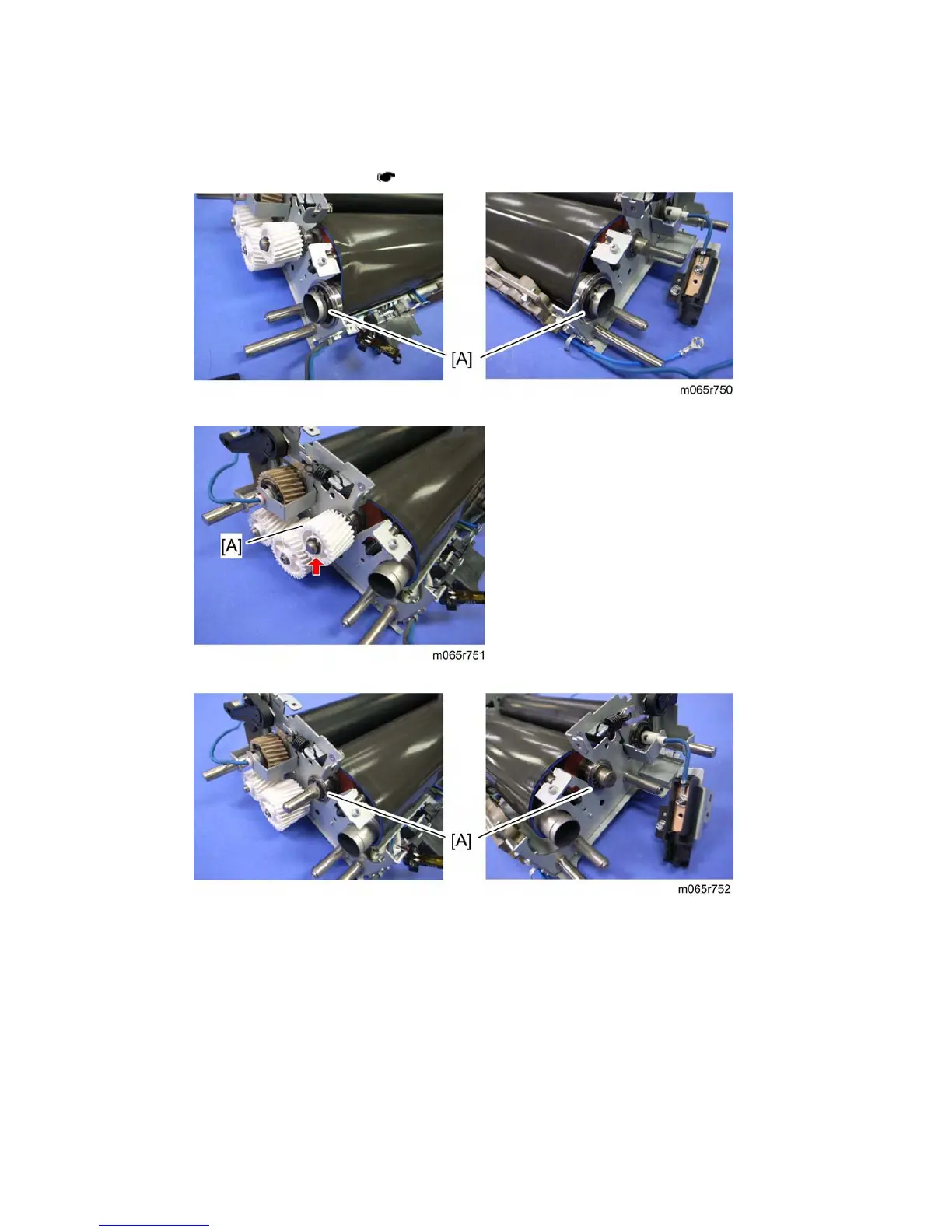

4.9.6 FUSING BELT
1. Heating roller fusing lamp ( p.4-80)
2. C-rings and bearings [A]
3. Gear [A] at the left side (C-ring x 1).
4. C-rings and bearings [A]
