Drive Unit
SM 4-61 M065/M066
Replacement
and
Adjustment
When installing the gear unit

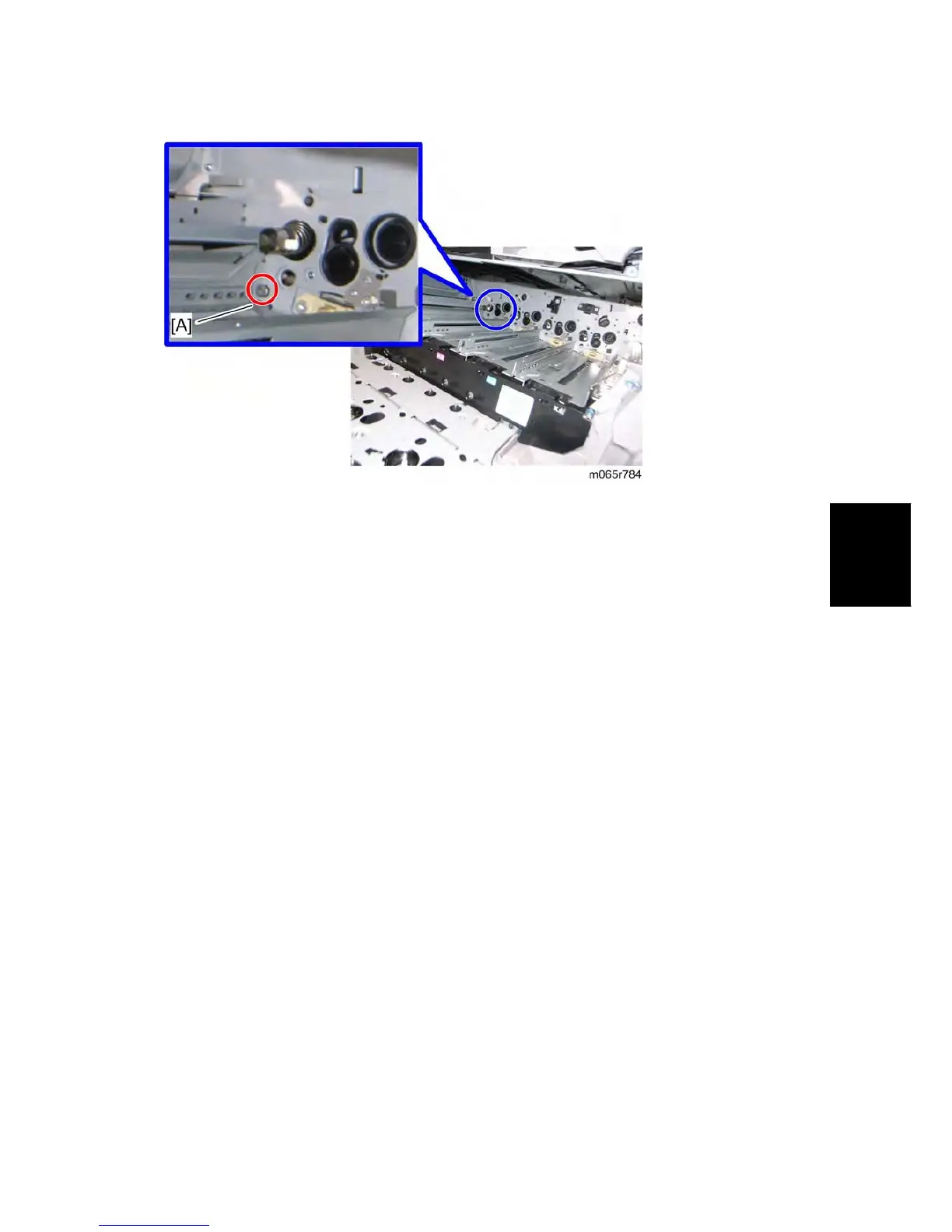

Make sure that the positioning pin [A] is set correctly when installing the gear unit.
