Fusing
M065/M066 4-74 SM
4.9 FUSING
4.9.1 FUSING UNIT
 Turn off the main switch and wait until the fusing unit cools down before beginning
any of the procedures in this section. The fusing unit can cause serious burns.

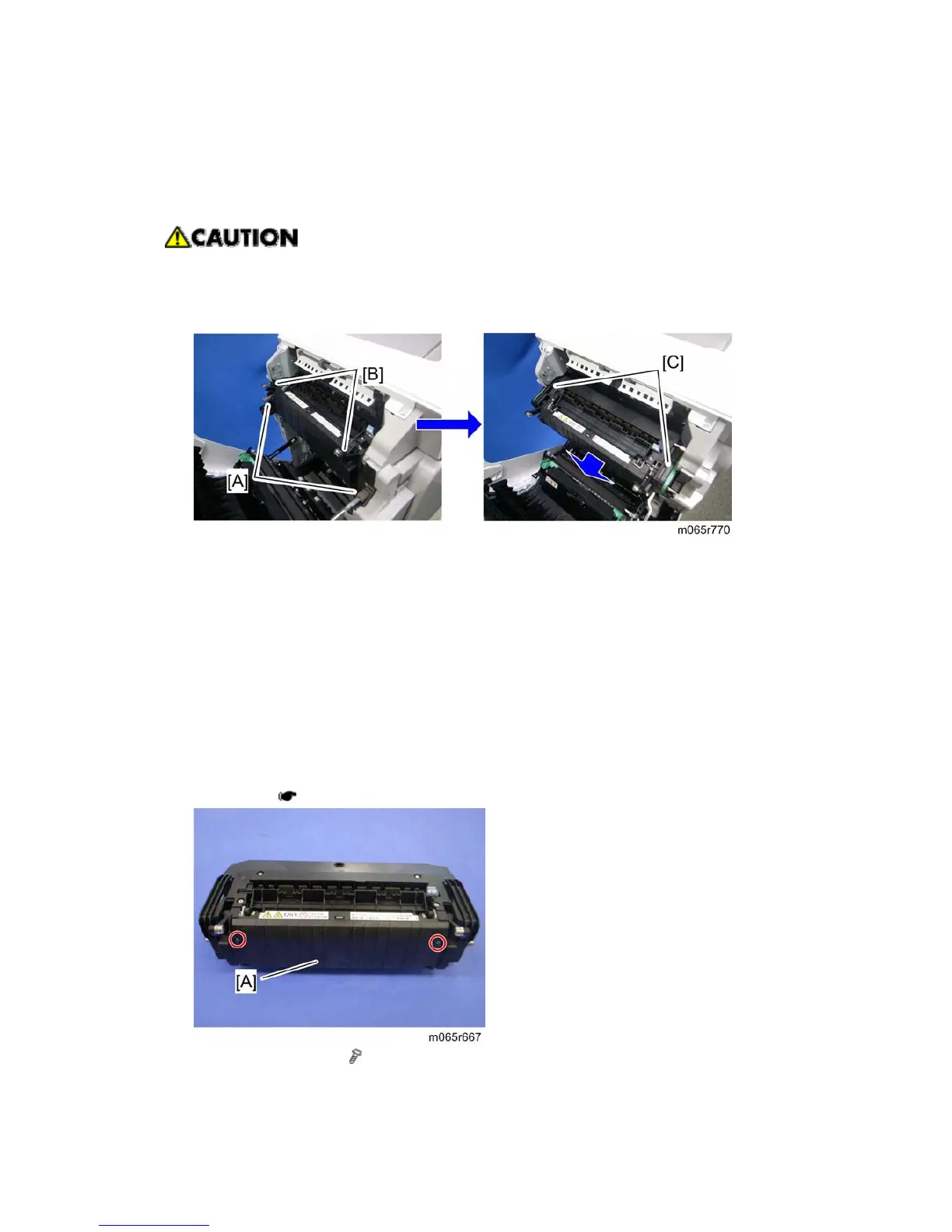

1. Open the duplex unit.
2. Release the lock levers [A].
3. Pull out the pressure levers [B] a short distance.
4. Hold the fusing unit handles [C], and then pull out the fusing unit.
When installing the fusing unit
Make sure that the both lock levers [A] are locked before closing the duplex unit. Otherwise,
these lock levers [A] can be broken.
4.9.2 CLEANING UNIT
1. Fusing unit ( p.4-74)
2. Fusing front cover [A] (
x 2)
