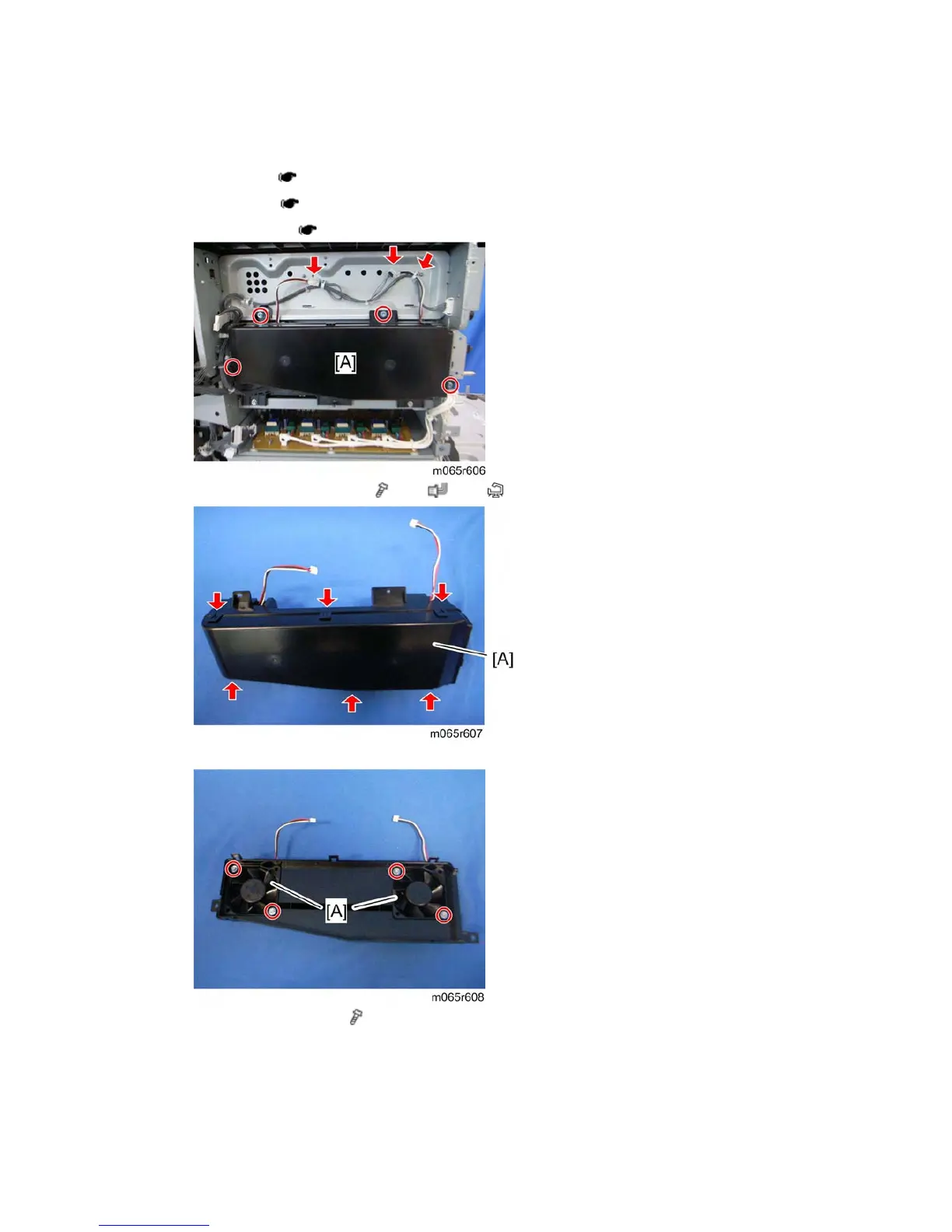

4.5.10 DEVELOPMENT FAN
1. Rear cover ( p.4-5)
2. Right cover (
p.4-4)
3. Controller box (
p.4-143)
4. Development fan duct [A] ( x 4, x 2, x 1)
5. Development fan duct cover [A] (6 hooks)
6. Development fans [A] ( x 2 each)
