Drive Unit
SM 4-63 M065/M066
Replacement
and
Adjustment
4.8.3 DRUM MOTOR: CMY
1. Right cover ( p.4-4)
2. Toner supply fan base (
p.4-62 "Toner Supply Fan")

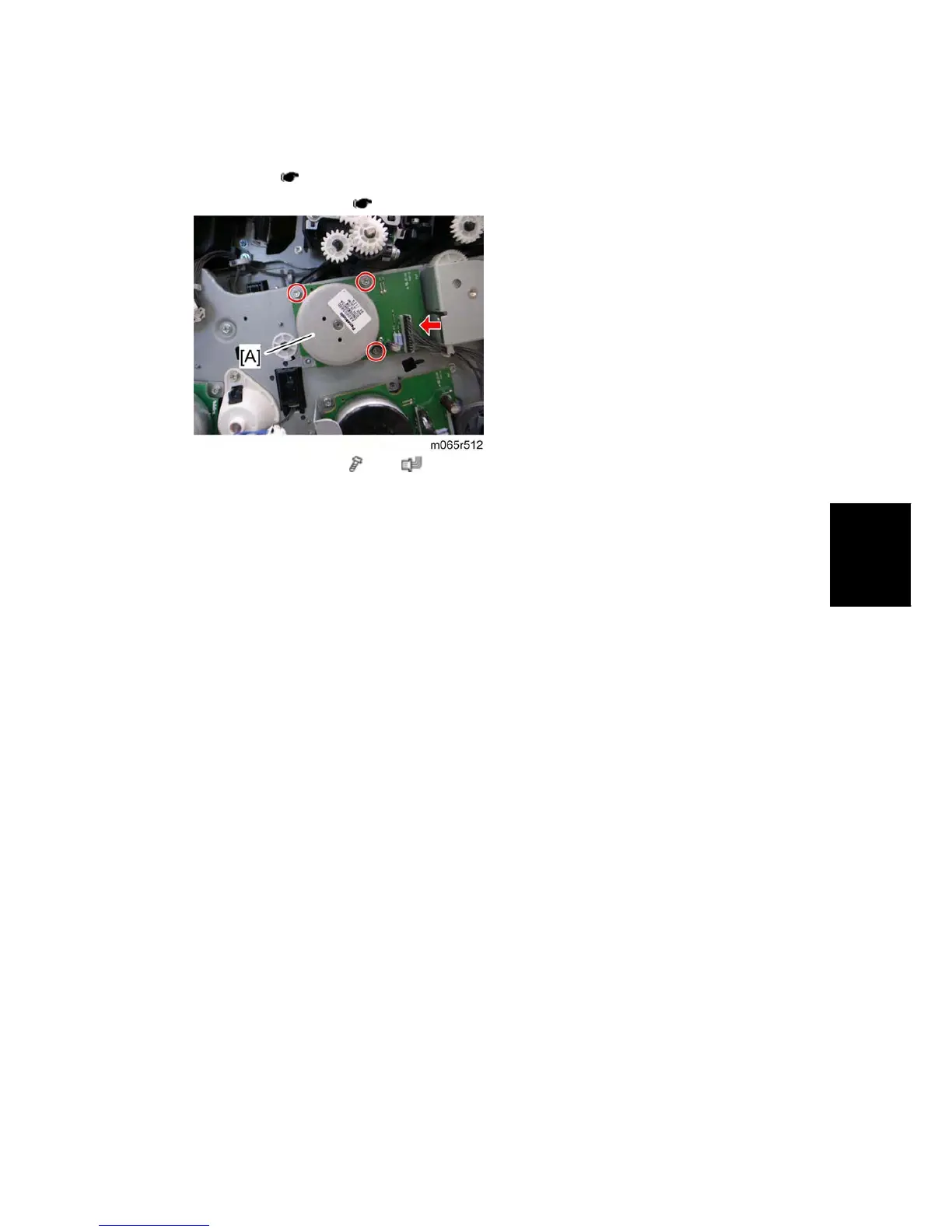

3. Drum motor: CMY [A] (
x 3, x 1)
