Ricoh M065 - Hdd

Electrical Components
M065/M066 4-136 SM

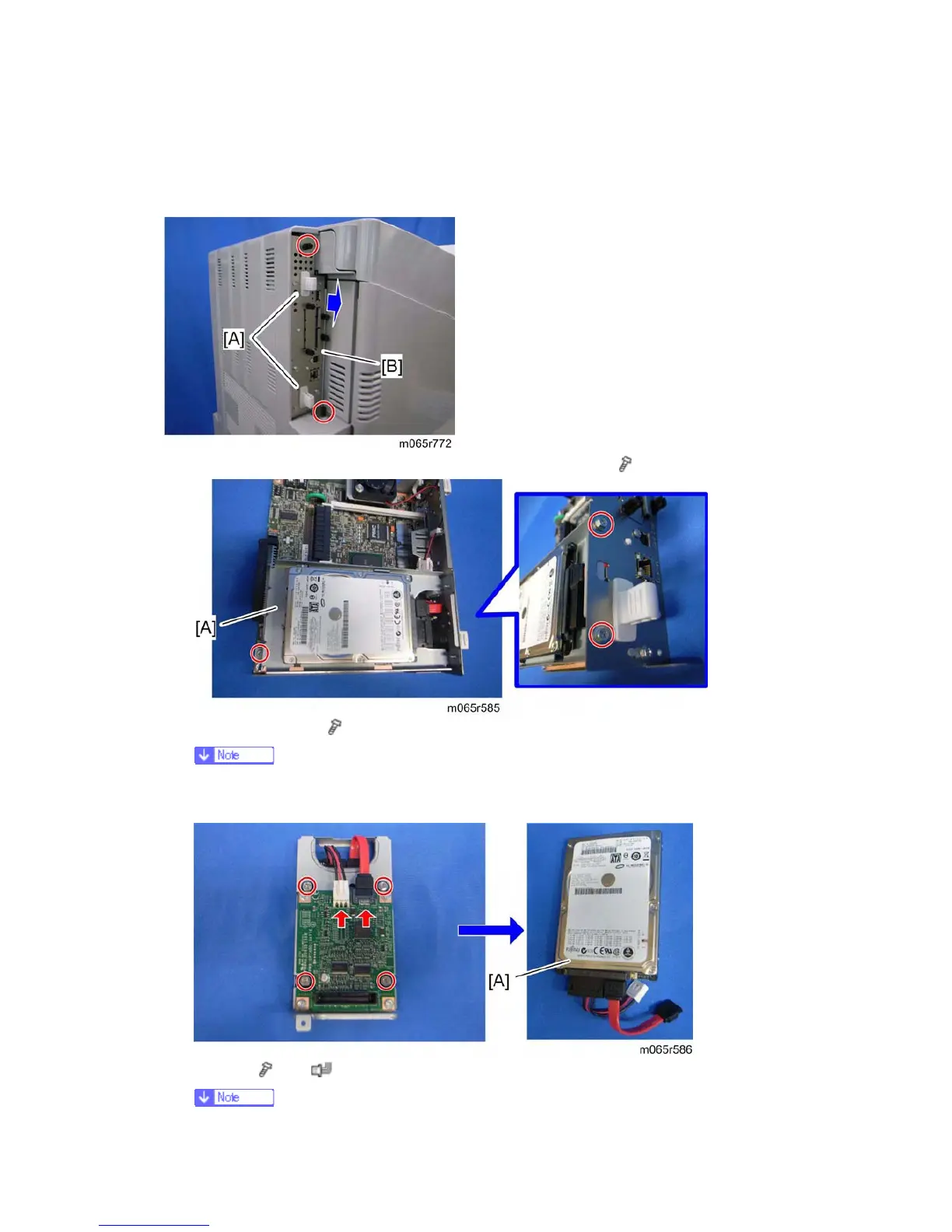

4.13.2 HDD
M065: Optional, M066: Standard
1. Grasp the handles [A], and then pull out the controller unit [B] (
x 2).
2. HDD assembly [A] (
x 3).
 The screws shown above are used for the M066 (HDD is standard). The
screws for the M065 (HDD is optional) are knob screws.
3. HDD [A] (
x 4, x 2).
