Ricoh M065 - Motors with Bracket

Drive Unit
M065/M066 4-68 SM

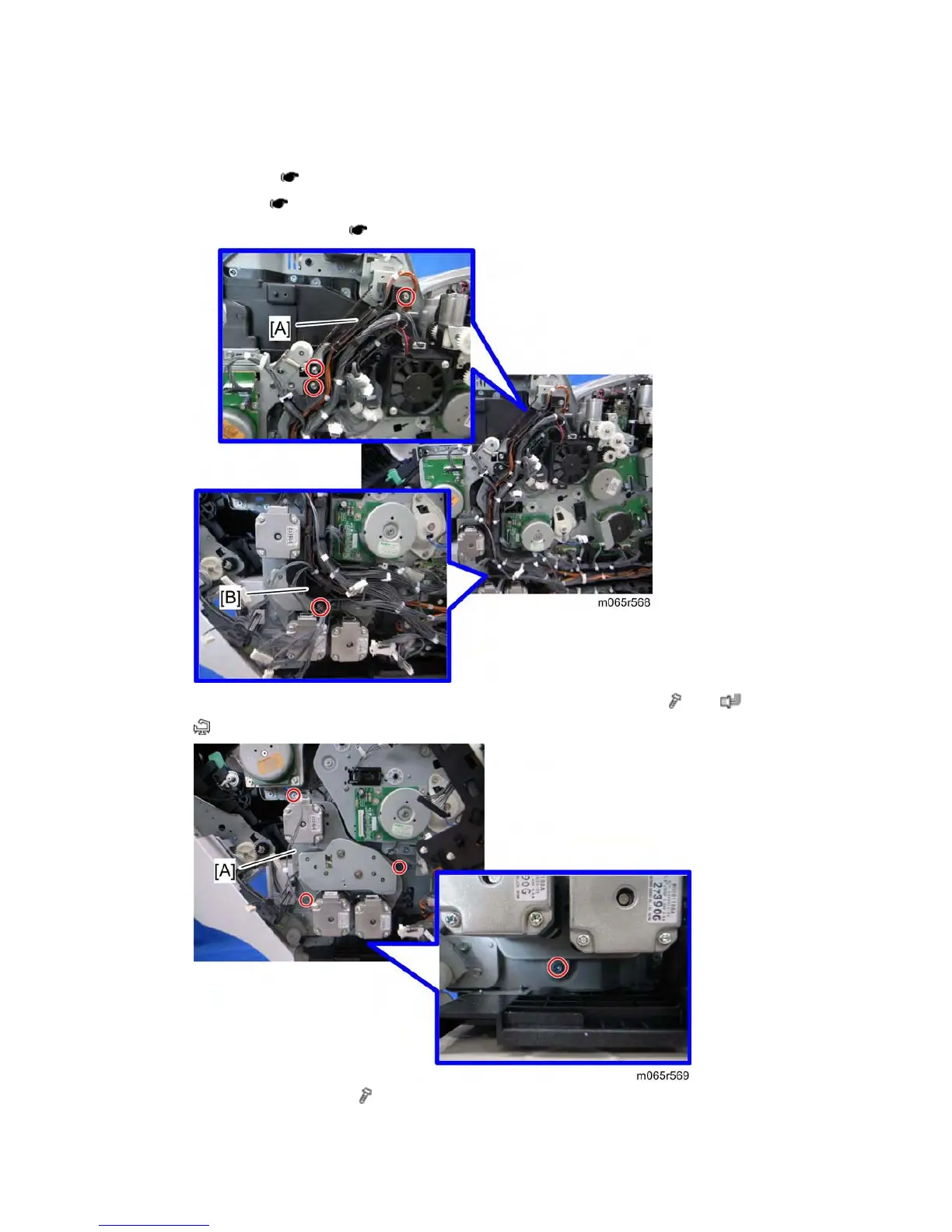

4.8.9 MOTORS WITH BRACKET
1. Right cover ( p.4-4)
2. Top cover (
p.4-6)
3. Inner right front cover (
p.4-12)
4. Release the upper harness guide [A] and the lower harness guide [B] (
x 4, x all,
x all)
5. Motors with bracket [A] ( x 4)
