1.3 OVERVIEW

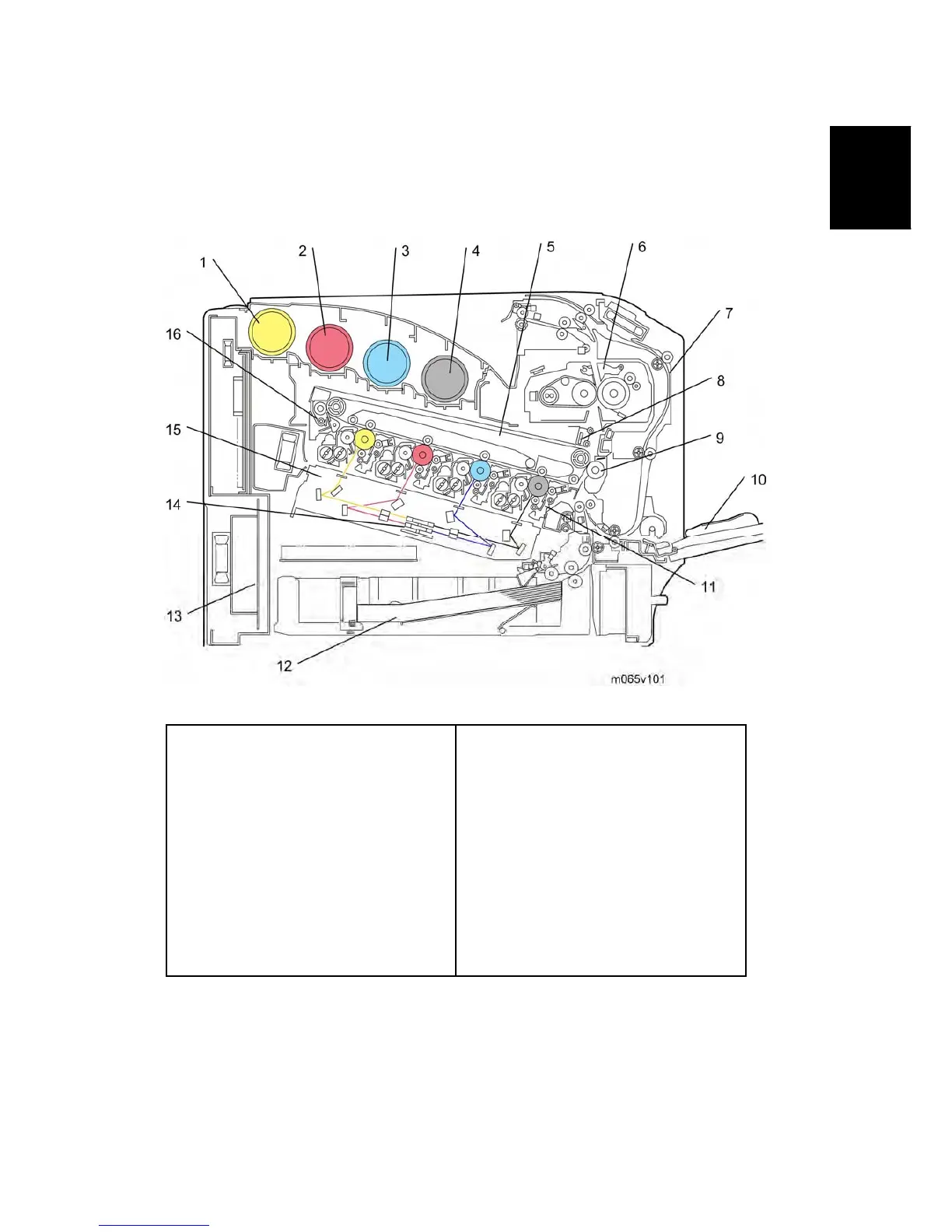

1.3.1 MECHANICAL COMPONENT LAYOUT
1. Toner Bottle [Y]
2. Toner Bottle [M]
3. Toner Bottle [C]
4. Toner Bottle [K]
5. ITB (Image Transfer Belt) Unit
6. Fusing Unit
7. Duplex Unit
8. ID Sensor
9. PTR (Paper Transfer Roller)
10. By-pass Tray
11. PCDU (Photo Conductor
Development Unit)
12. Standard Paper Feed Tray (Tray 1)
13. PSU (Power Supply Unit)
14. Polygon Mirror Motor
15. LDU
16. ITB (Image Transfer Belt) Cleaning
Unit
