PCDU Section
SM 4-32 D245/D246/D247

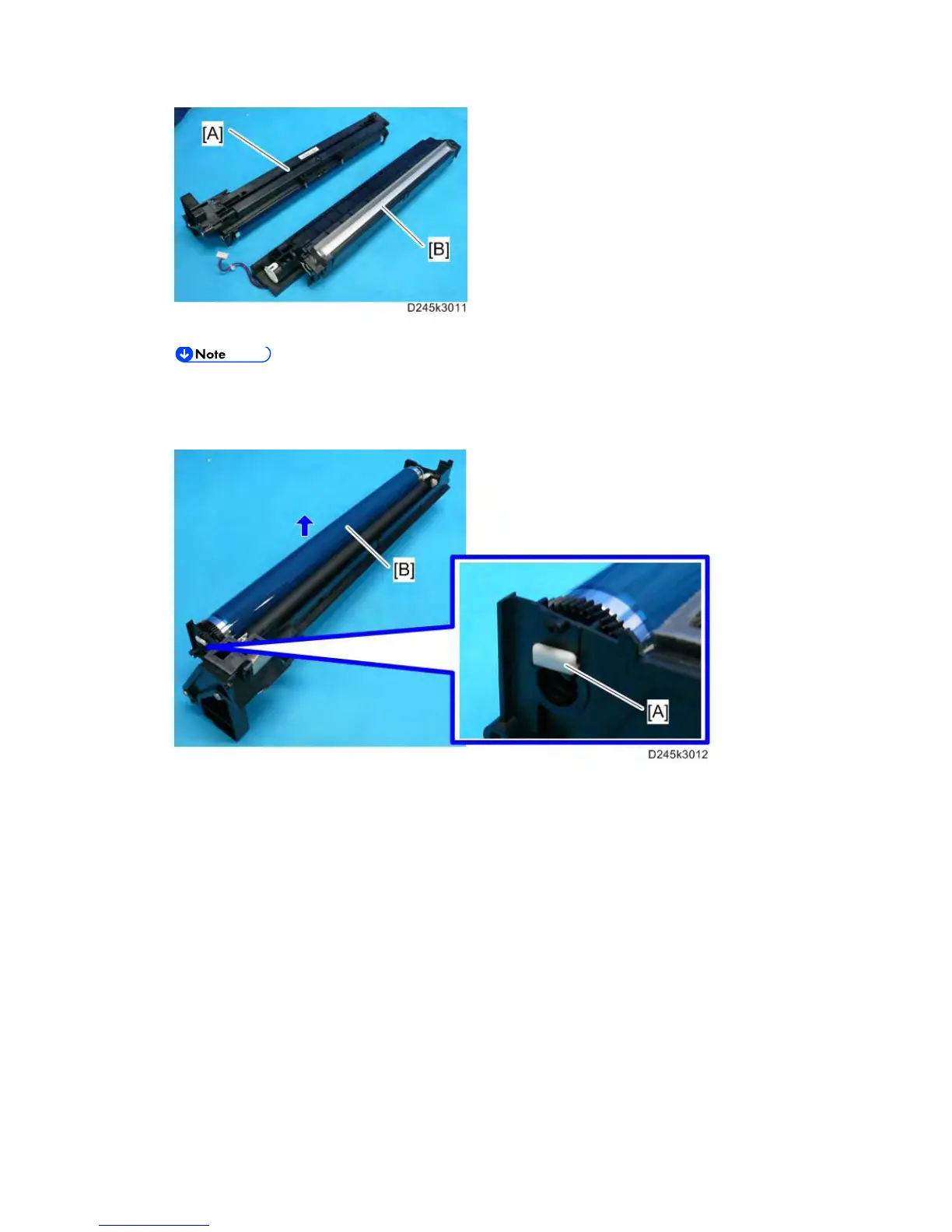

5. Pry out the drum retaining clip [A].
 Install the clip in the same orientation (with the lip facing away from the drum shaft)
when you reassemble.
6. OPC drum [B]
7. When reassembling, adjust the image quality (page 4-37).
