Paper Feed Unit PB2020
SM 2-12 D245/D246/D247
2.3 PAPER FEED UNIT PB2020

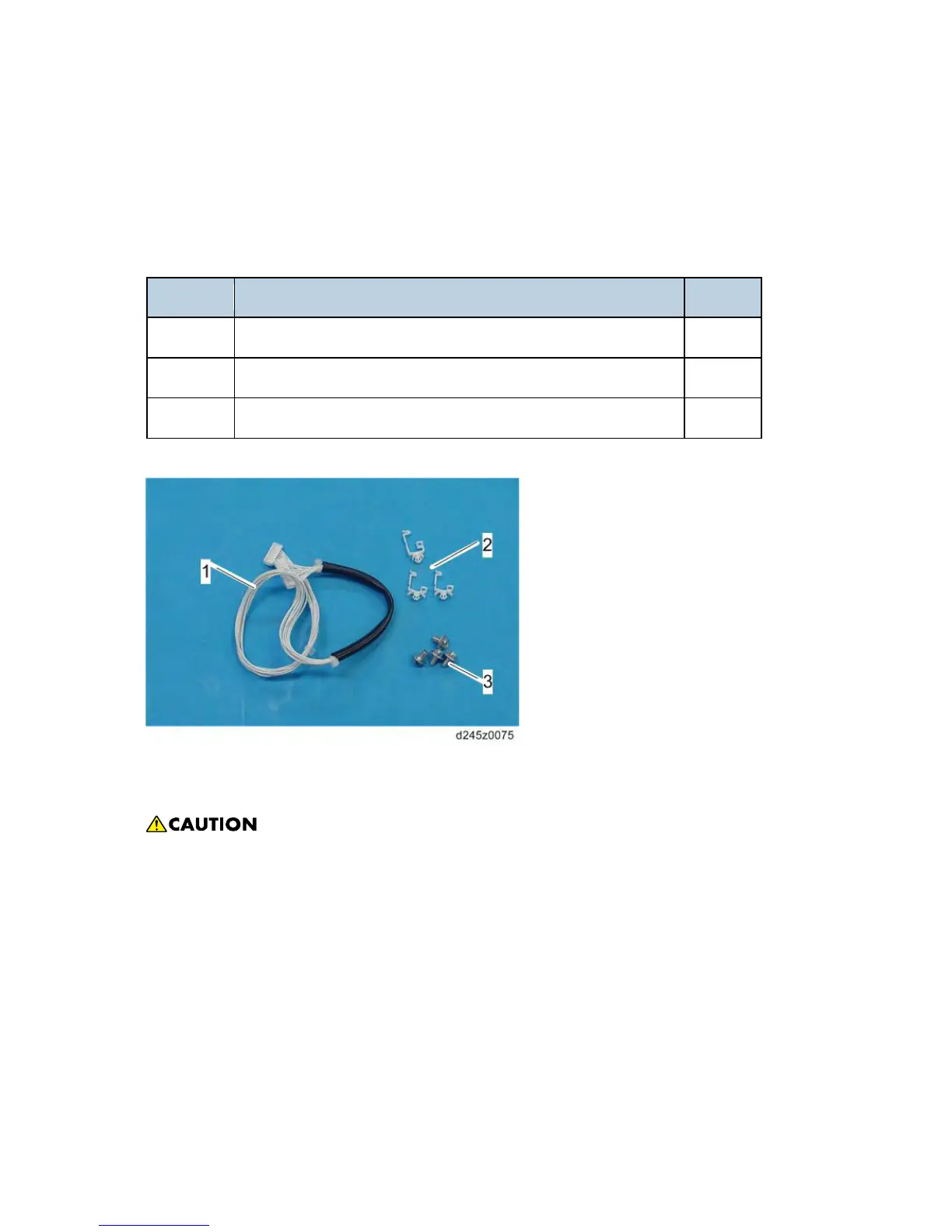

2.3.1 ACCESSORY CHECK
Check the quantity and condition of the accessories against the following list.
No. Description Q’ty
1 Relay harness 1
2 Clamp 3
3 Screw 4
2.3.2 INSTALLATION PROCEDURE
Turn off the main switch of the copier and unplug the power cord before you start the
installation procedure.
You need two or more persons to lift the copier. The copier is highly unstable when lifted
by one person, and may cause human injury or property damage.
Do not lift the copier with the paper feed unit installed. The grips may be damaged.
