Ricoh MP 2014AD - Opc Drum; Pick-Off Pawls

PCDU Section
SM 4-31 D245/D246/D247
Replacement
and Adjustment

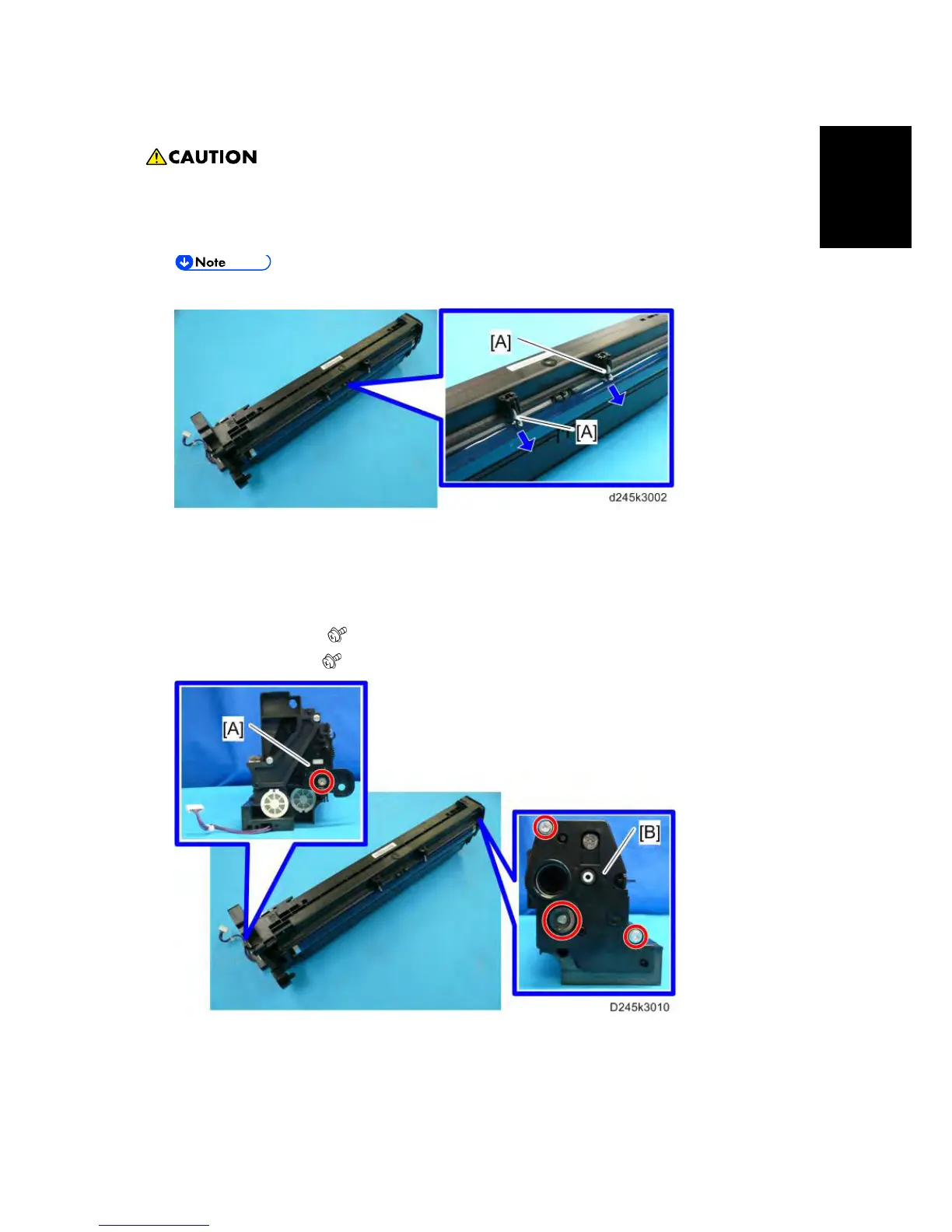

4.8.3 PICK-OFF PAWLS
 Do not turn the PCU upside down. This causes toner and developer to spill out.
1. PCDU (page 4-30)
2. Pawl [A]
 Pull down the pawl and release the bottom end.
3. After reinstalling the pick-off pawls, adjust the image quality (page 4-37).
4.8.4 OPC DRUM
1. PCDU (page 4-30)
2. Front side piece [A] (
x 1)
3. Rear side piece [B] (
x 2, 1 coupling)
4. Separate the PCU [A] from the development unit [B].
