Ricoh MP 2014AD - Transfer Guide Unit; Transfer Roller

Duplex Unit
SM 4-56 D245/D246/D247

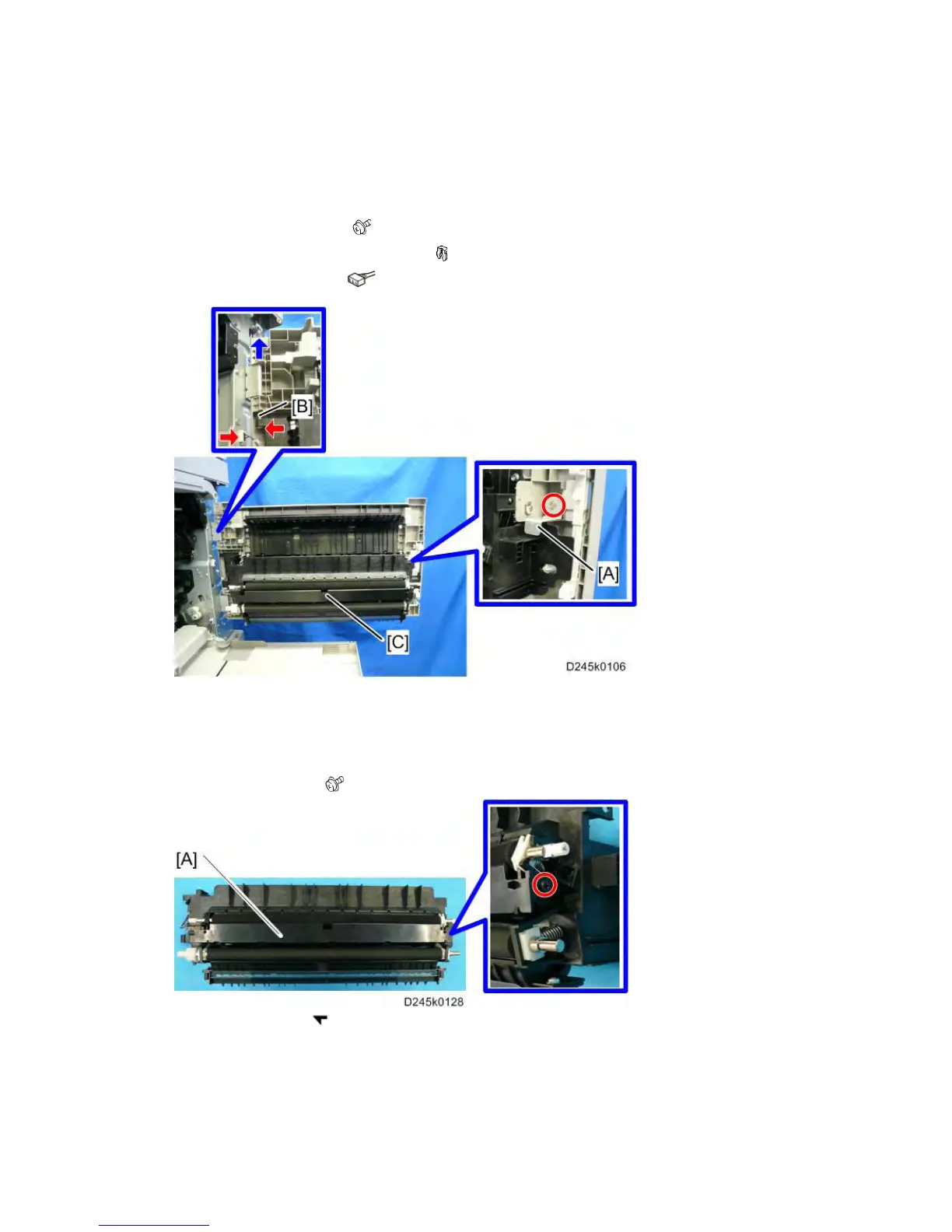

4.13.2 TRANSFER GUIDE UNIT
1. Right rear cover (page 4-5)
2. Open the right door.
3. Duplex unit bracket [A] (
x 1)
4. Slide the right door hinge shaft [B] (
x 1).
5. Transfer guide unit [C] (
x 1)
4.13.3 TRANSFER ROLLER
1. Transfer guide unit (page 4-56)
2. ID sensor cover [A] (
x 1)
3. Transfer roller [A] (
x 2 each side)
