Ricoh MP 2014AD - Paper Exit Tray; Rear Cover; Right Door

Exterior Covers
SM 4-6 D245/D246/D247

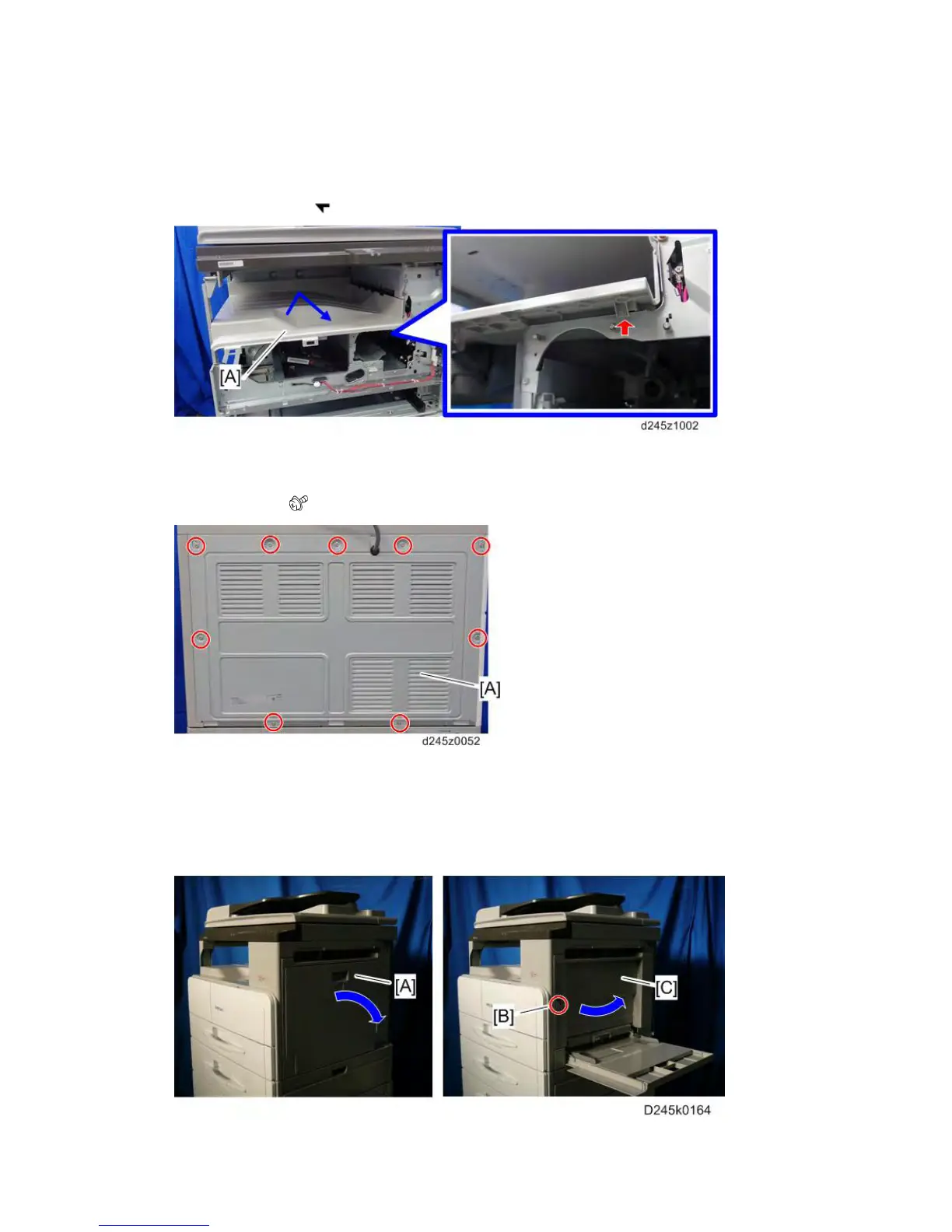

4.3.8 PAPER EXIT TRAY
1. Front left cover (page 4-2)
2. Left cover (page 4-5)
3. Paper exit tray [A] (
x1)
4.3.9 REAR COVER
1. Rear cover [A] ( x 9)
4.3.10 RIGHT DOOR
1. Right rear cover (page 4-5)
2. Open the by-pass tray [A], and then press the button [B] to open the right door [C].
